Removal

Switches and Harness

REMOVAL

BACK-UP LIGHT SWITCH & NEUTRAL POSITION SWITCH

1) Disconnect the ground cable from battery.
2) Remove the air intake chamber and intake boot. (Non-turbo model) 3) Remove the intercooler. (Turbo model)

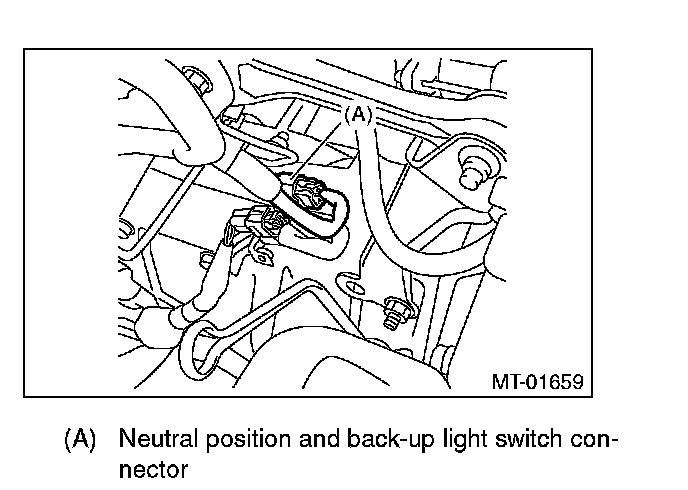

4) Disconnect the connector back-up light switch & neutral position switch.

^ Non-turbo model

^ Turbo model

5) Lift up the vehicle.

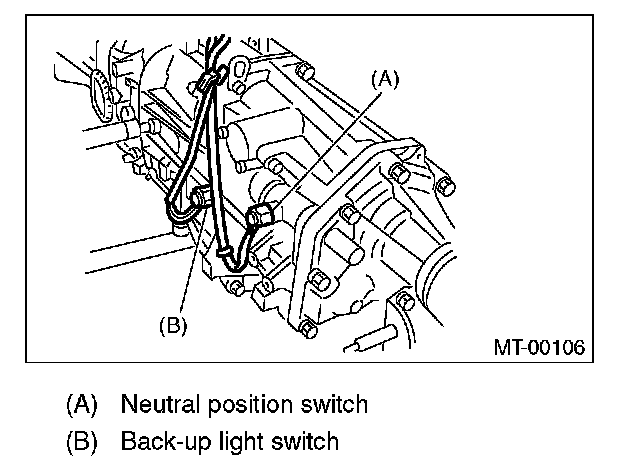

6) Remove the back-up light switch & neutral position switch with the harness.
