Collision Avoidance Module: Service and Repair
Rearview Camera Control UnitREMOVAL 1.
Disconnect the ground cable from the battery.
2.
Remove the left rear quarter lower trim.
3.

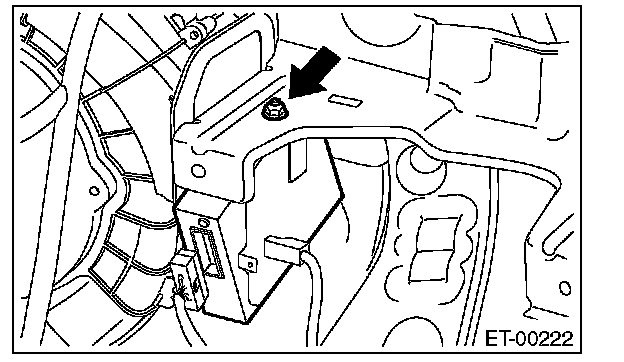

Remove the nut, disconnect the connector and remove the
control unit.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Make sure the maker position of the rear view camera after installation.
