Installation

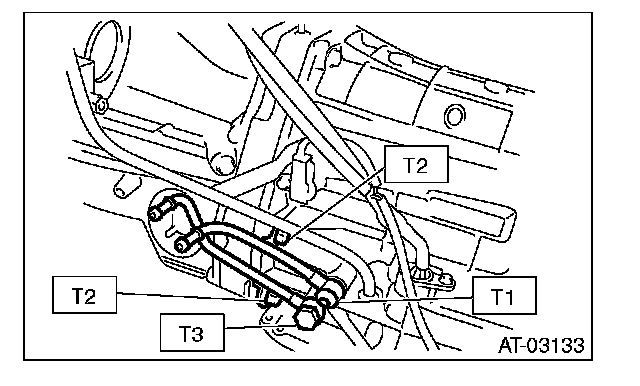

INSTALLATION1) Install the ATF inlet pipe and outlet pipe with new washers.
NOTE:
Use new bolts for the contact area of the converter case.
Tightening torque:
T1: 40 N-m (4.1 kgf-m, 29.5 ft-lb)
T2: 38 N-m (3.9 kgf-m, 28.0 ft-lb)
T3: 45 N-m (4.6 kgf-m, 33.2 ft-lb)

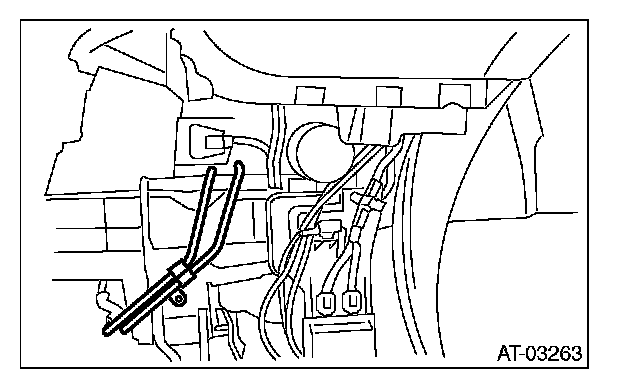

2) Install the ATF cooler pipe to frame.
3) Attach the bolts securing the ATF cooler pipe, and attach the ATF cooler hose.

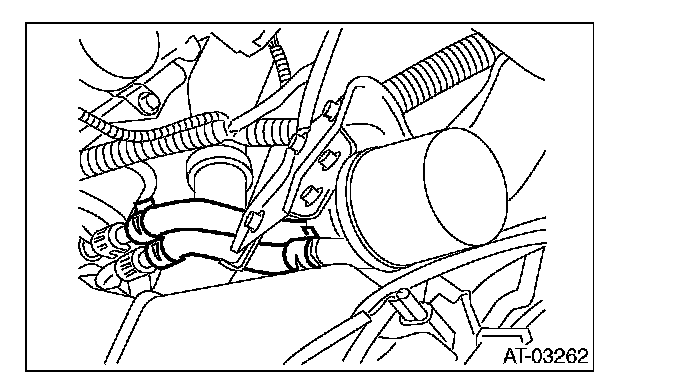

4) Attach the ATF filter inlet and outlet hoses.
5) Install the front bumper.
6) Connect the ATF cooler hose to the pipe on the transmission side.
NOTE:
^ Install so that the hose is not folded over, excessively bent or twisted.
^ Insert the hose to the specified position.

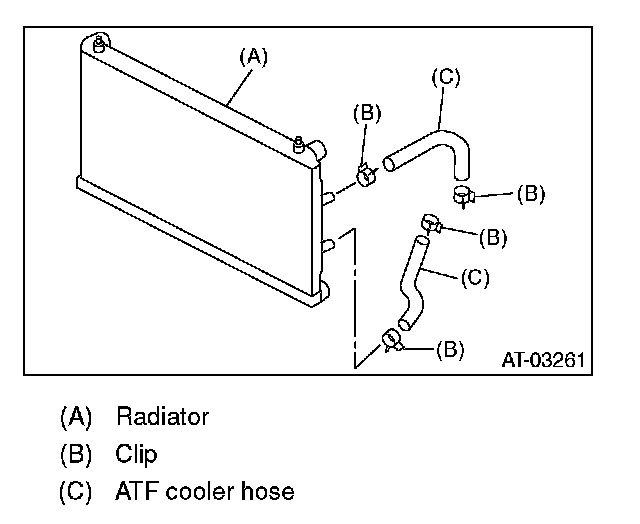

7) Connect the ATF cooler hose to the pipe on the radiator side.
NOTE:
^ Install so that the hose is not folded over, excessively bent or twisted.
^ Insert the hose to the specified position.
8) Install the under cover.
9) Fill ATF.
NOTE:
Make sure there are no ATF leaks in joints between the transmission, radiator, pipes, and hoses.
