Exhaust System
General Description
COMPONENT
FRONT
EXHAUST PIPE

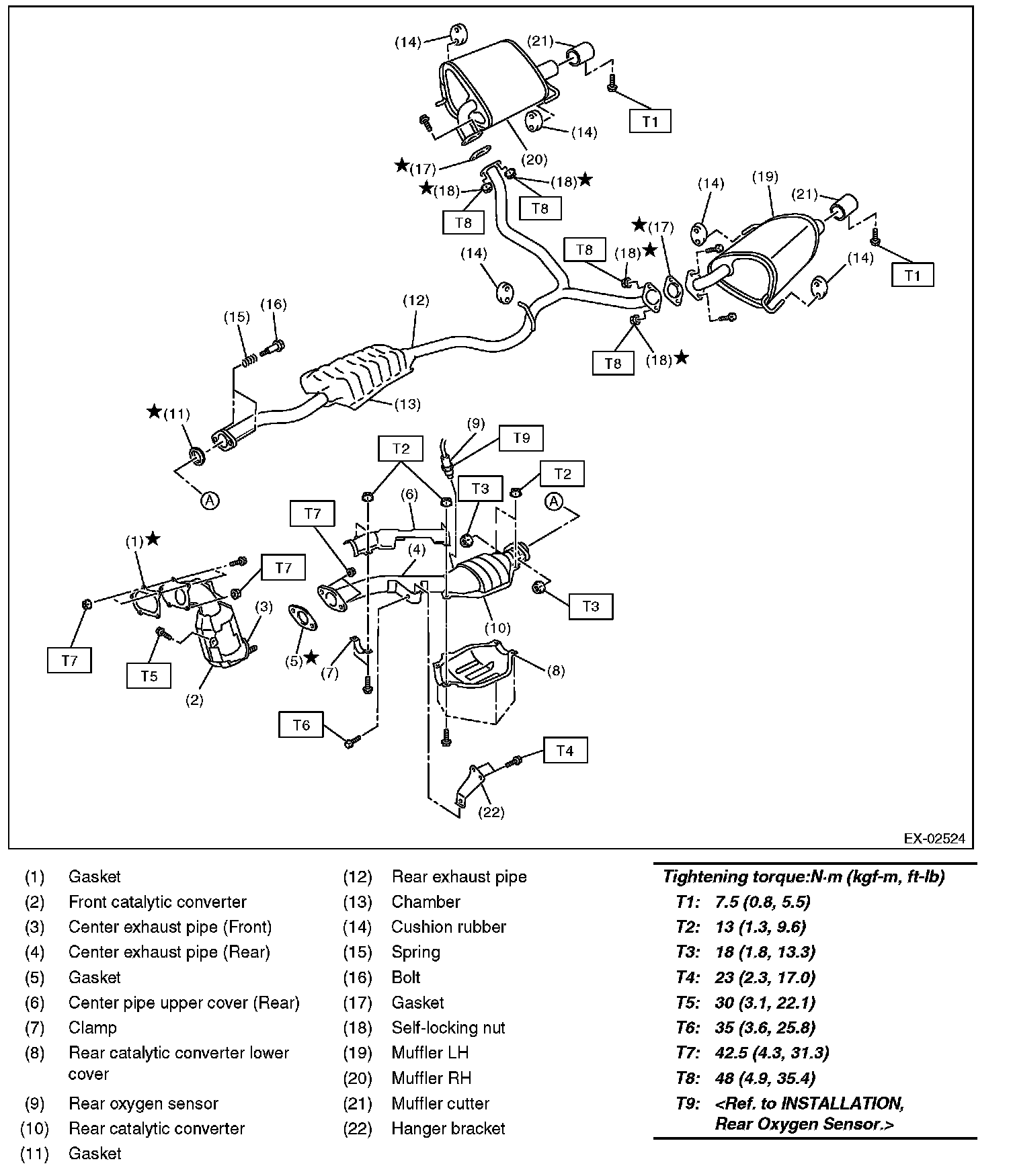

CENTER AND REAR
EXHAUST PIPE
, AND
MUFFLER
