Front Grille

FRONT GRILLE

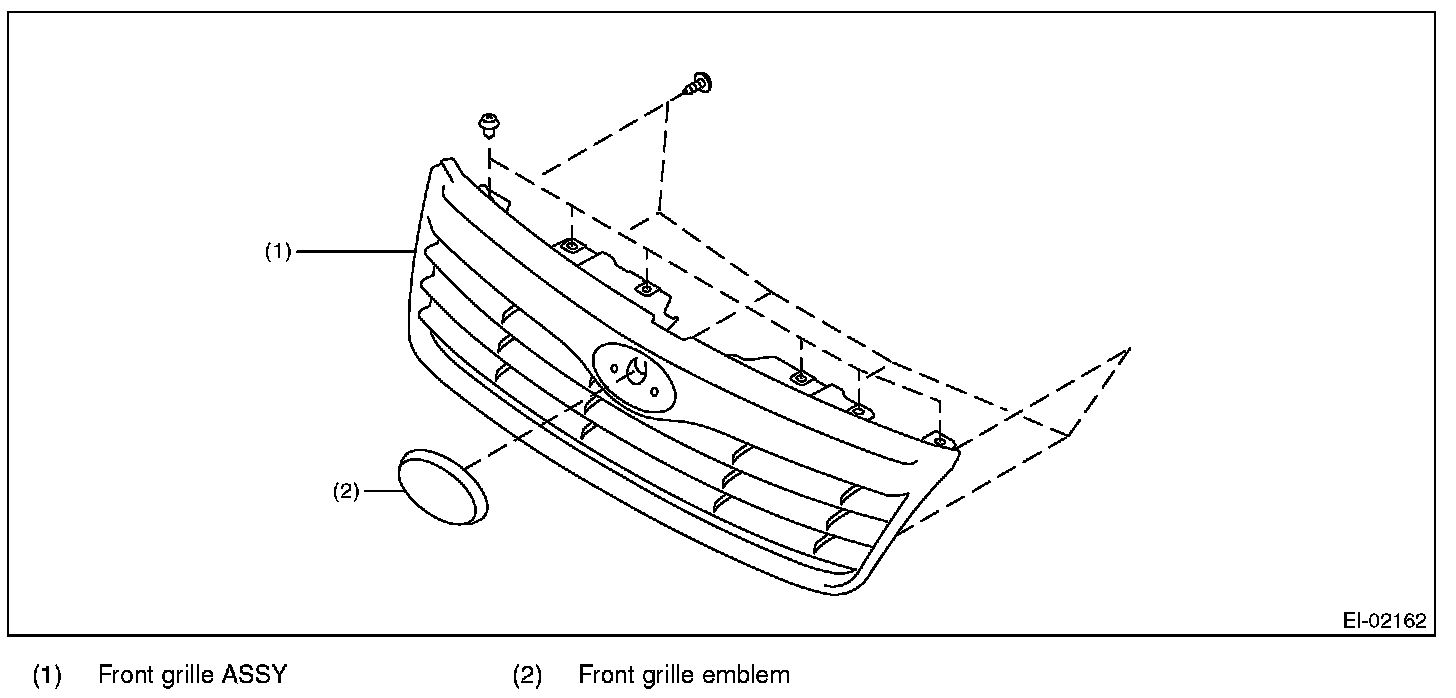

Front Grille:

REMOVAL
1. Remove the front bumper face.

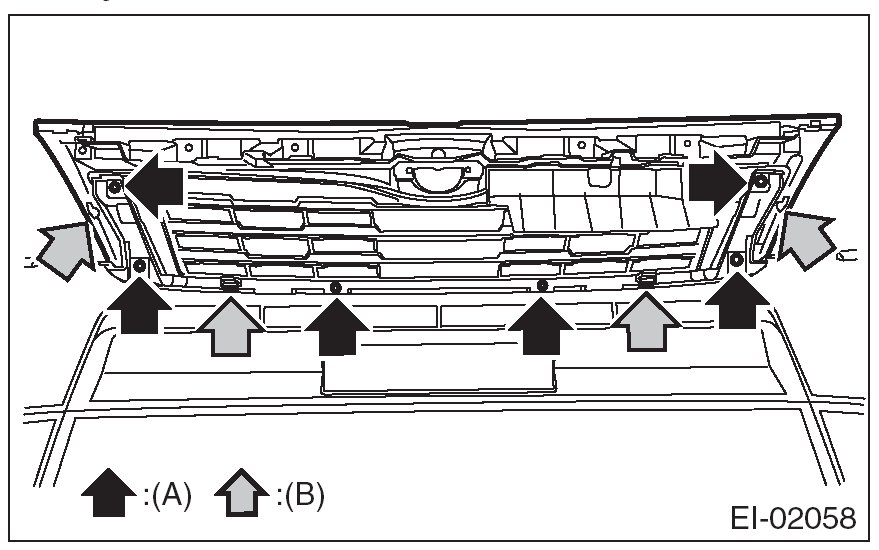

2. Remove the screws (A) from the backside of the bumper face.
3. Detach the tabs (B) and remove the front grille assembly.







INSTALLATION
Install in the reverse order of removal.
