Power Mirror Switch: Testing and Inspection

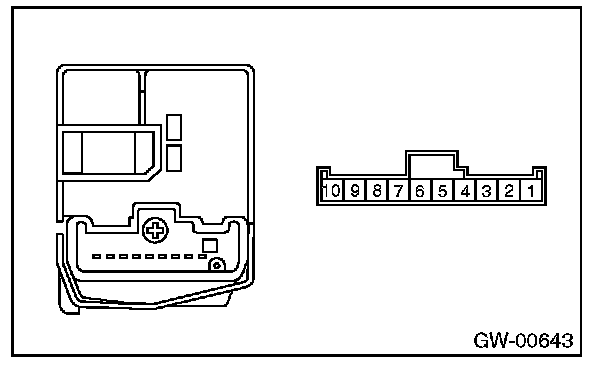

REMOTE CONTROL MIRROR SWITCHINSPECTION

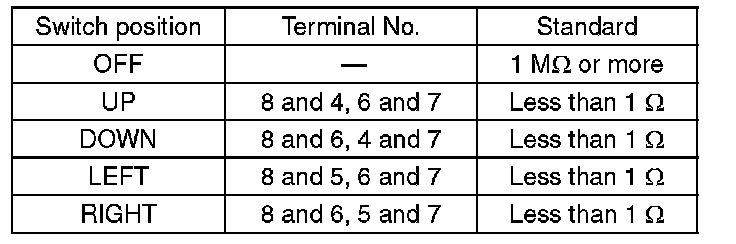

Move the remote control mirror switch to each position and check continuity between terminals.
- Switch the change over switch to the right side.
- Switch the change over switch to the left side.
Replace the remote control mirror switch if defective.
