Outer Mirror Assembly

OUTER MIRROR ASSEMBLY







REMOVAL
1. Remove the front door trim.
2. Disconnect the outer mirror connector.

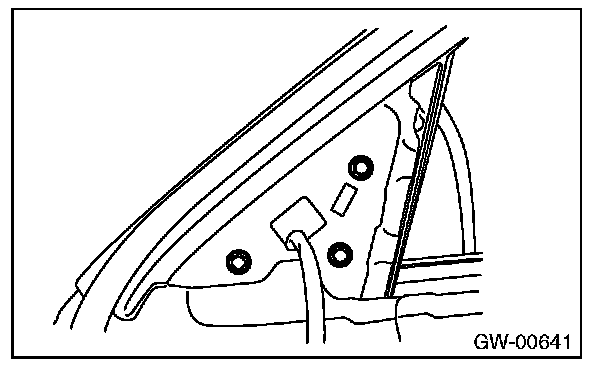

3. Remove the bolts, then remove the outer mirror assembly.







INSTALLATION
Install in the reverse order of removal.

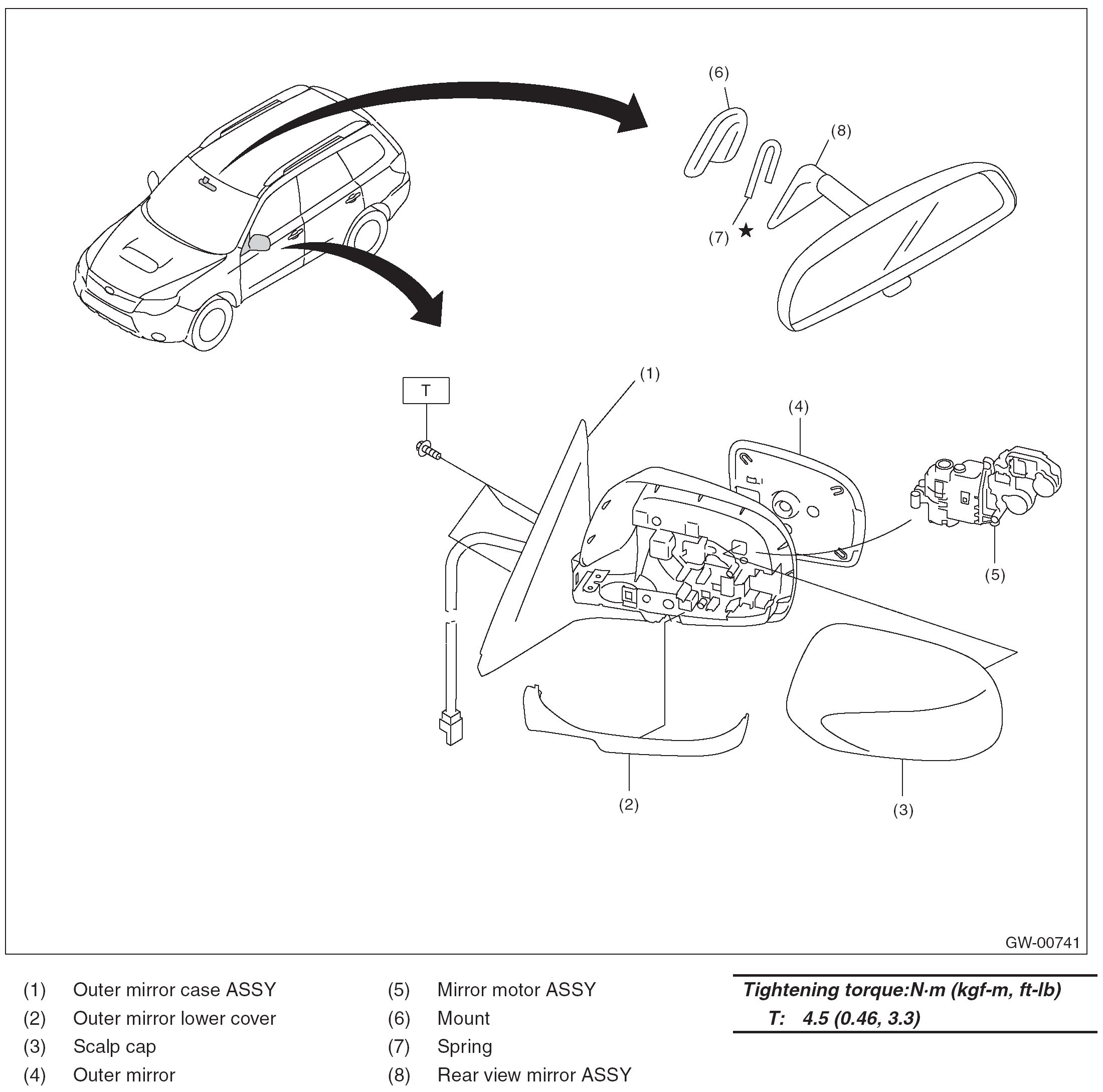

Tightening torque: 4.5 N.m (0.46 kgf-m, 3.3 ft-lb)
