Power Seat System

POWER SEAT SYSTEM

REMOVAL

CAUTION: When it is necessary to remove the front seat, disconnect the ground cable from battery and wait for 20 seconds before disconnecting the side airbag module harness connector.

1. POWER SEAT SWITCH

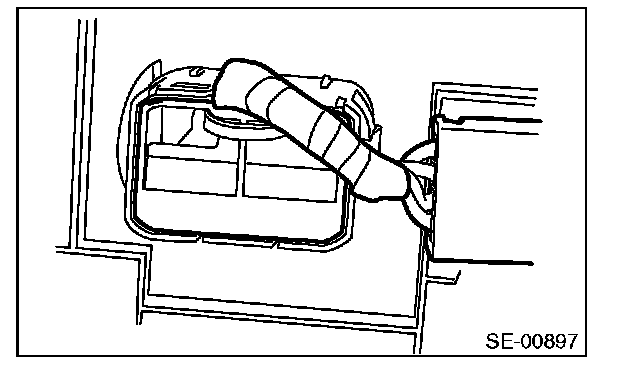

1. Detach the connectors and remove the seat side cover outside.

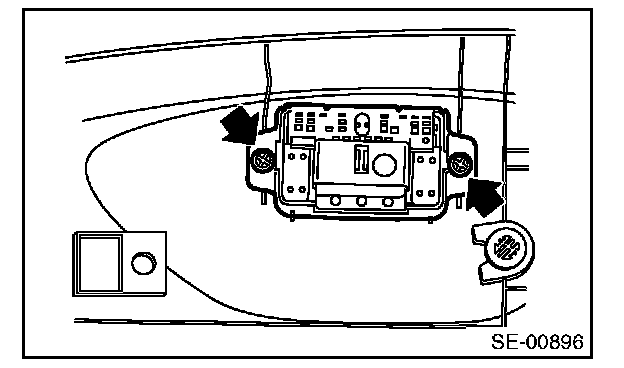

2. Remove the screws to remove the power seat switch assembly.

2. LUMBAR SWITCH
1. Detach the connectors and remove the seat side cover outside.
2. Disconnect the lumbar switch connector and remove the lumbar switch assembly.

INSTALLATION
Install in the reverse order of removal.
