Air Register: Service and Repair

Air Vent Grille

REMOVAL

1. CENTER GRILLE

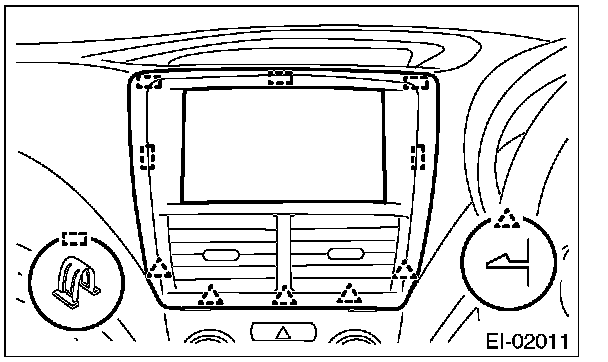

1. Insert a plastic remover into the slit at the bottom edge of the center panel and lift the panel.
2. Remove the claws and resin hook and then remove the center panel.






3. Remove the claws, and remove the air vent side grille from center panel.

2. SIDE GRILLE
1. Remove the ornament panel.
2. Remove the claws, and remove the air vent side grille.






INSTALLATION

Install in the reverse order of removal.
