Blower Motor Resistor: Service and Repair

Blower Resistor (Manual A/C Model)

REMOVAL

1. Remove the instrument panel lower cover.
2. Disconnect the blower resistor connector.

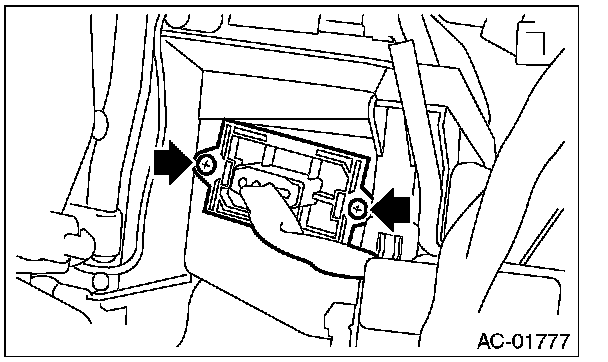

3. Remove the two screws and remove the blower resistor.






INSTALLATION

Install in the reverse order of removal.
