Horn: Service and Repair

Horn

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the front bumper face.
3. Disconnect the harness connector.

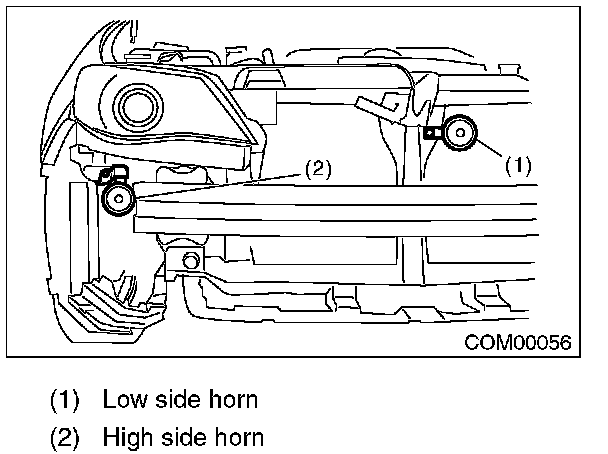

4. Remove the horn bracket mounting bolt to remove the horn assembly.






INSTALLATION

Install in the reverse order of removal.

Tightening torque:
Lo side: 18 N.m (1.8 kgf.m, 13.3 ft.lb)
Hi side: 13 N.m (1.3 kgf.m, 9.6 ft.lb)
