Rear Oxygen Sensor

Rear Oxygen Sensor

INSPECTION

1. Check that the rear oxygen sensor has no deformation, cracks or other damages.

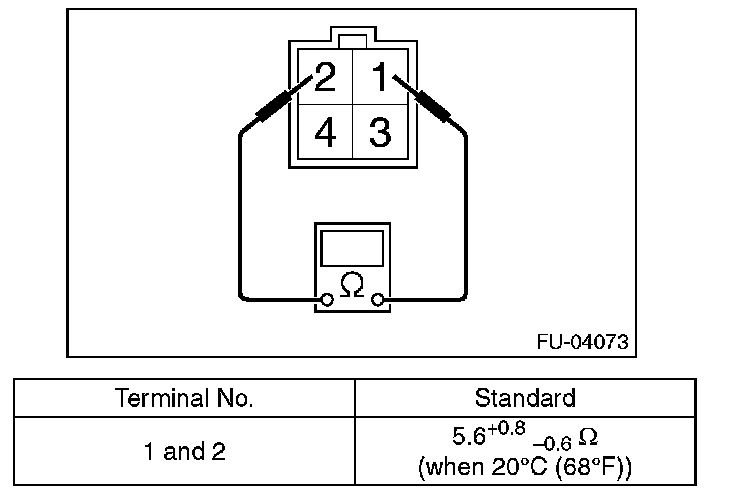

2. Measure the resistance between rear oxygen sensor terminals.
