Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode Preparation For the Inspection Mode.

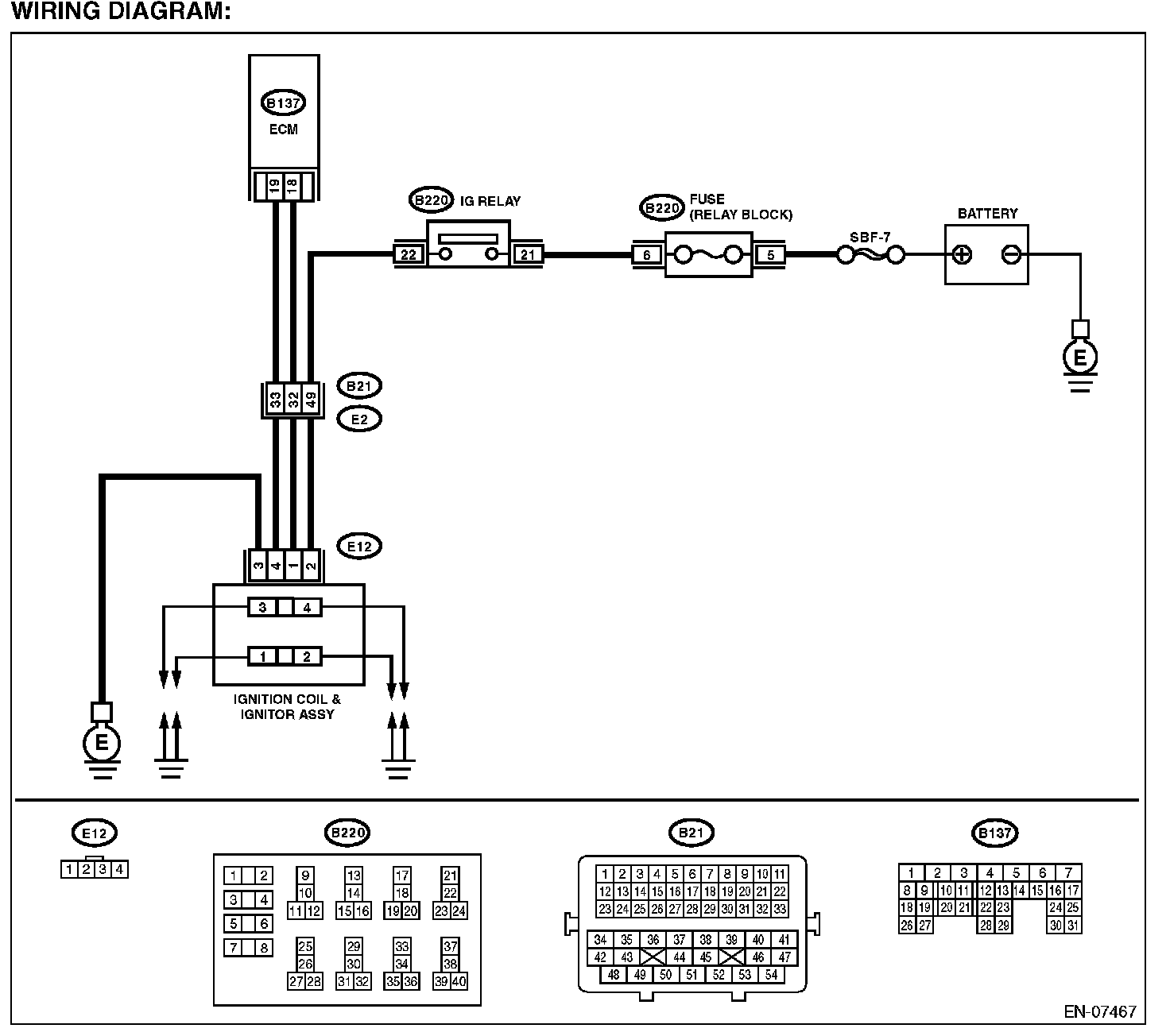

WIRING DIAGRAM:

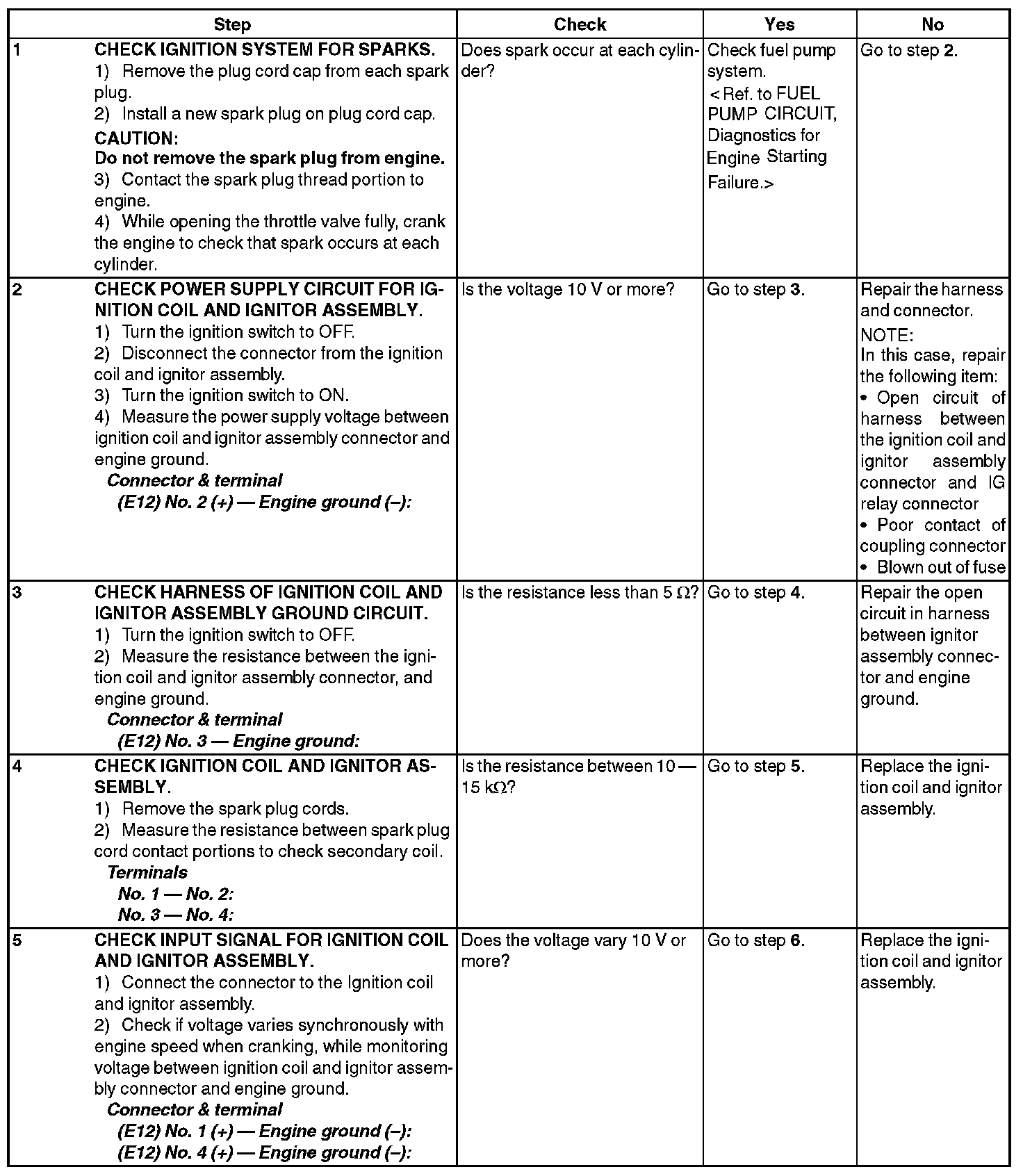

Step 1-5:

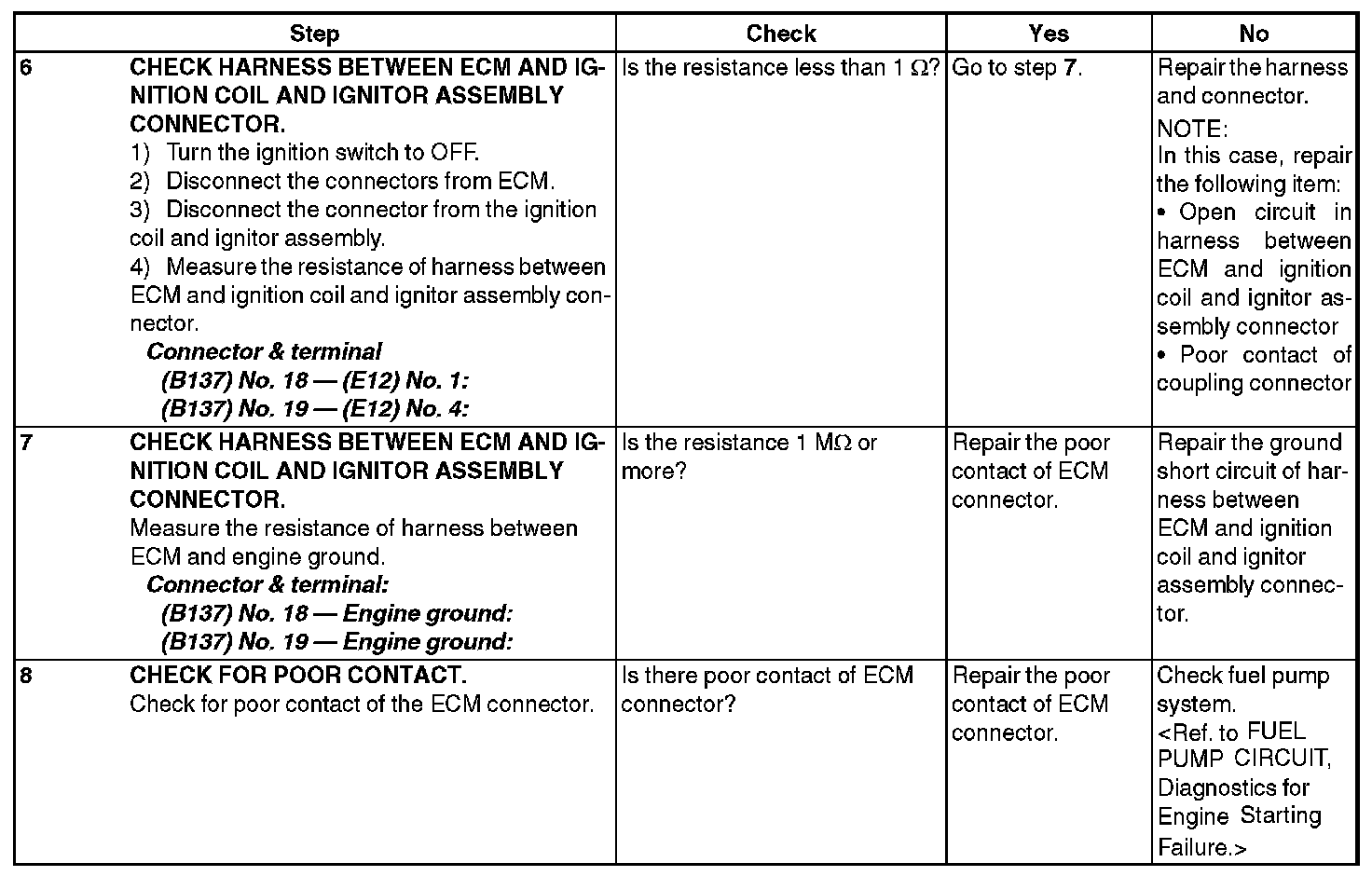

Step 6-8:
