Pinout Values and Diagnostic Parameters

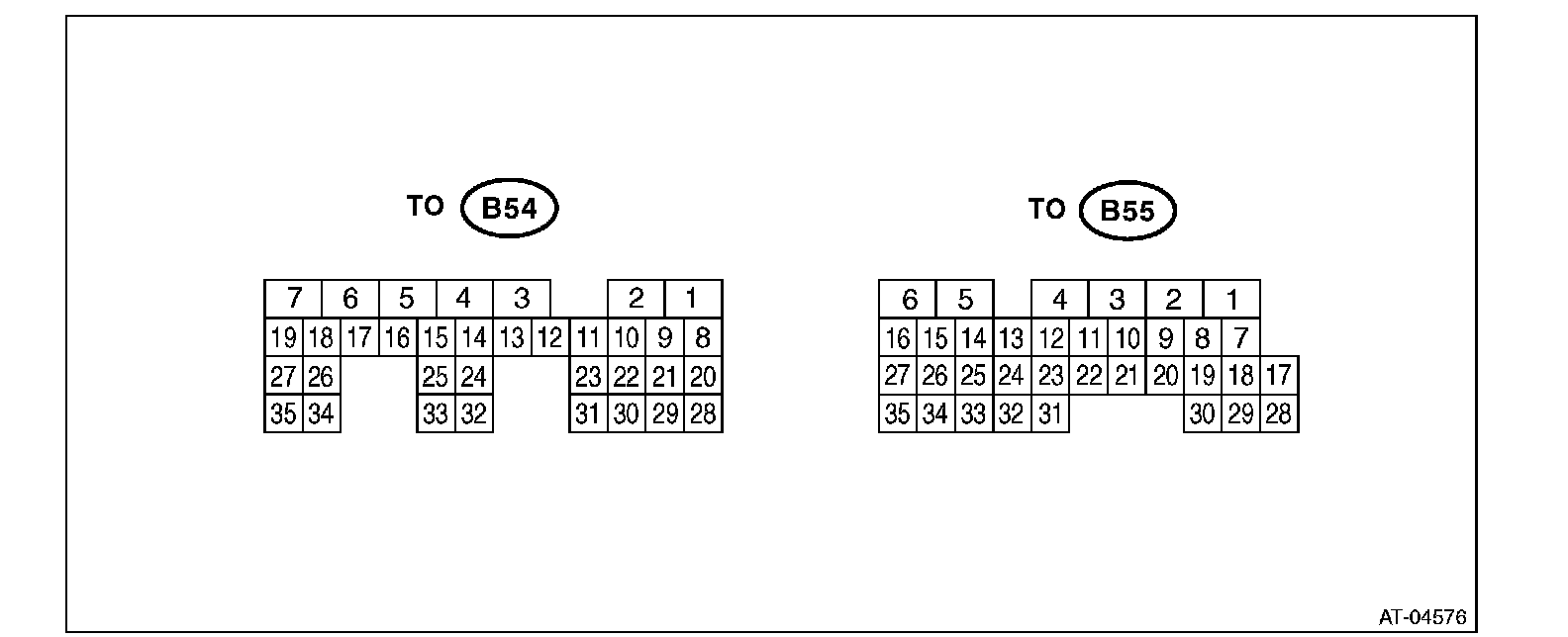

Transmission Control Module (TCM) I/O Signal

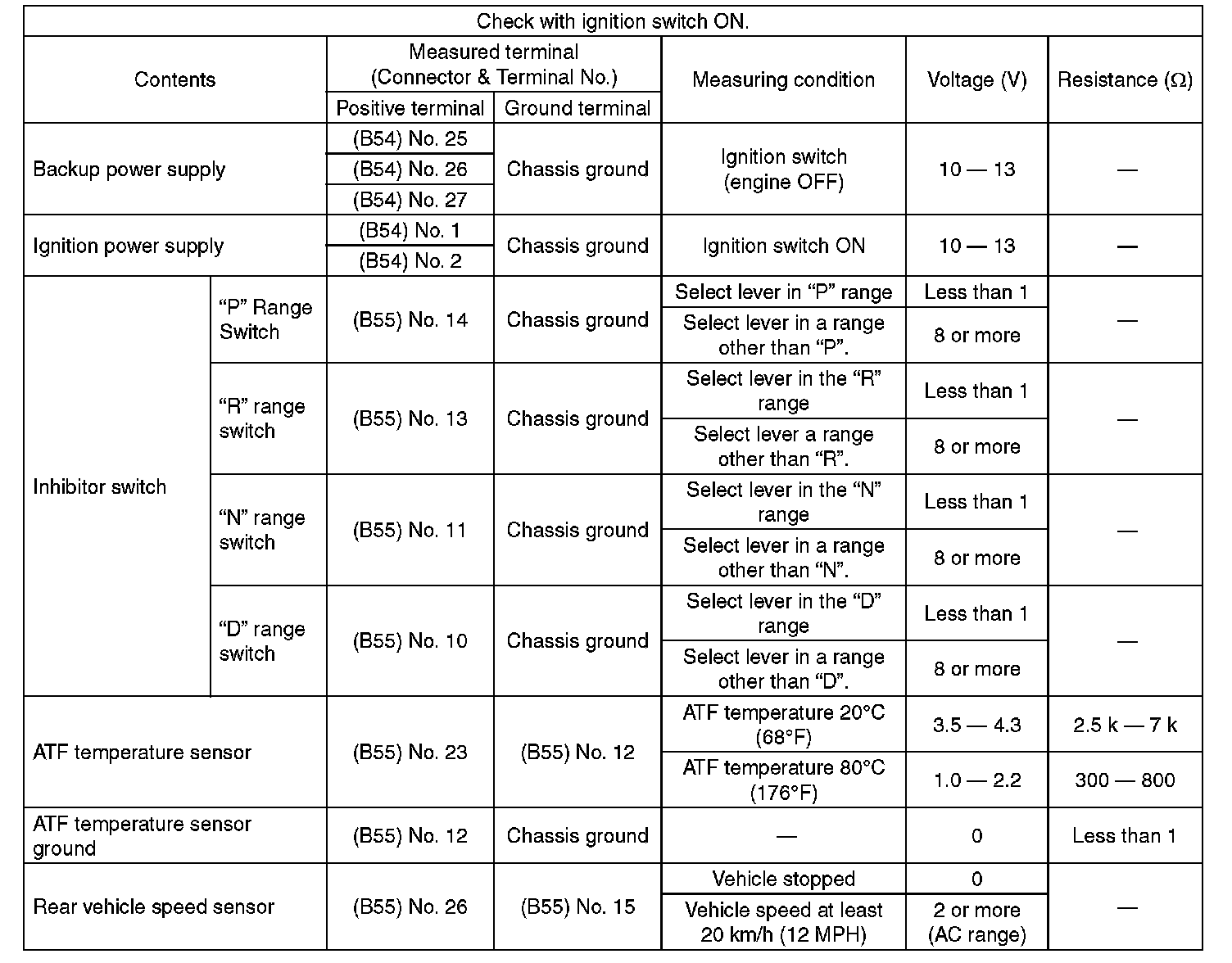

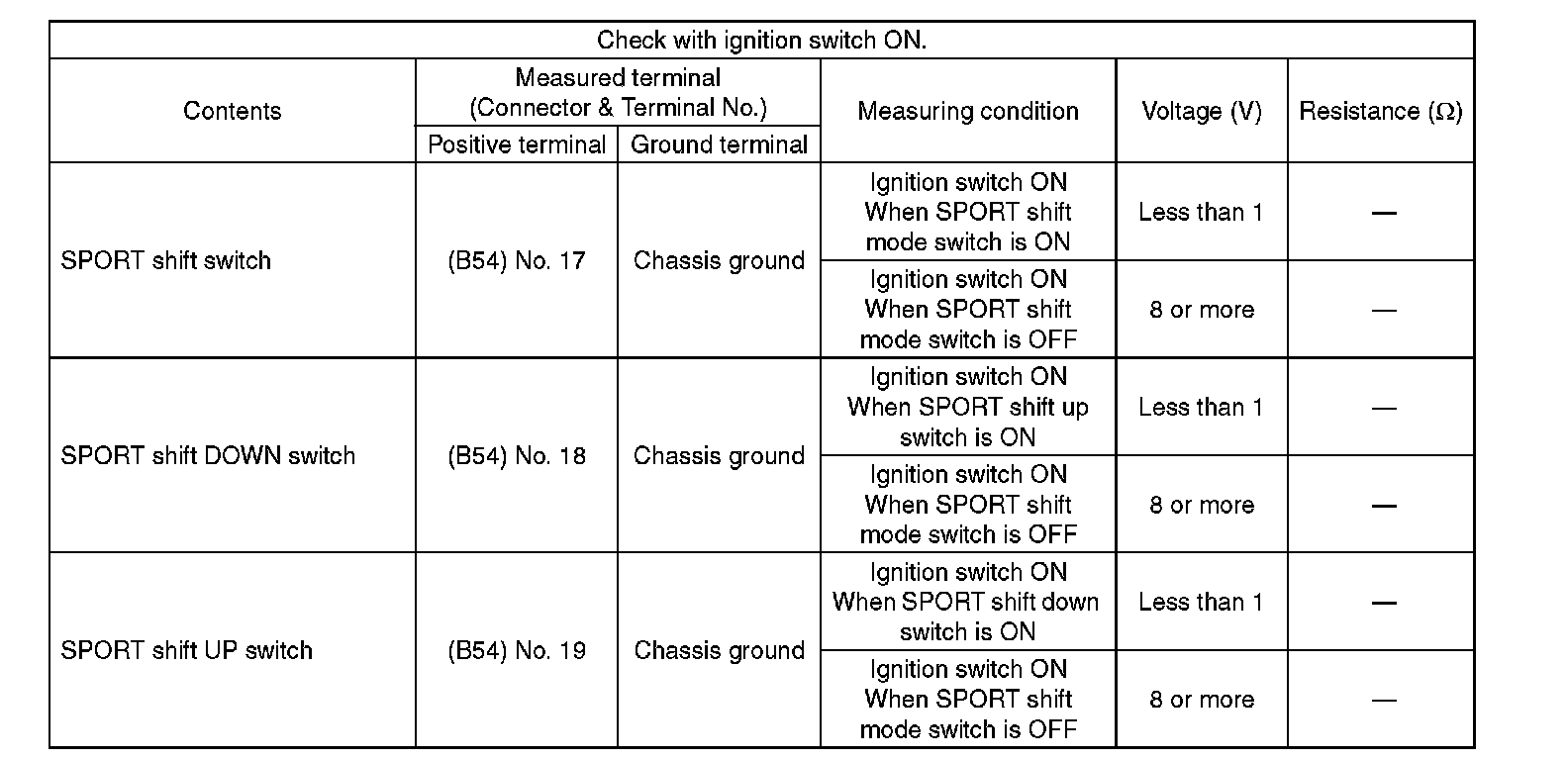

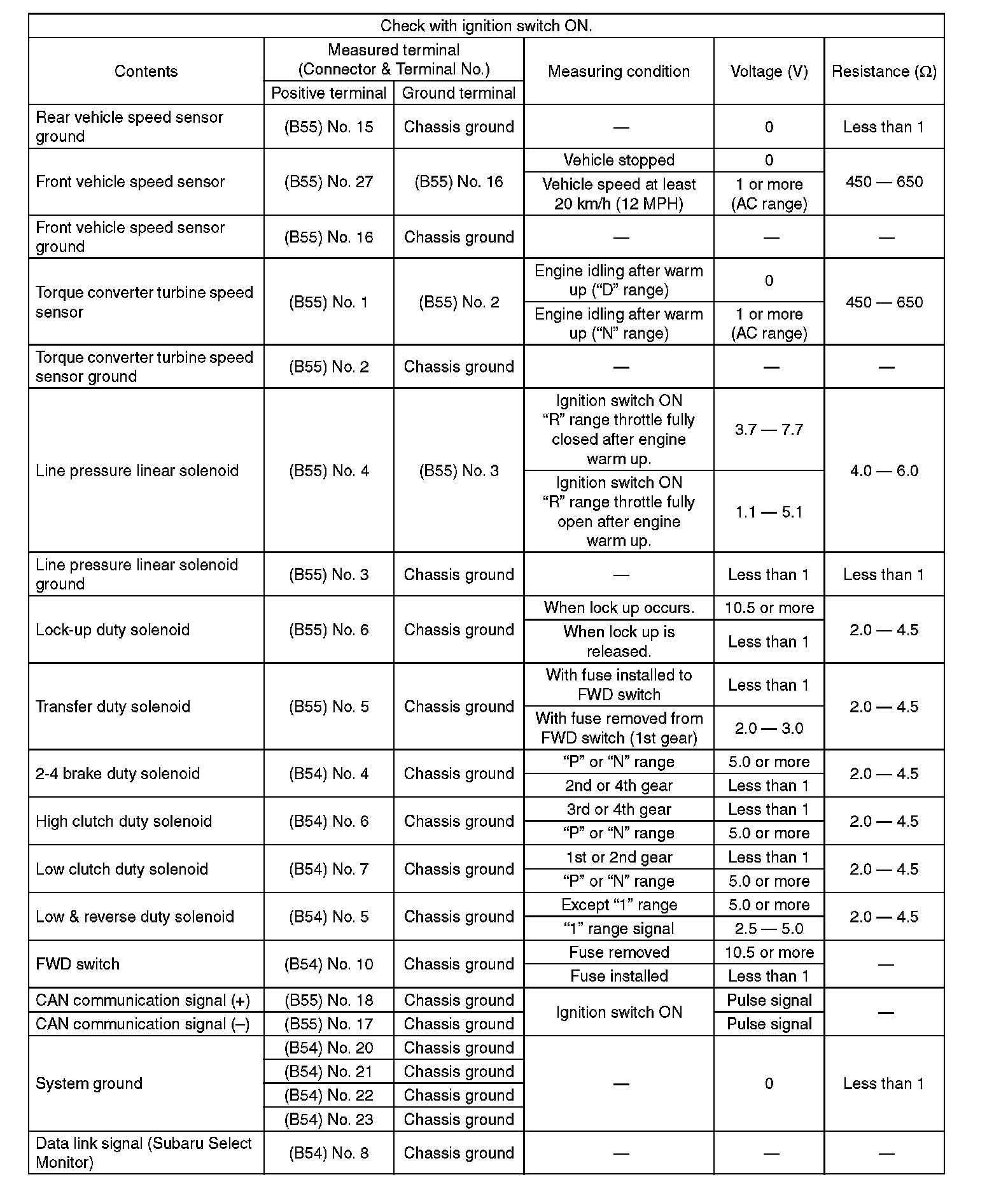

ELECTRICAL SPECIFICATION
