Alarm Module: Service and Repair

Security Control Module

REMOVAL

1. Remove the heater and cooling unit.
2. Remove the security control module.
1. Disconnect the connector.

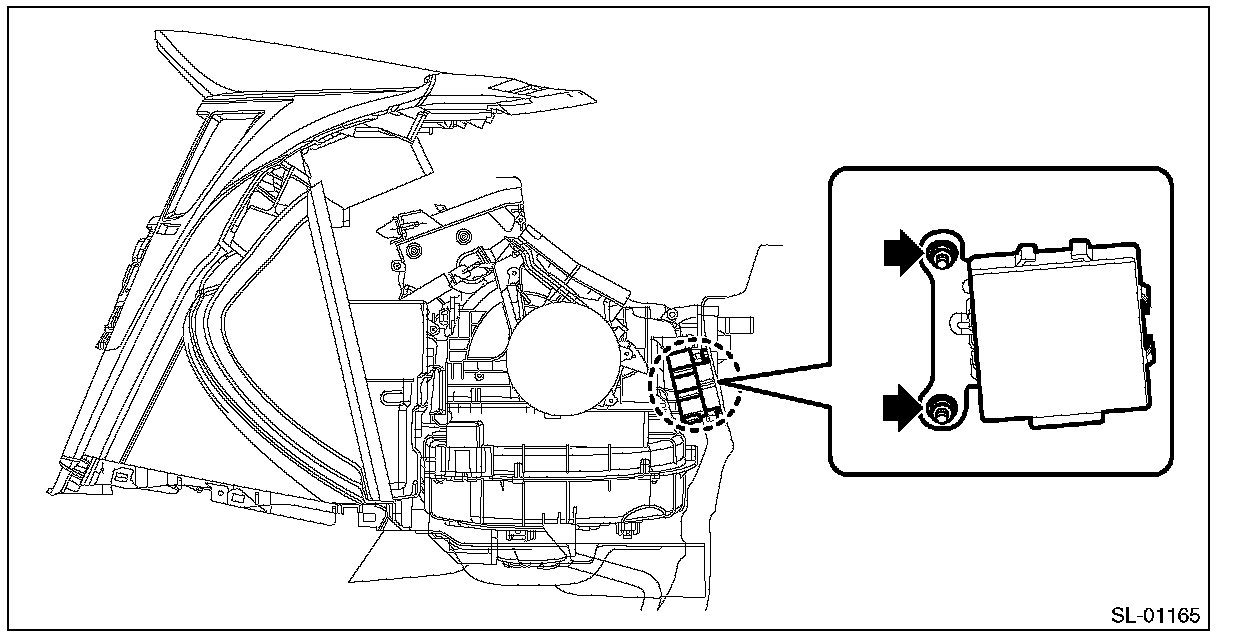

2. Remove the nuts, and remove the security control module.






INSTALLATION

Install each part in the reverse order of removal.

Tightening torque:
Security control module: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)
