Component Tests and General Diagnostics

Keyless Transmitter

INSPECTION

1. KEYLESS TRANSMITTER BATTERY

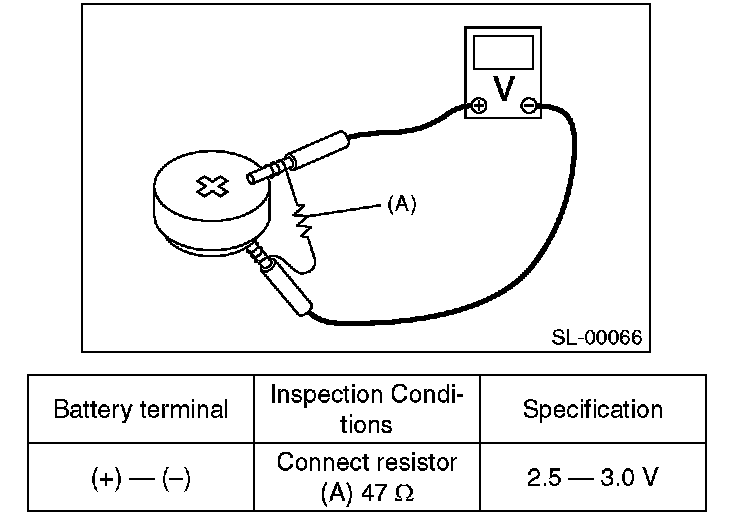

Check the keyless transmitter battery voltage.

Preparation tool: Circuit tester

NOTE: Complete the measurement within 5 seconds because the battery discharges during measurement.

Replace the battery if the inspection result is not within the standard value. (Use CR1620 or equivalent.)
