Power Mirror Switch: Testing and Inspection

REMOTE CONTROL MIRROR SWITCH

INSPECTION

1. Disconnect the remote control mirror switch connector.

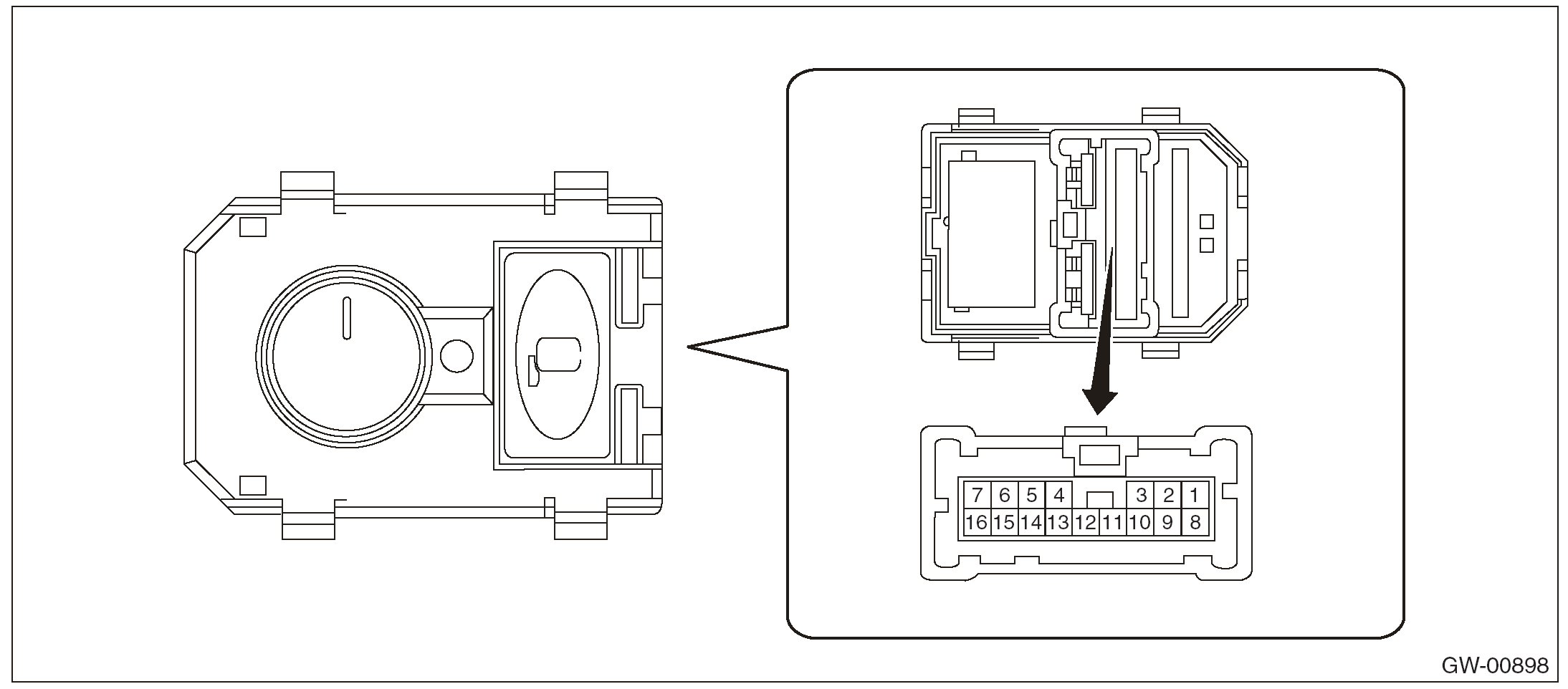

2. Check the resistance between remote control mirror switch terminals.

Preparation tool: Circuit tester

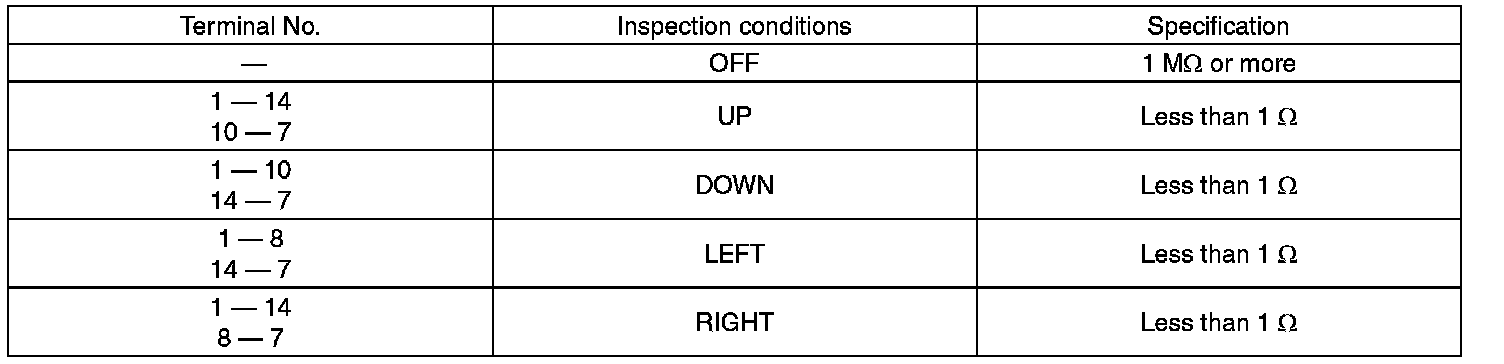

- Changeover switch RH

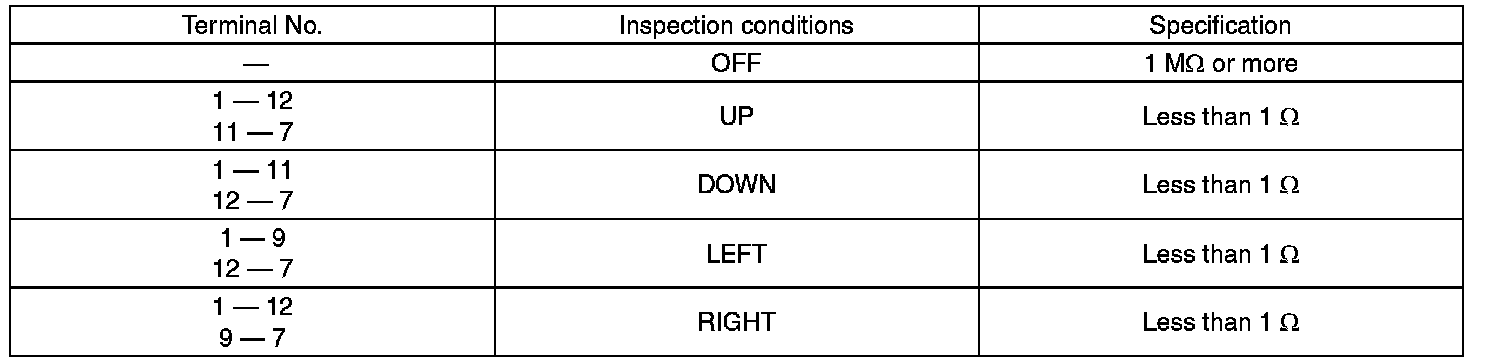

- Changeover switch LH

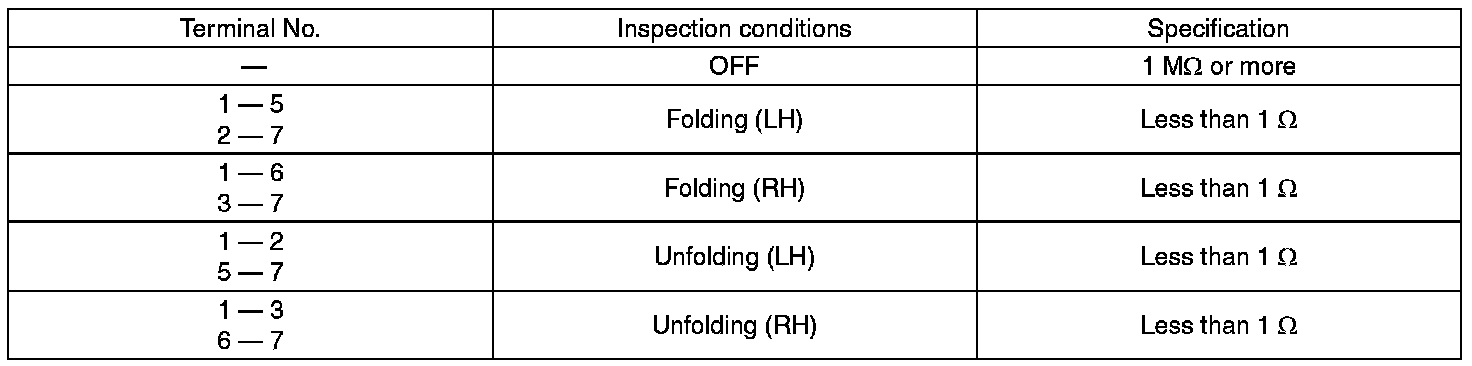

- Folding switch (model with retractable mirror)

3. Replace the remote control mirror switch if the inspection result is not within the standard value.
