Timing Cover: Service and Repair

Timing Belt Cover

REMOVAL

NOTE:
When replacing the single part, perform the work with the engine installed to vehicle body.

1) Remove the V-belts.
2) Remove the crank pulley.
3) Remove the stopper rod.





4) Remove the timing belt cover LH (A).
5) Remove the front timing belt cover (B).





INSTALLATION

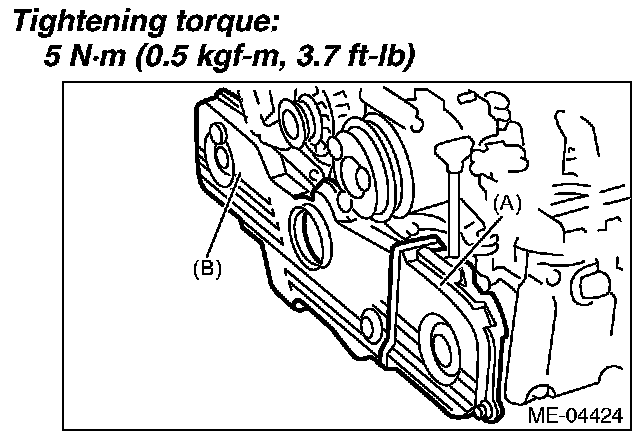

1) Install the front timing belt cover (B).

Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)

2) Install the timing belt cover LH (A).





3) Install the stopper rod.





4) Install the crank pulley.
5) Install the V-belts.

INSPECTION
Check the timing belt cover for damage.
