In-Vehicle Sensor (Auto A/C Model)

In-Vehicle Sensor (Auto A/C Model)

REMOVAL

CAUTION: Be careful not to damage the sensors and interior trims when removing.

1. Disconnect the ground cable from battery.

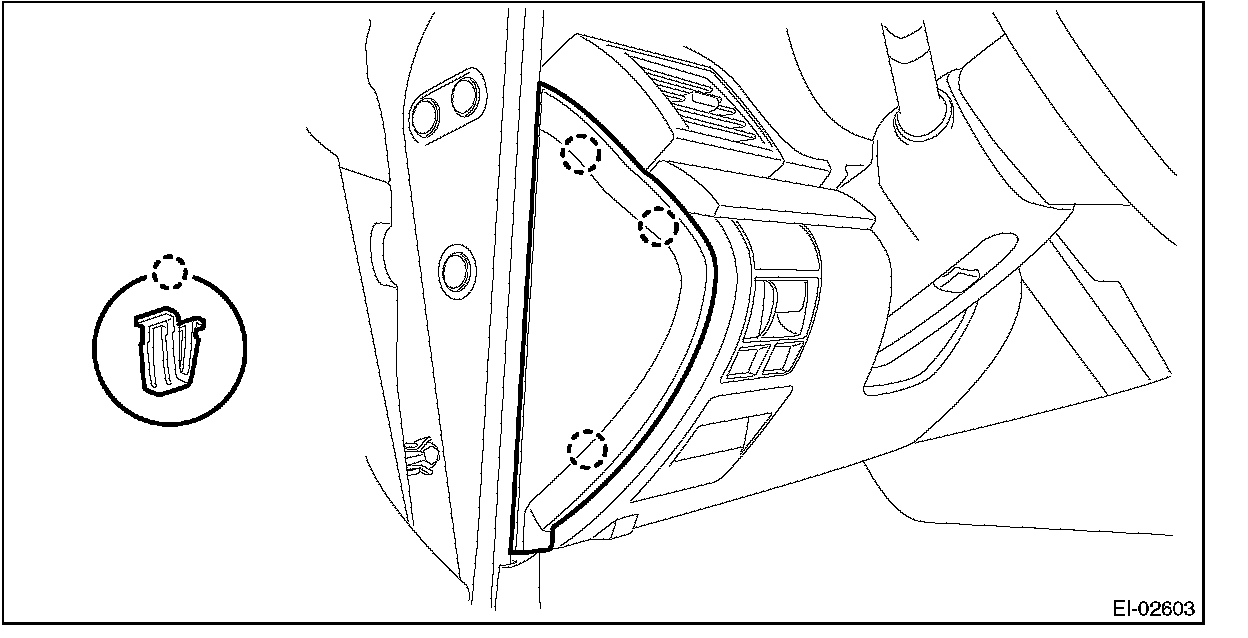

2. Remove the clips, and remove the instrument panel side cover LH.






3. Remove the instrument panel lower cover.

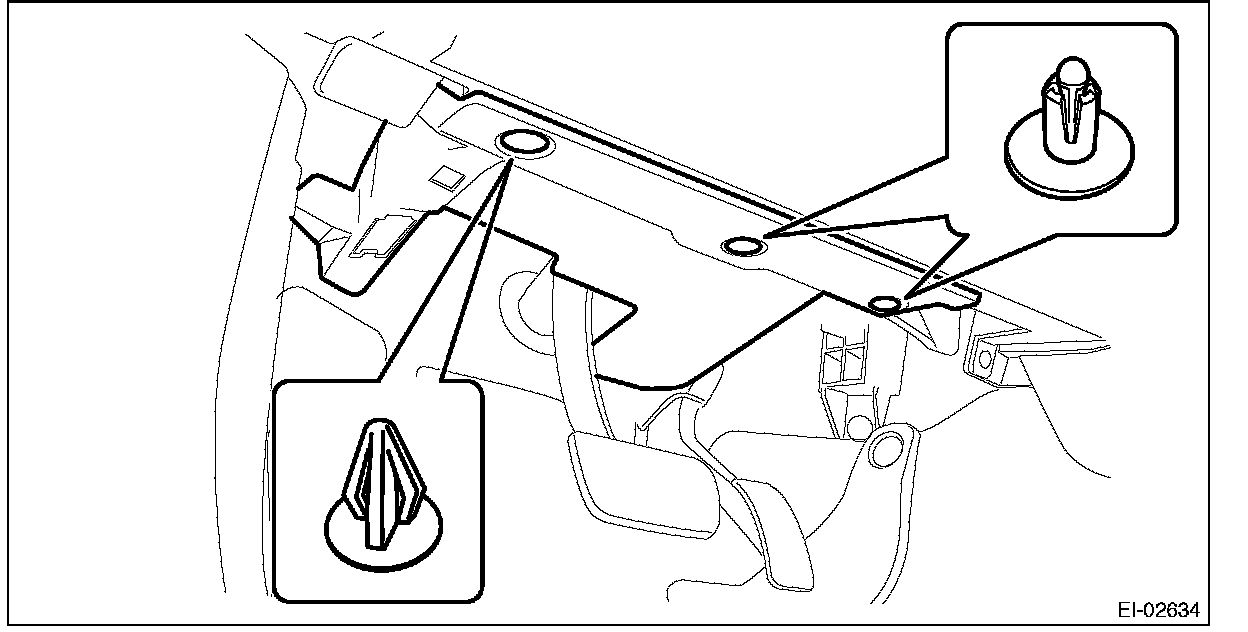

1. Remove the clip.
2. Remove the data link connector, and remove the instrument panel lower cover under.






3. Remove the screws and clips and release the claws, and remove the instrument panel lower cover while disconnecting the harness connectors.

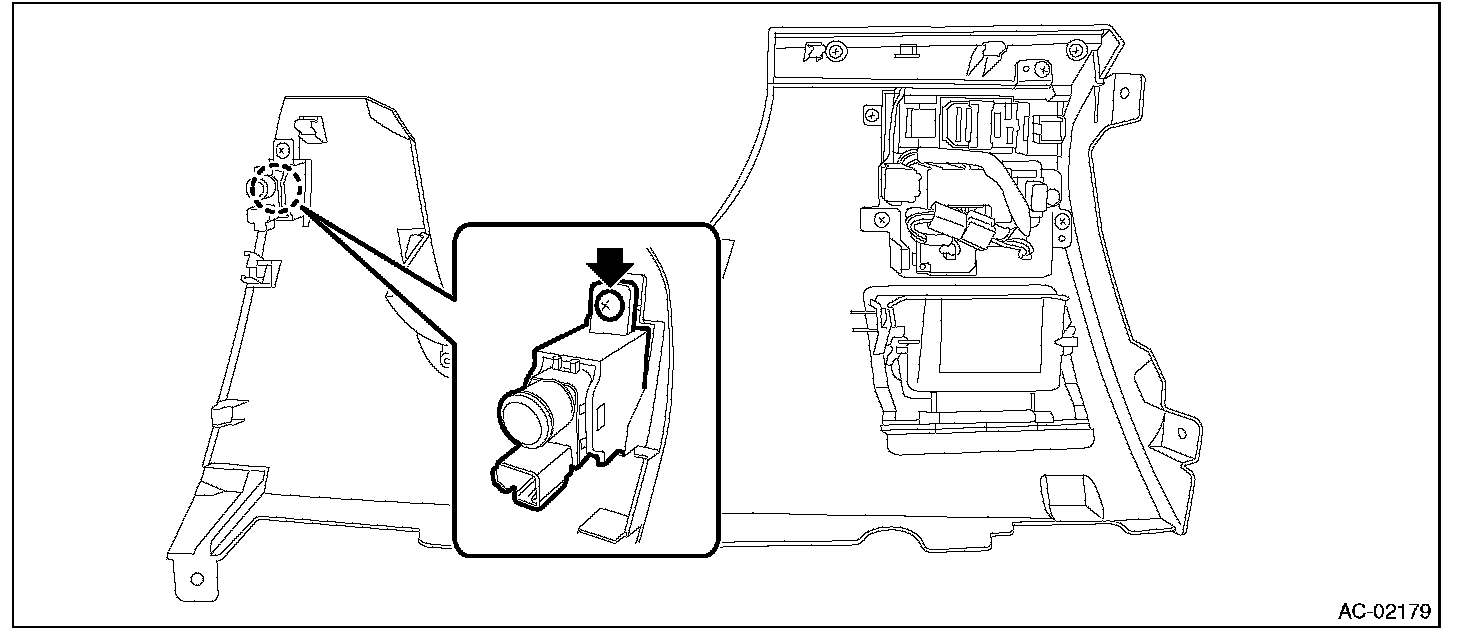

4. Remove the screw and remove the in-vehicle sensor from the instrument lower cover.






INSTALLATION

Install each part in the reverse order of removal.
