Solar Sensor: Service and Repair

Sunload Sensor (Auto A/C Model)

REMOVAL

NOTE: Sunload sensor is integrated with the light control sensor.

1. Disconnect the ground cable from battery.
2. Remove the sunload sensor.

CAUTION: Be careful not to damage the sensors and interior trims when removing.

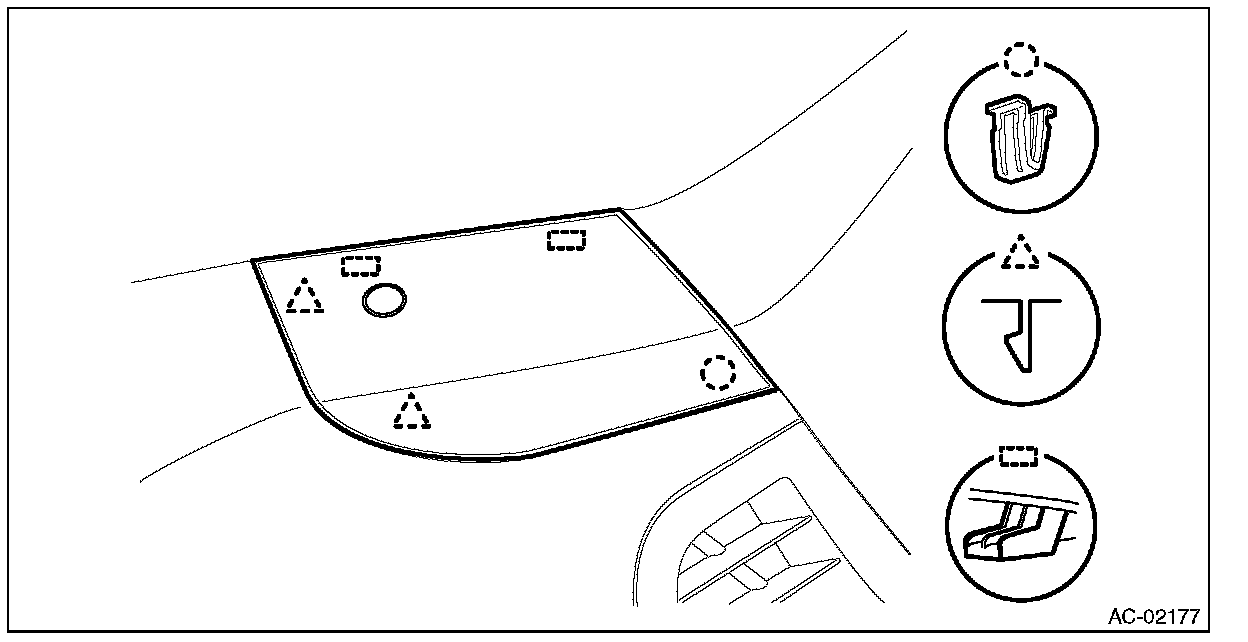

1. Release the claws and clips, then detach the side speaker cover (RH).

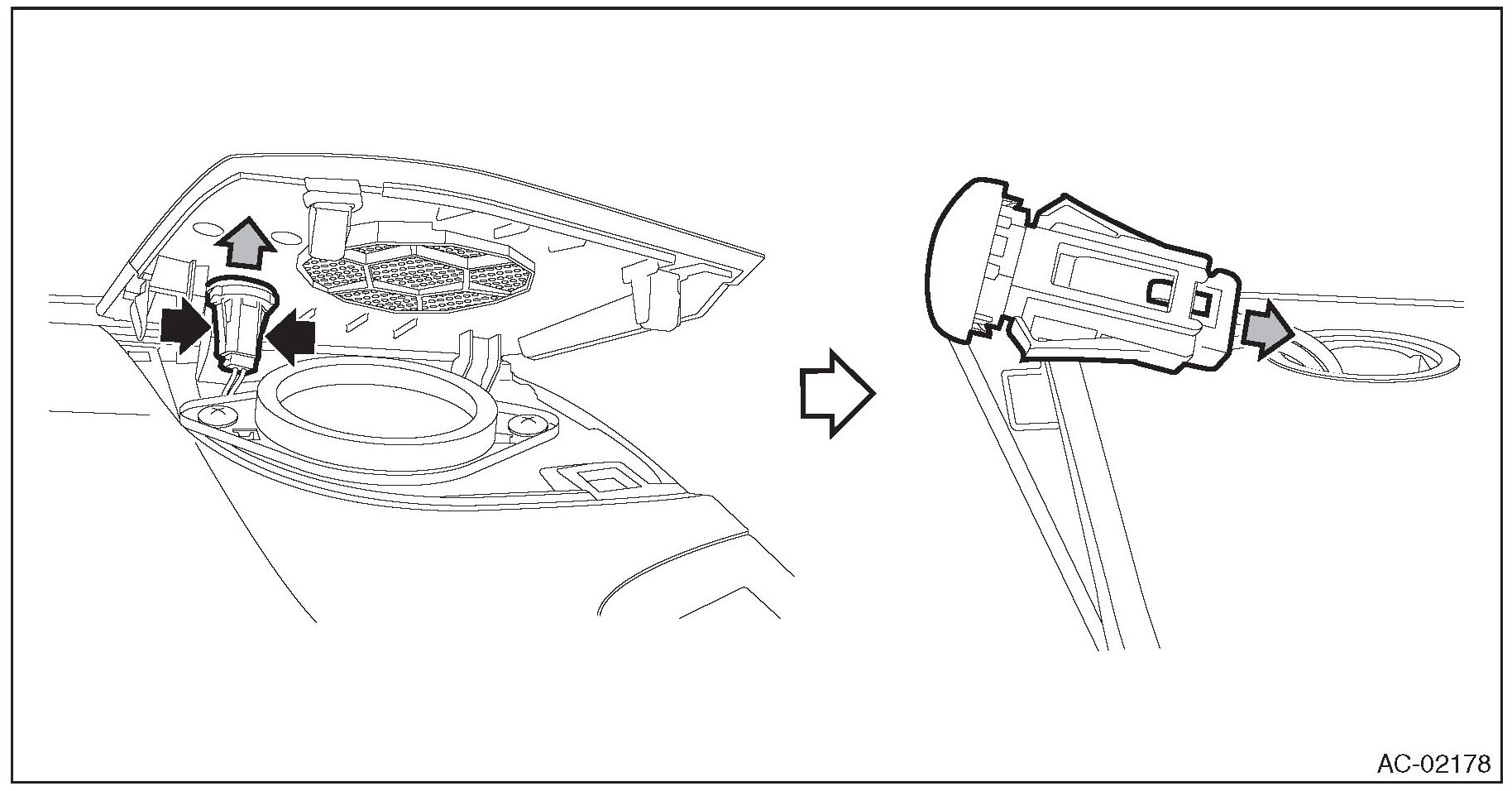

2. Push out the sunload sensor by pressing the left and right claws.
3. Disconnect the connector and remove the sunload sensor.






INSTALLATION

Install each part in the reverse order of removal.
