Backup Lamp: Testing and Inspection

Back-up Light System

INSPECTION

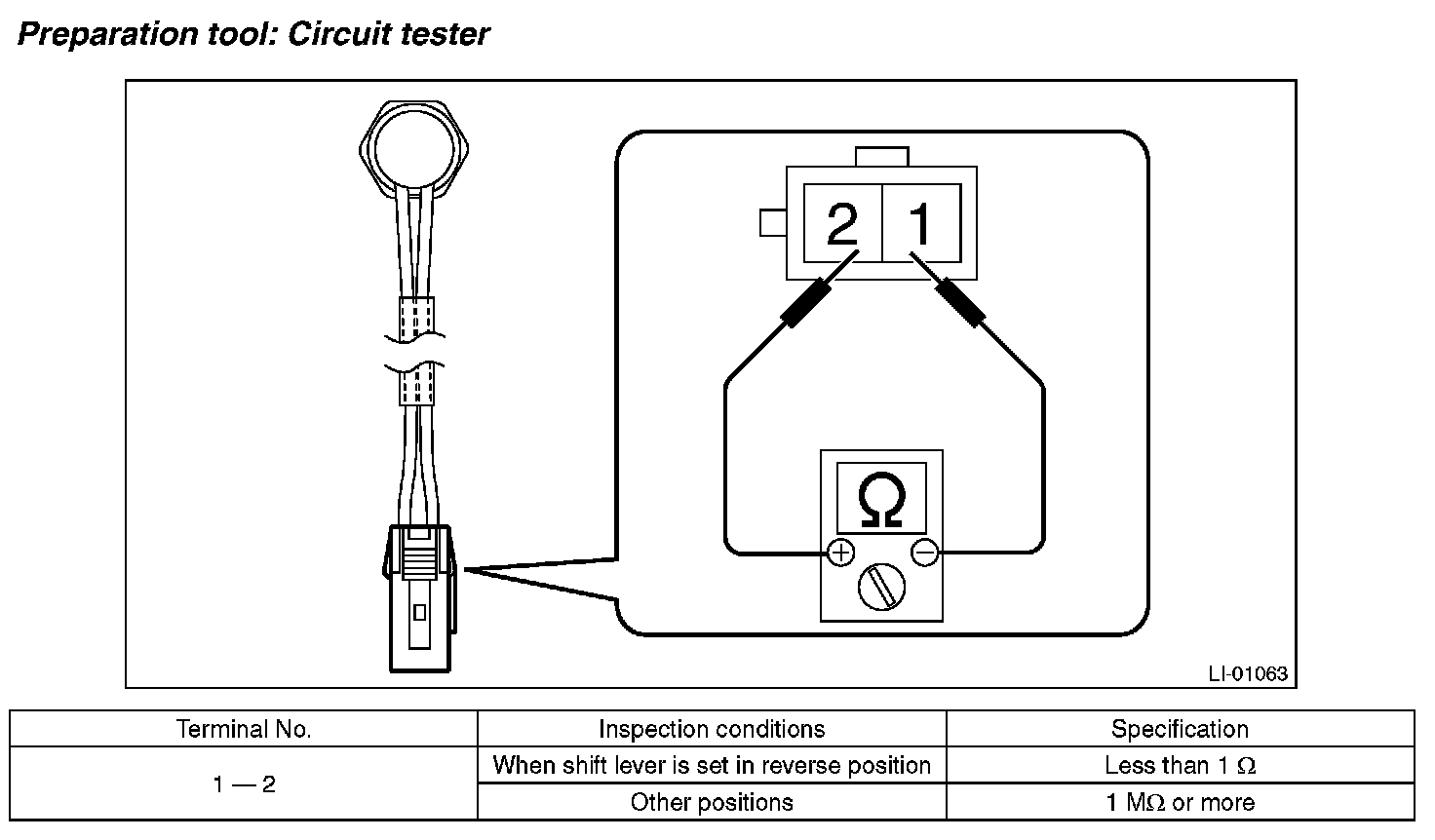

1. CHECK BACK-UP LIGHT SWITCH (MT MODEL)
1. Disconnect the back-up light switch connector.
2. Measure the resistance between back-up light switch terminals.






3. Replace the back-up light switch if the inspection result is not within the standard value.

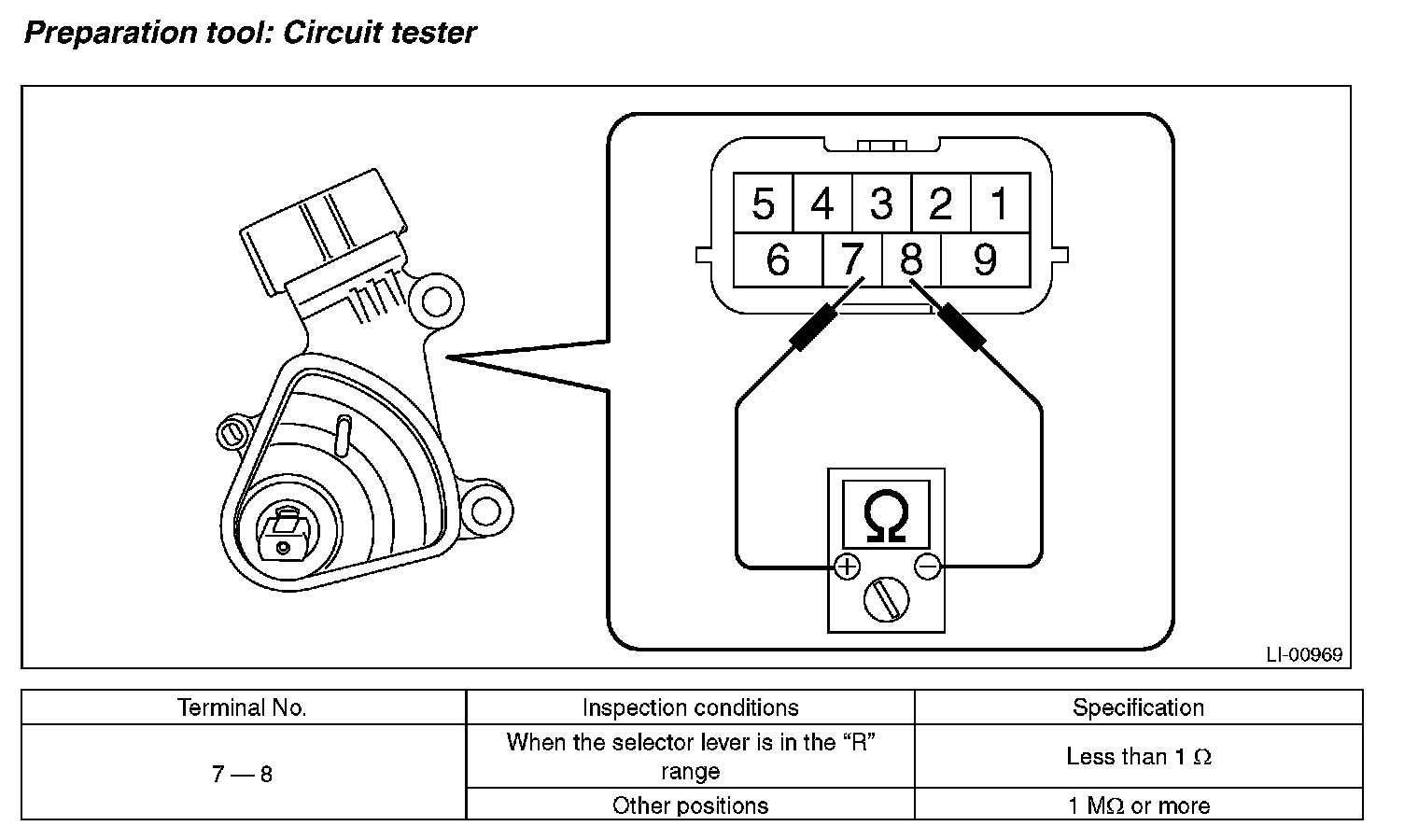

2. CHECK INHIBITOR SWITCH (CVT MODEL)
1. Disconnect the inhibitor switch connector.
2. Measure the resistance between inhibitor switch terminals.






3. Replace the inhibitor switch if the inspection result is not within the standard value.
