Key Cylinder Lamp: Service and Repair

Ignition Switch Illumination

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the steering column cover.

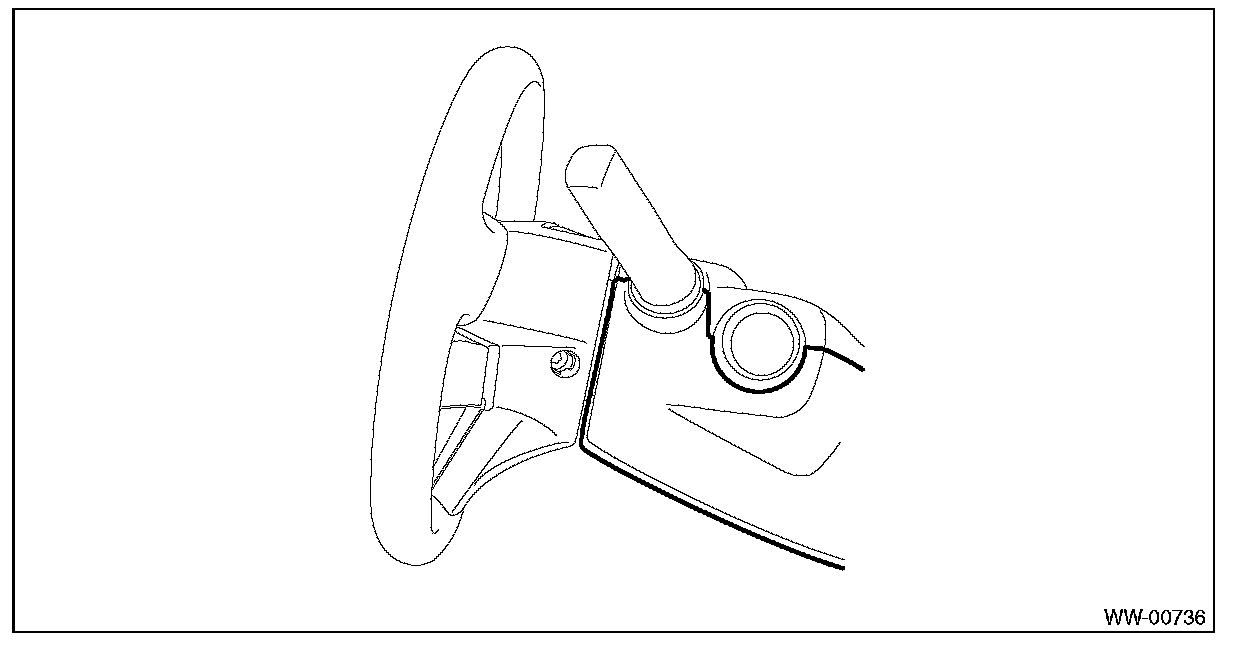

1. Remove the screws by turning the steering wheel to right and left.






2. Release the claws and remove the steering column lower cover.

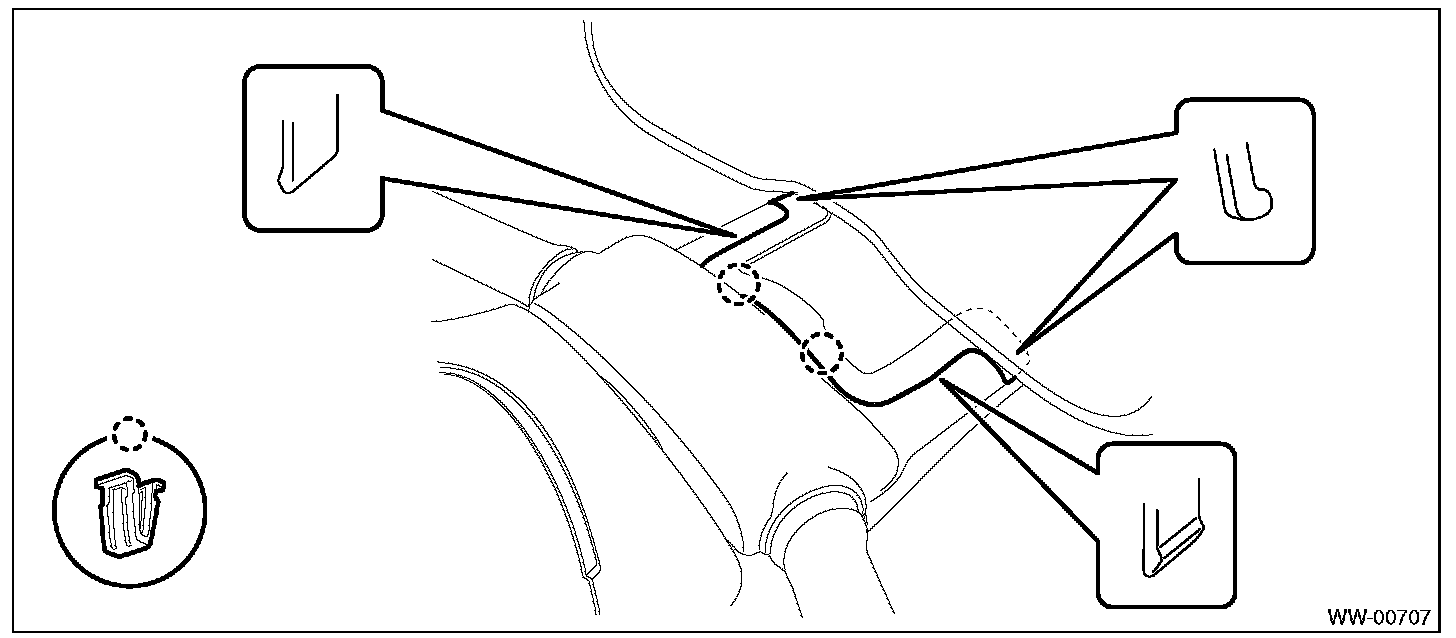

3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.

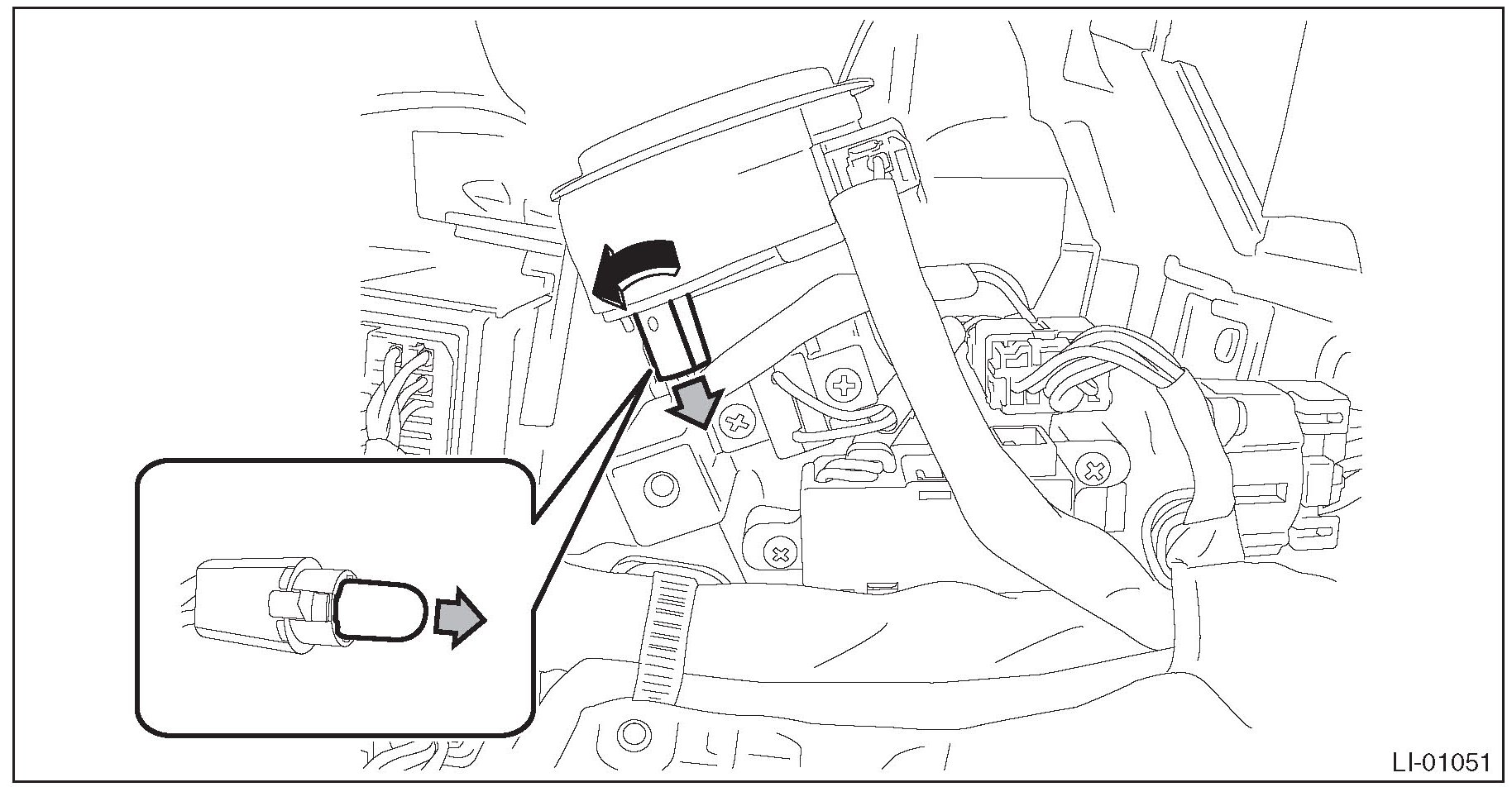

3. Remove the bulb socket and ignition switch illumination bulb.






NOTE: If the bulb socket is faulty, replace the ignition key lock.

INSTALLATION

Install each part in the reverse order of removal.
