Map Light: Testing and Inspection
Spot Map LightINSPECTION
1. SPOT MAP LIGHT BULB
1. Visually check the bulb for blow out.
2. Check the bulb specification.
3. Replace the bulb if it is found defective.
2. SPOT MAP LIGHT SWITCH
1. Remove the overhead console assembly.

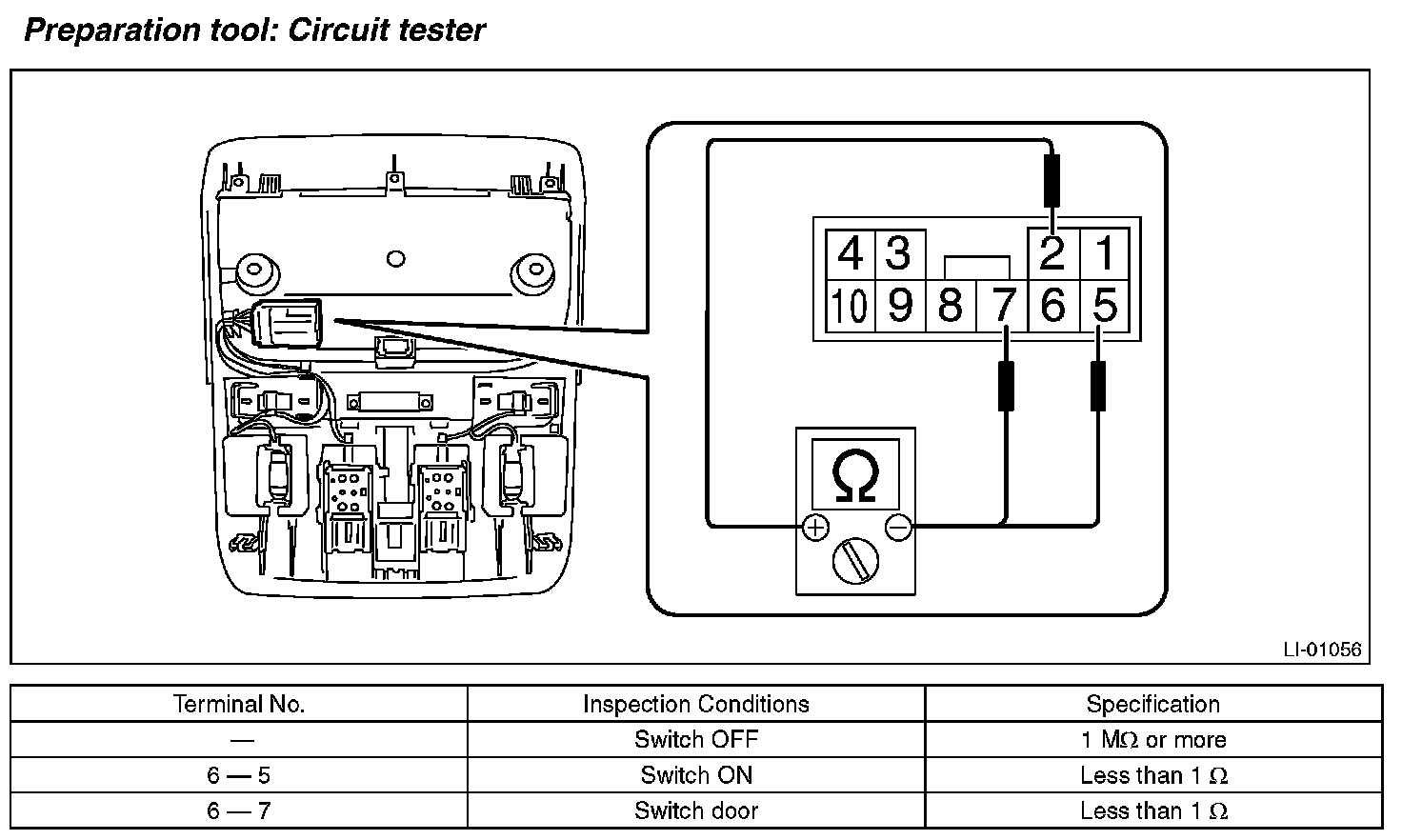

2. Measure the resistance between spot map light switch terminals.
3. Replace the overhead console assembly if the inspection result is not within the standard value.
3. OVERHEAD CONSOLE ILLUMINATION LIGHT BULB
NOTE: Since LEDs (Light Emitting Diode) are used for the overhead console illumination light bulb, replace the overhead console assembly if an LED burns out.
