Removal

Pipe Assembly

REMOVAL
1) Set the vehicle on a lift.

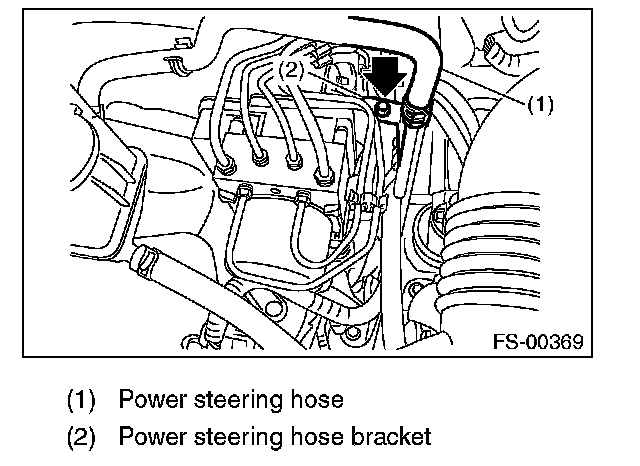

2) Remove the power steering hose bracket and power steering hose.
1) Remove the clip and disconnect the hose from the pipe.
2) Remove the power steering hose bracket.

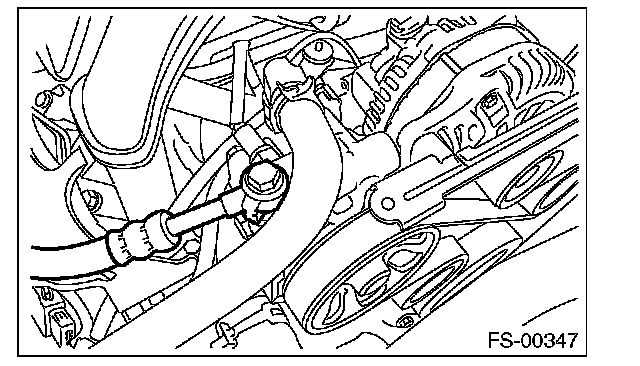

3) Remove the hose from power steering pump.





NOTE:
Plug the removed hose and pipe to prevent foreign matter from entering.

3) Lift up the vehicle and remove the under cover.

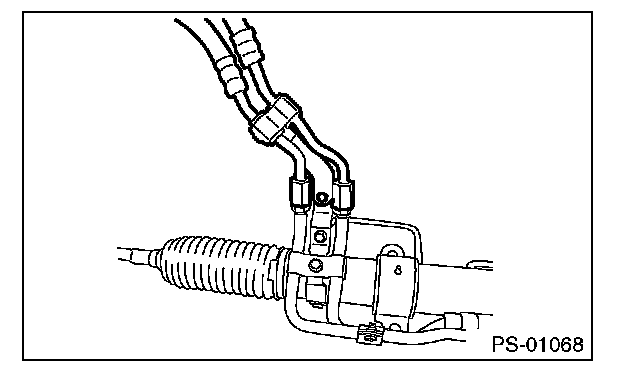

4) Disconnect the hose assembly from steering gearbox.
