Electronic Throttle Actuator Relay: Service and Repair

Electronic Throttle Control Relay

REMOVAL

1. Disconnect the ground cable from battery.

2. Remove the glove box lid assembly, glove box lower cover, instrument panel side cover LH and glove box back panel.

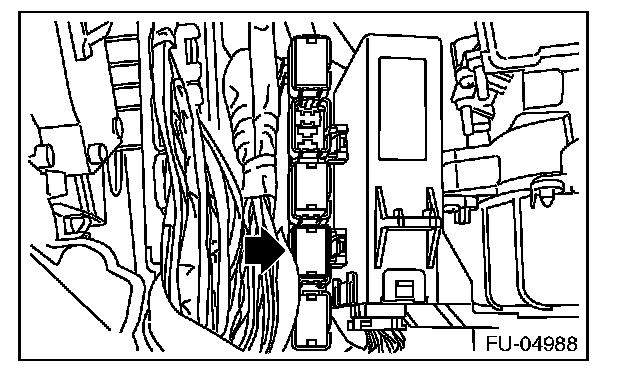

3. Remove the electronic throttle control relay from the relay holder.

INSTALLATION

Install in the reverse order of removal.
