Pinout Values and Diagnostic Parameters
Engine Control Module (ECM) I/O SignalELECTRICAL SPECIFICATION

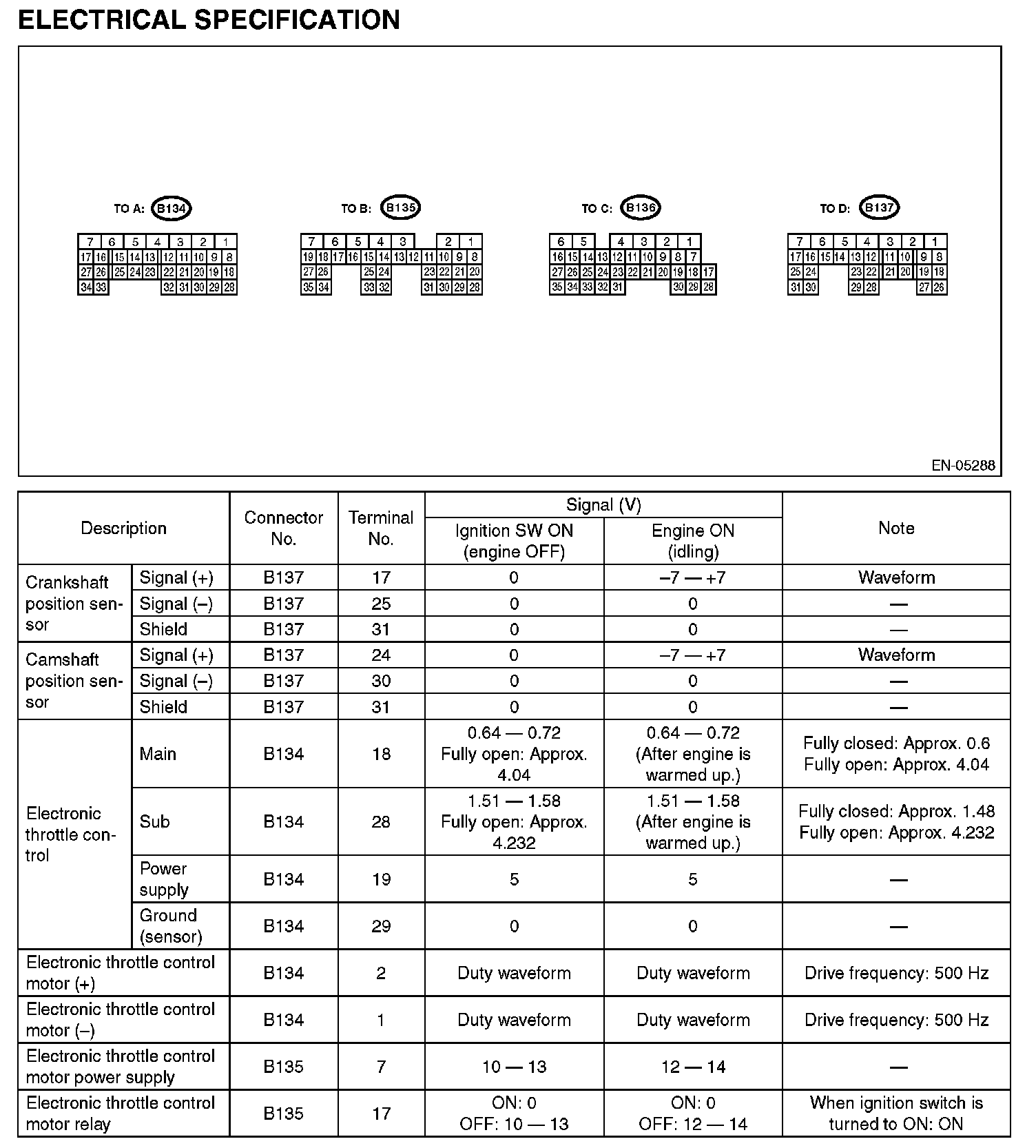

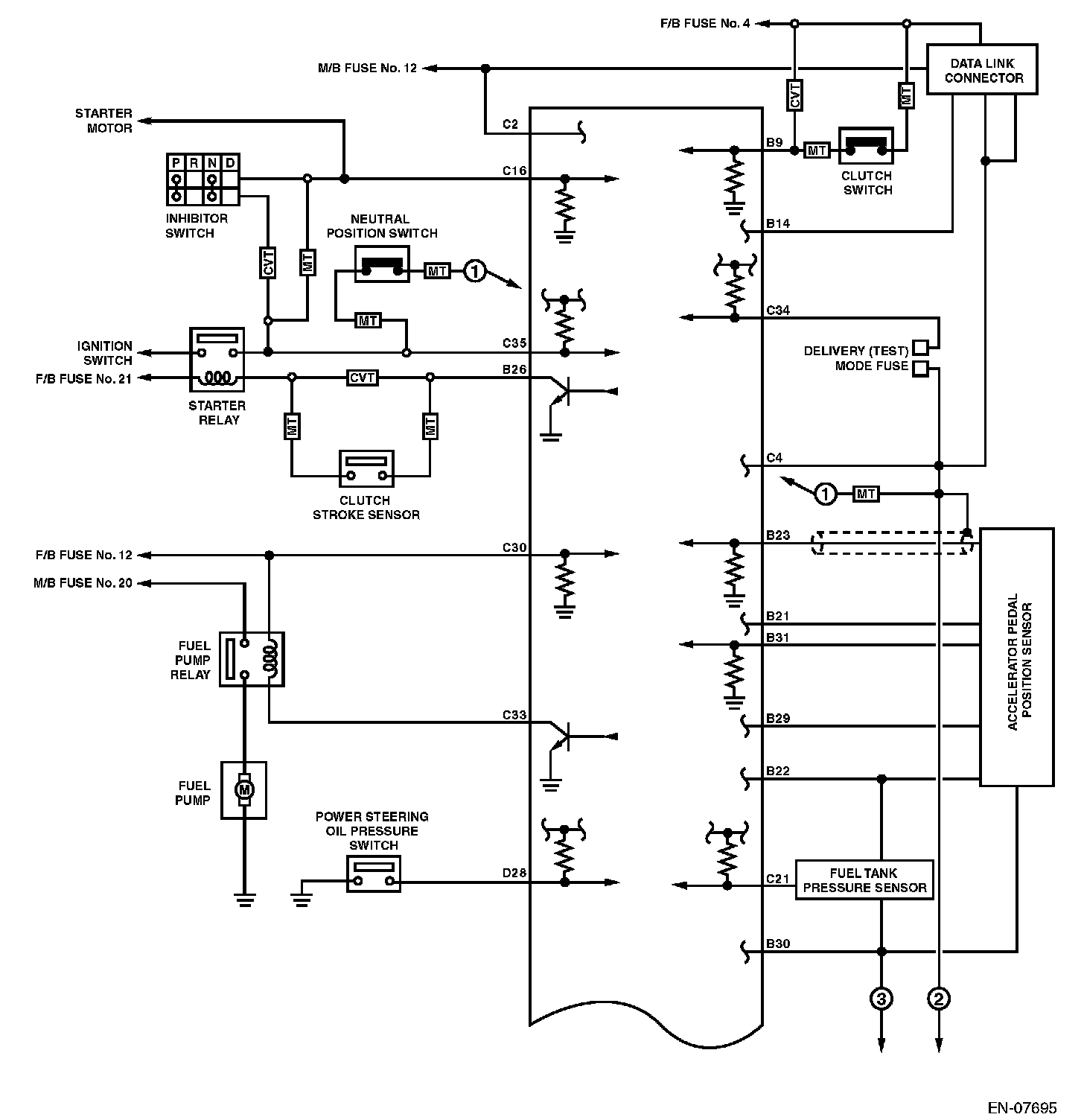

Engine Control Module (ECM) I/O Signal (Part 1):

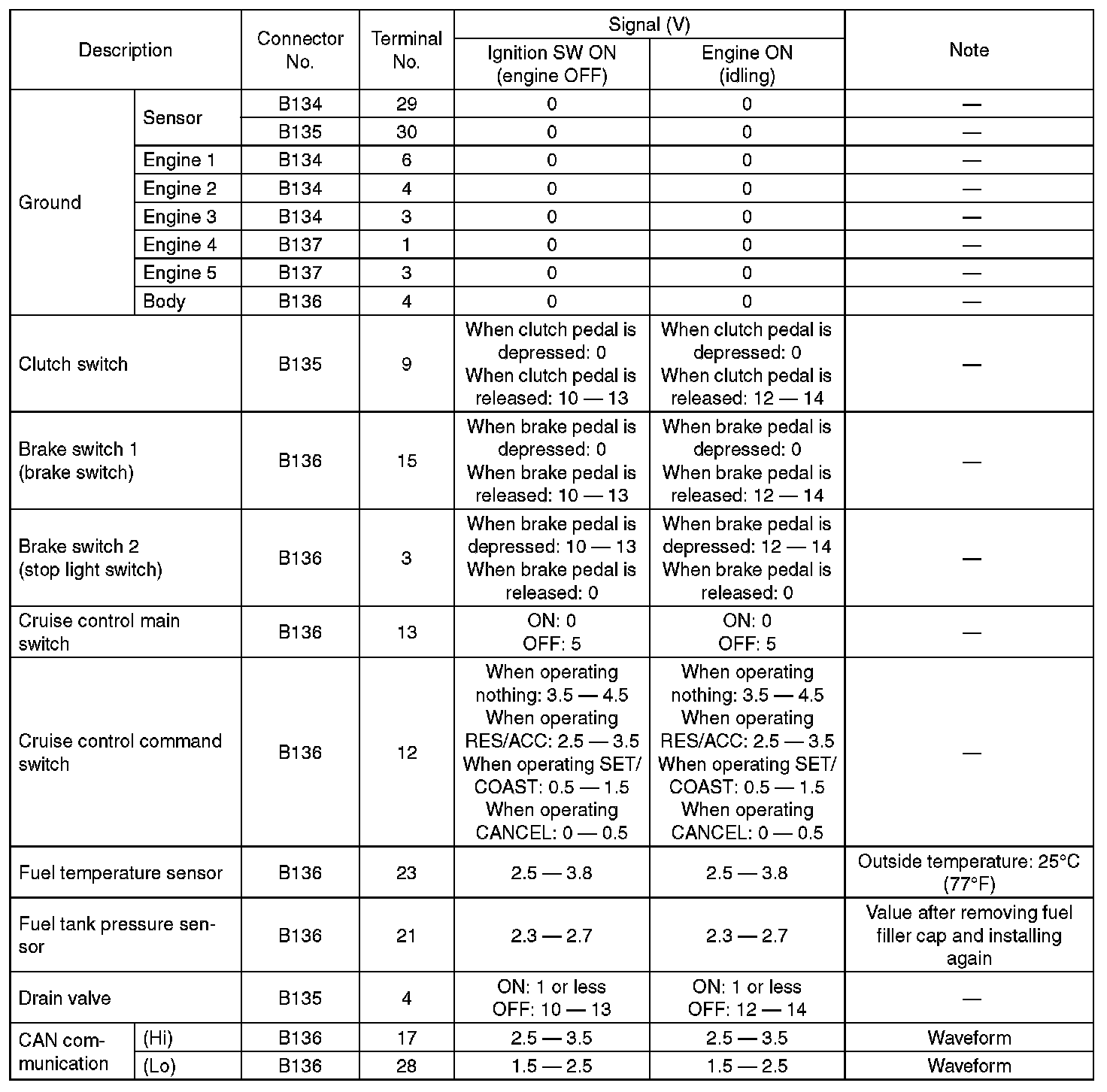

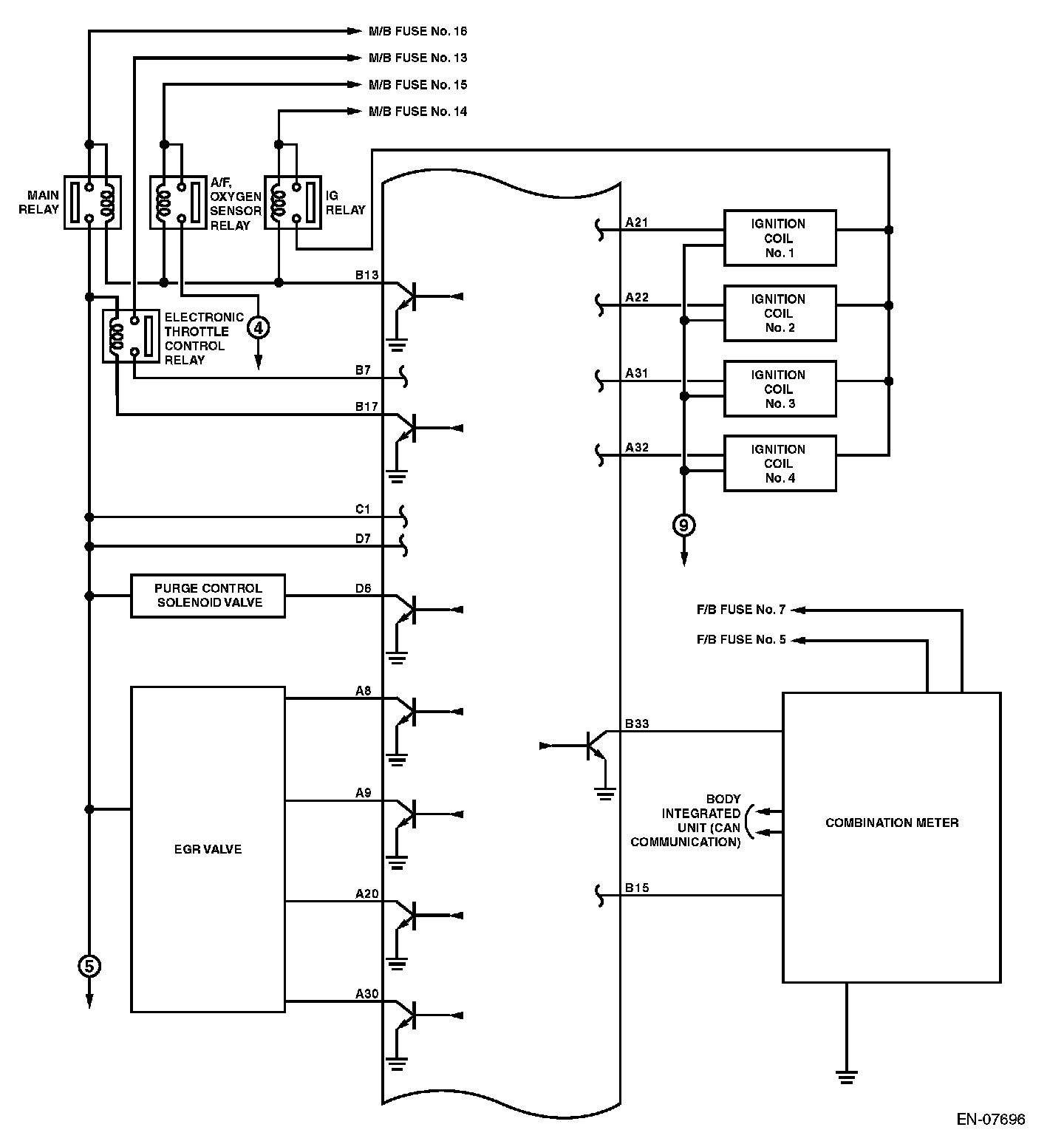

Engine Control Module (ECM) I/O Signal (Part 2):

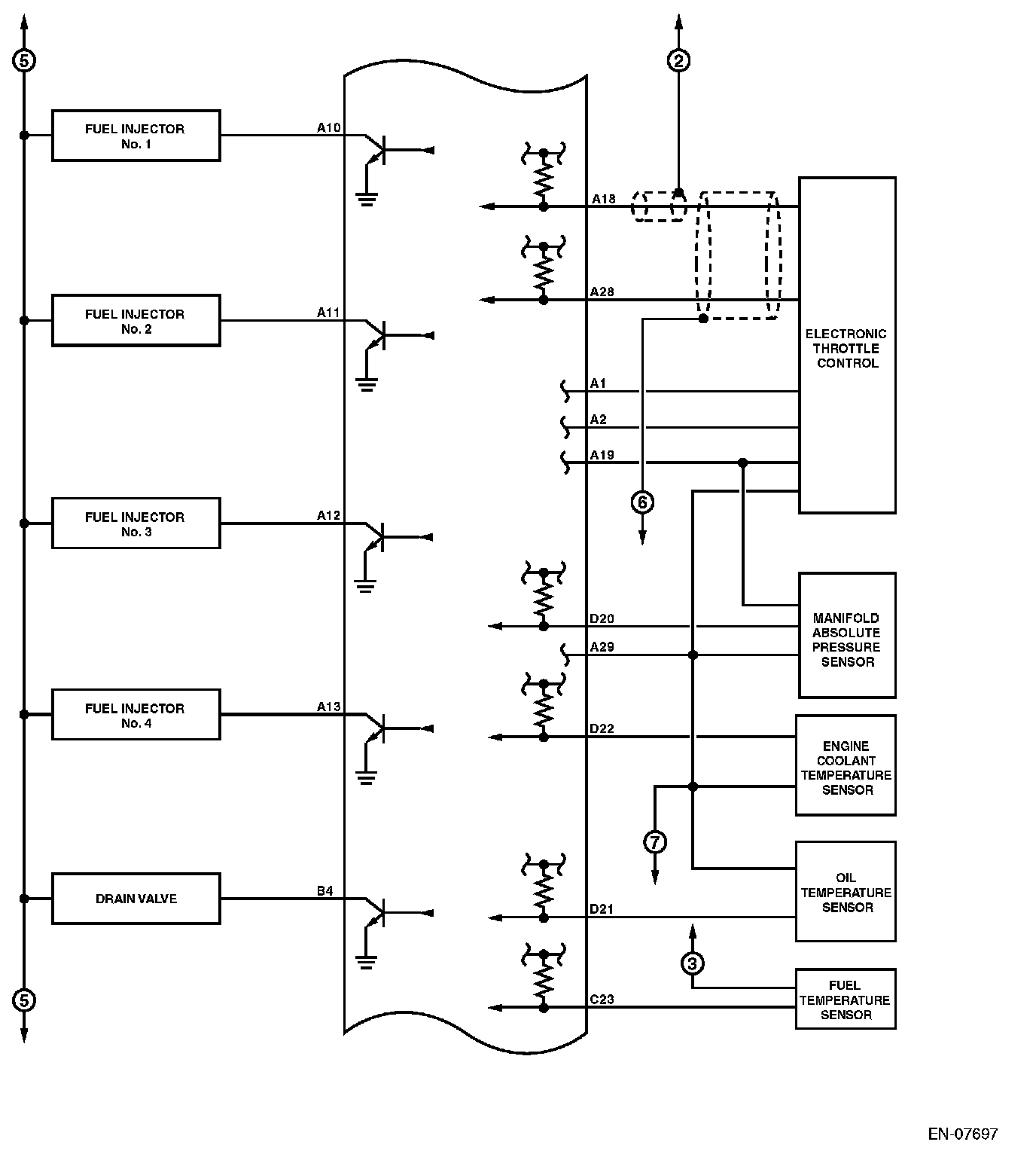

Engine Control Module (ECM) I/O Signal (Part 3):

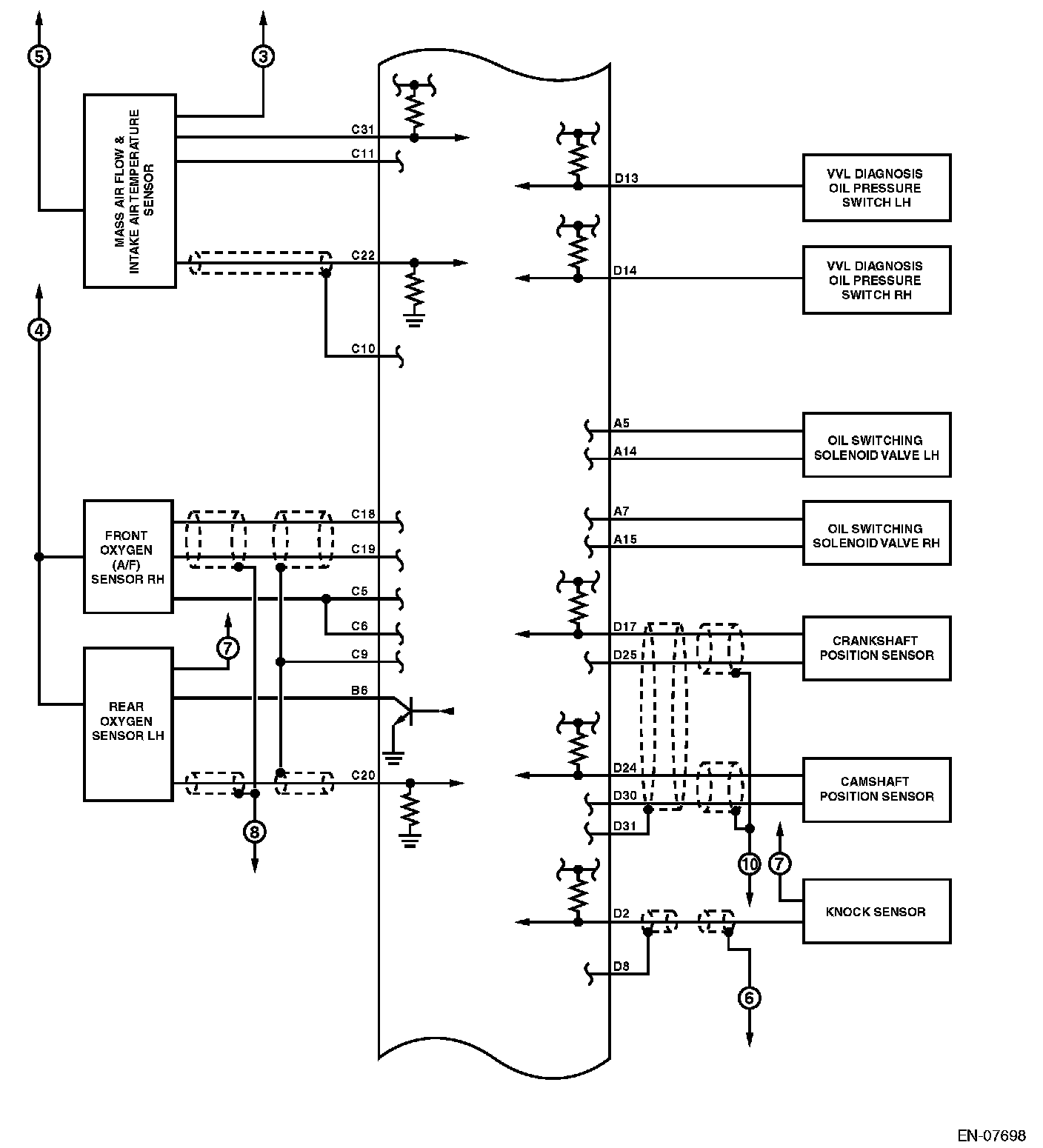

Engine Control Module (ECM) I/O Signal (Part 4):

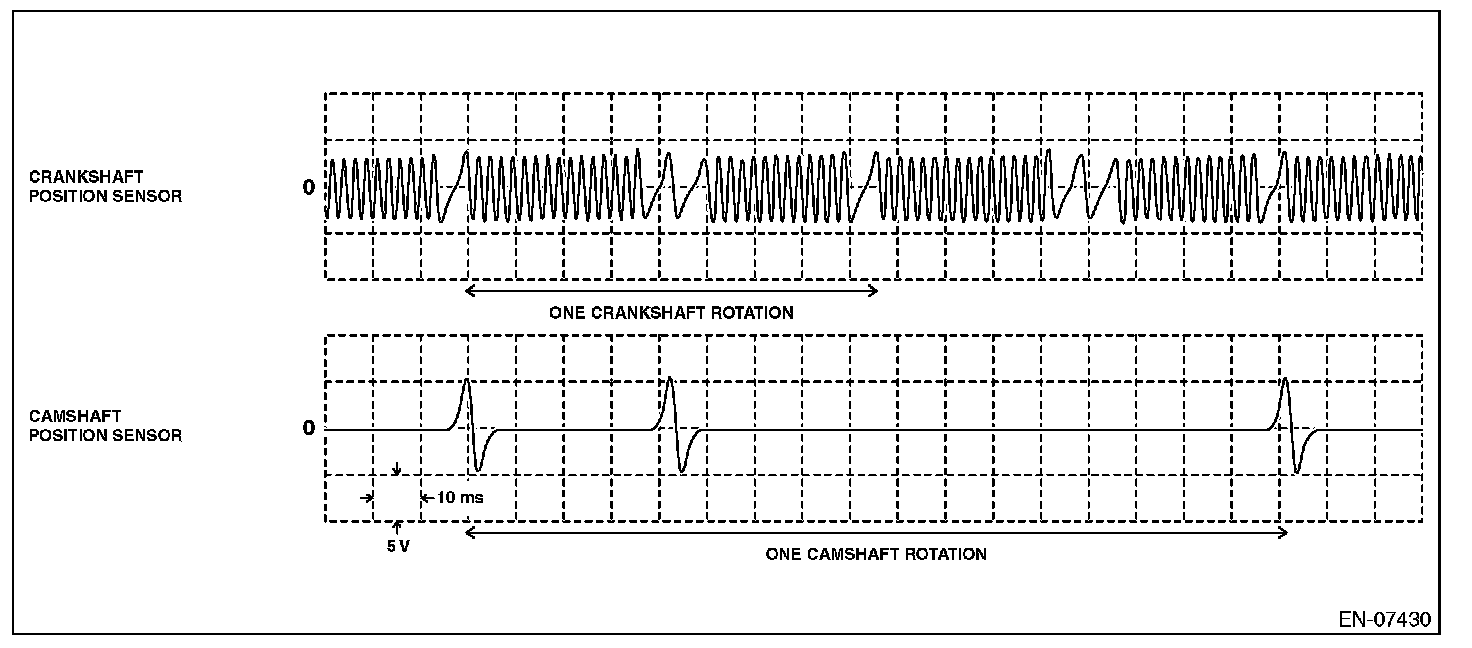

Input/output name:
- Crankshaft position sensor
- Camshaft position sensor
Measuring condition:
- After warming-up
- At idling

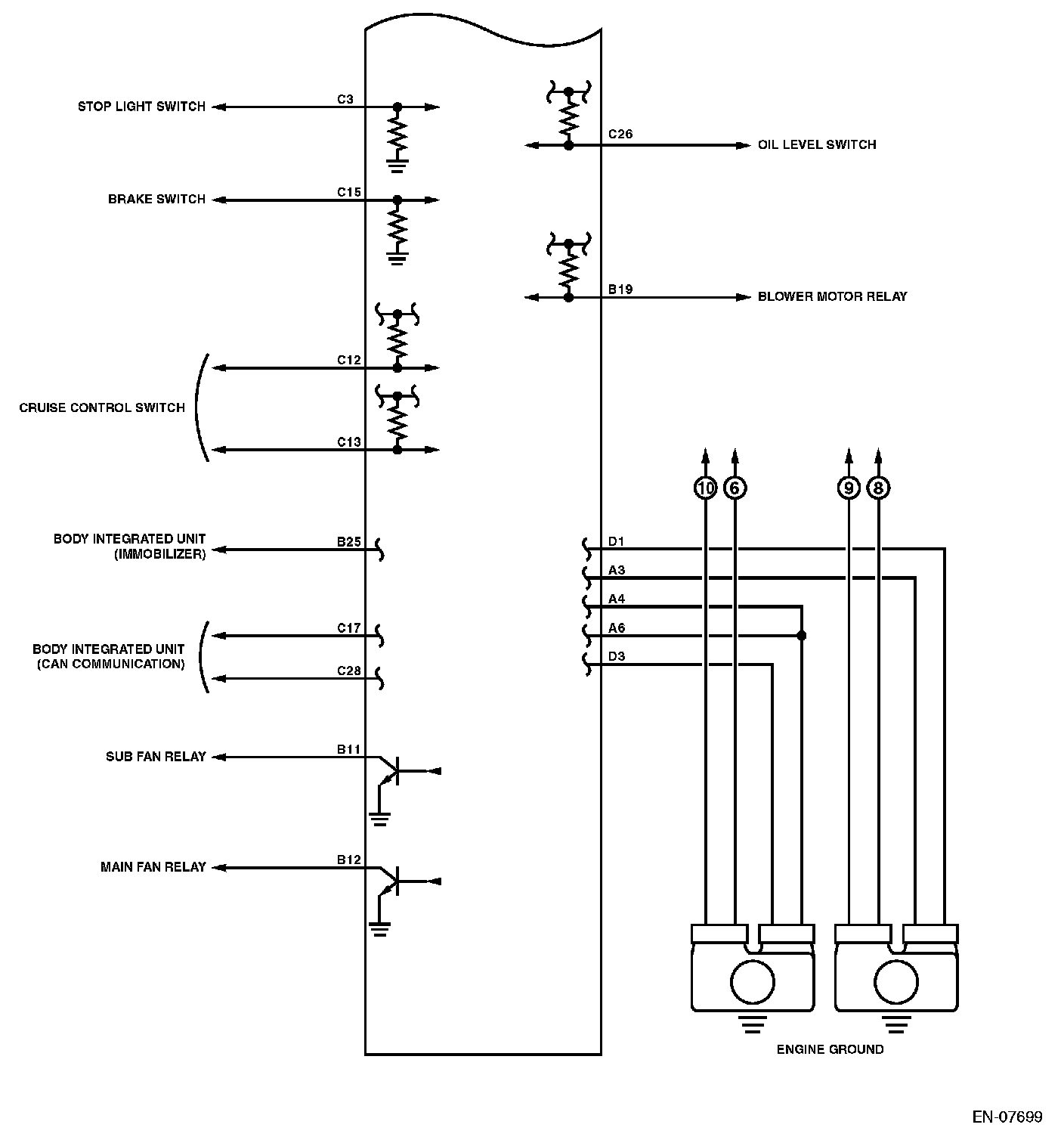

Engine Control Module (ECM) I/O Signal (Part 5):

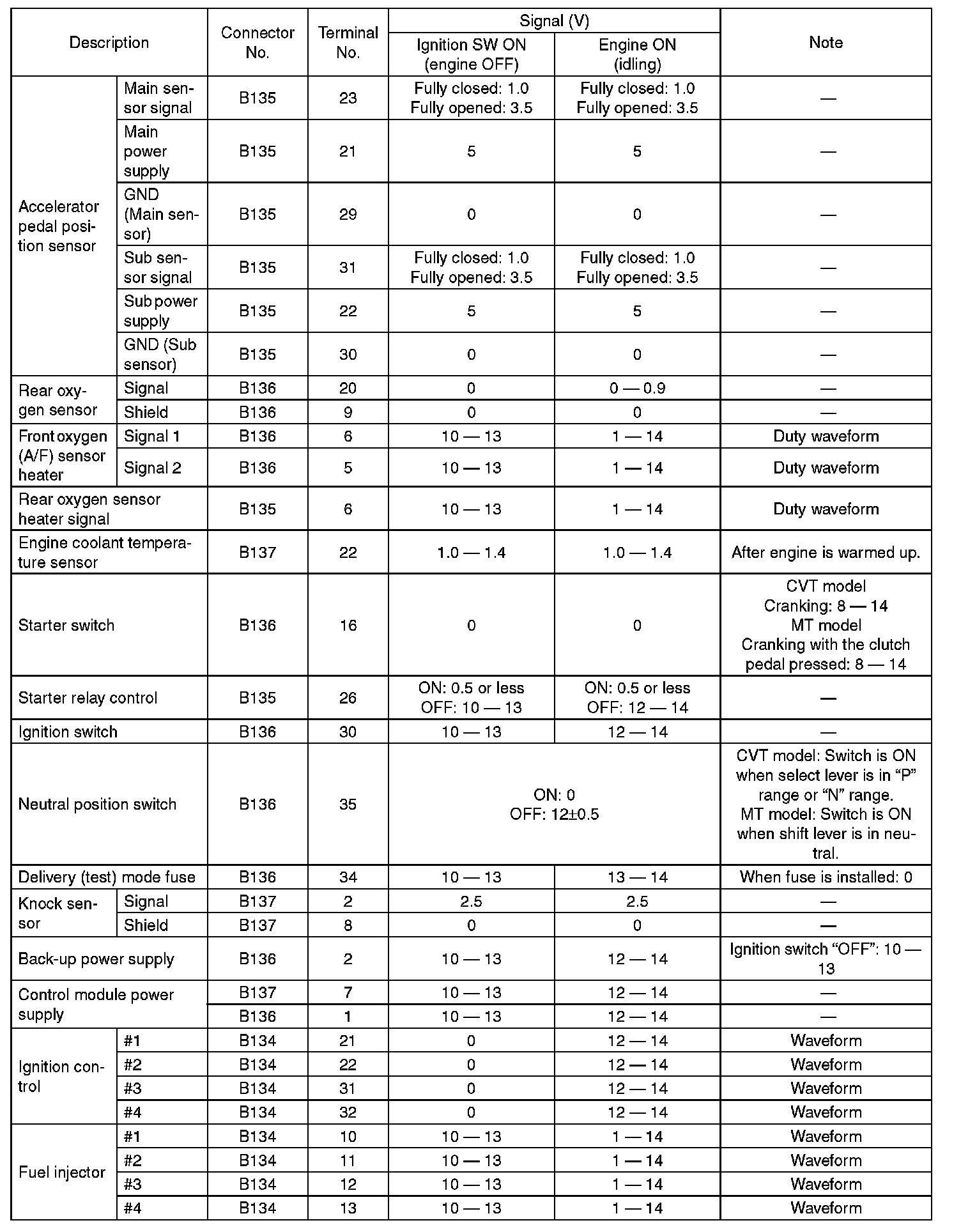

Engine Control Module (ECM) I/O Signal (Part 6):

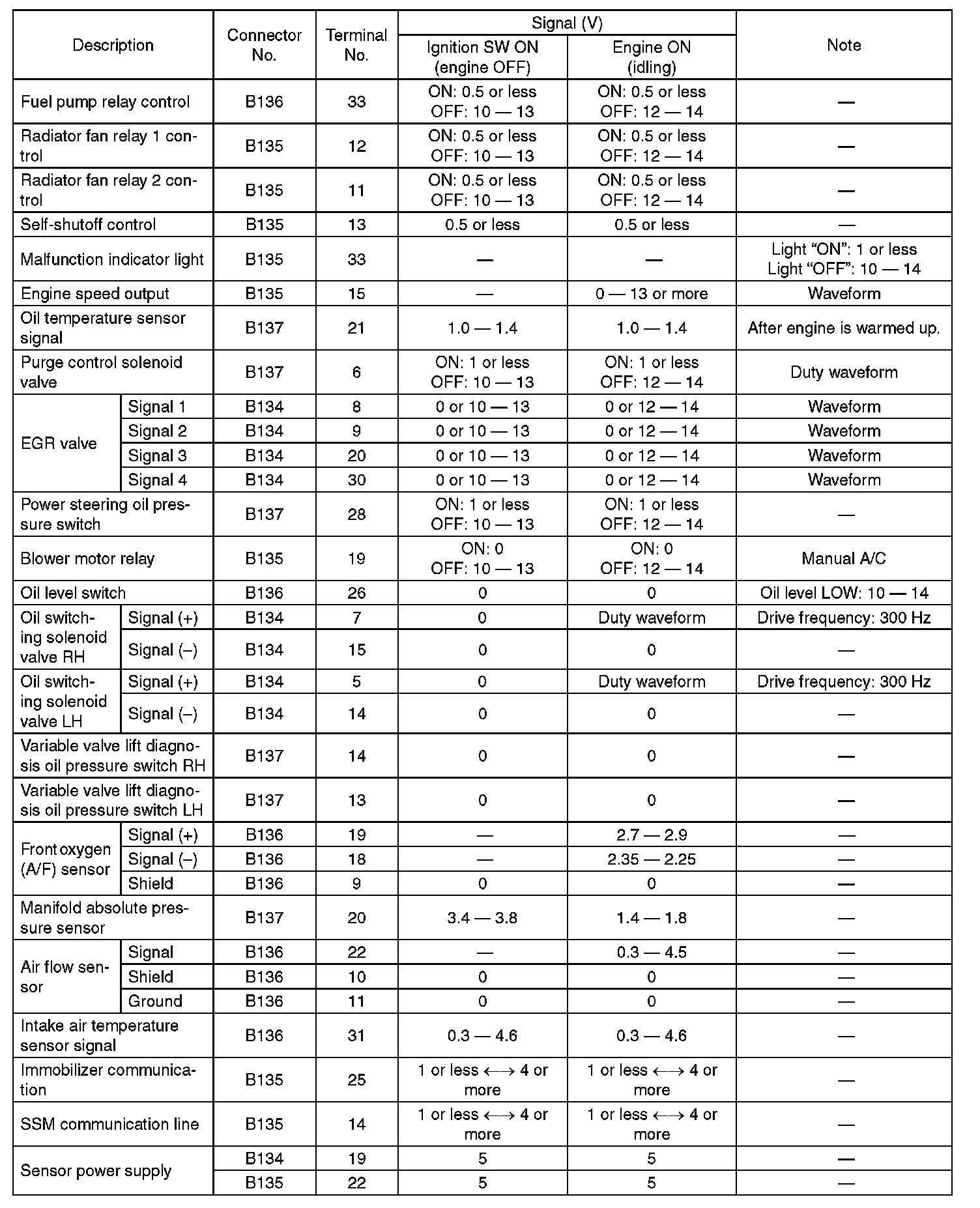

Engine Control Module (ECM) I/O Signal (Part 7):
Engine Control Module (ECM) I/O Signal (Part 8):
Engine Control Module (ECM) I/O Signal (Part 9):
Engine Control Module (ECM) I/O Signal (Part 10):
