EGR Valve: Testing and Inspection

EGR Valve

INSPECTION

1. Check that the EGR valve has no deformation, cracks or other damages.

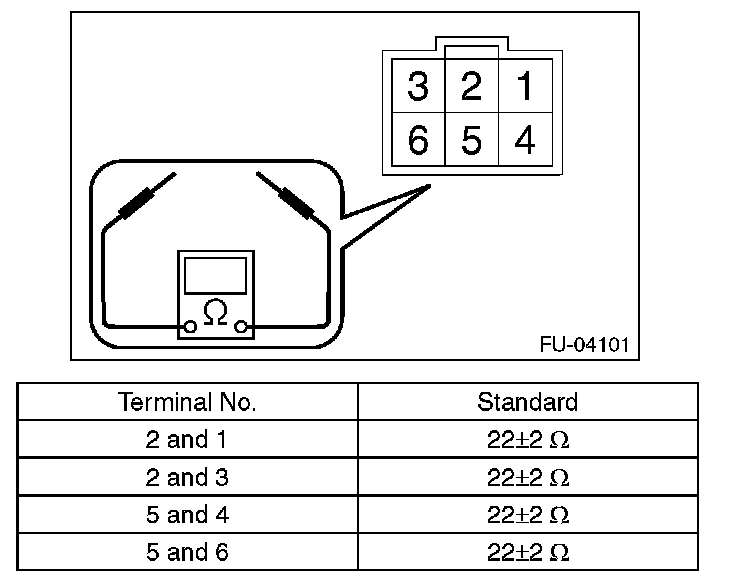

2. Measure the resistance between EGR valve terminals.
