Transmission Control Module (TCM) I/O Signal

Transmission Control Module (TCM) I/0 Signal

ELECTRICAL SPECIFICATION

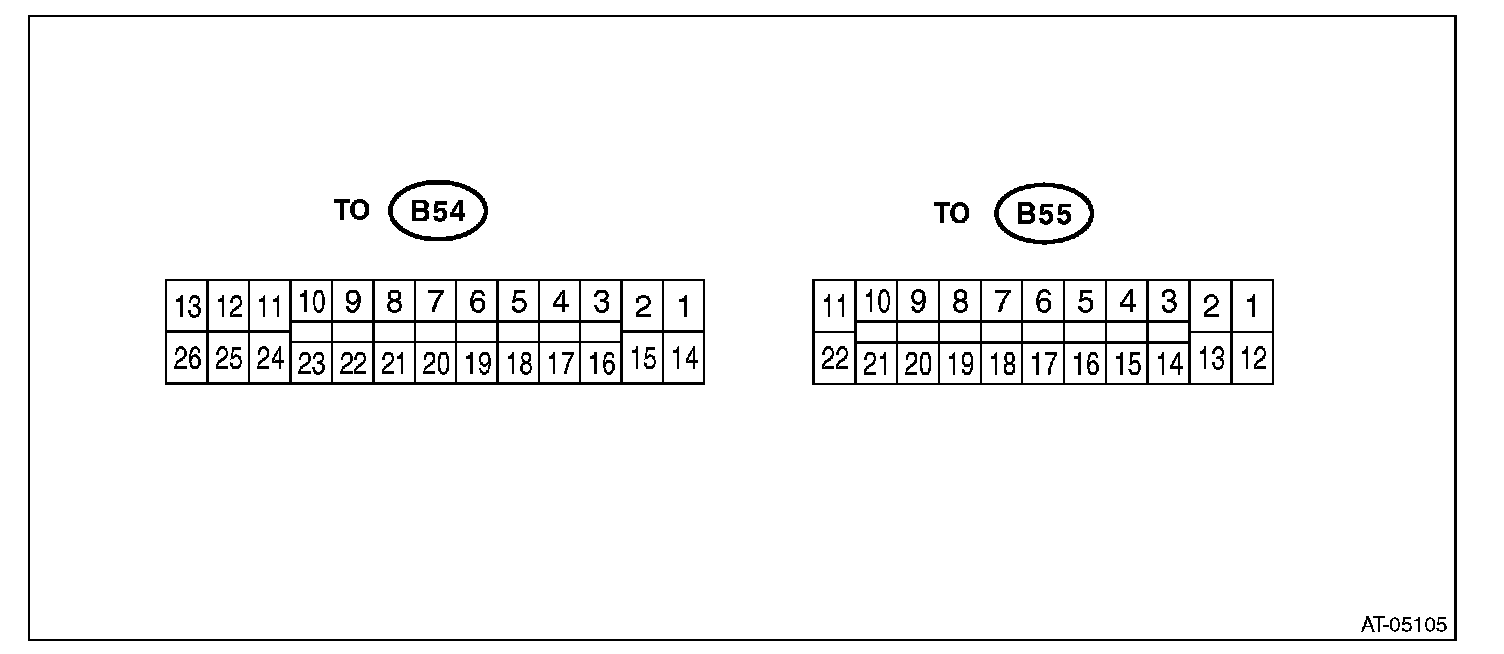

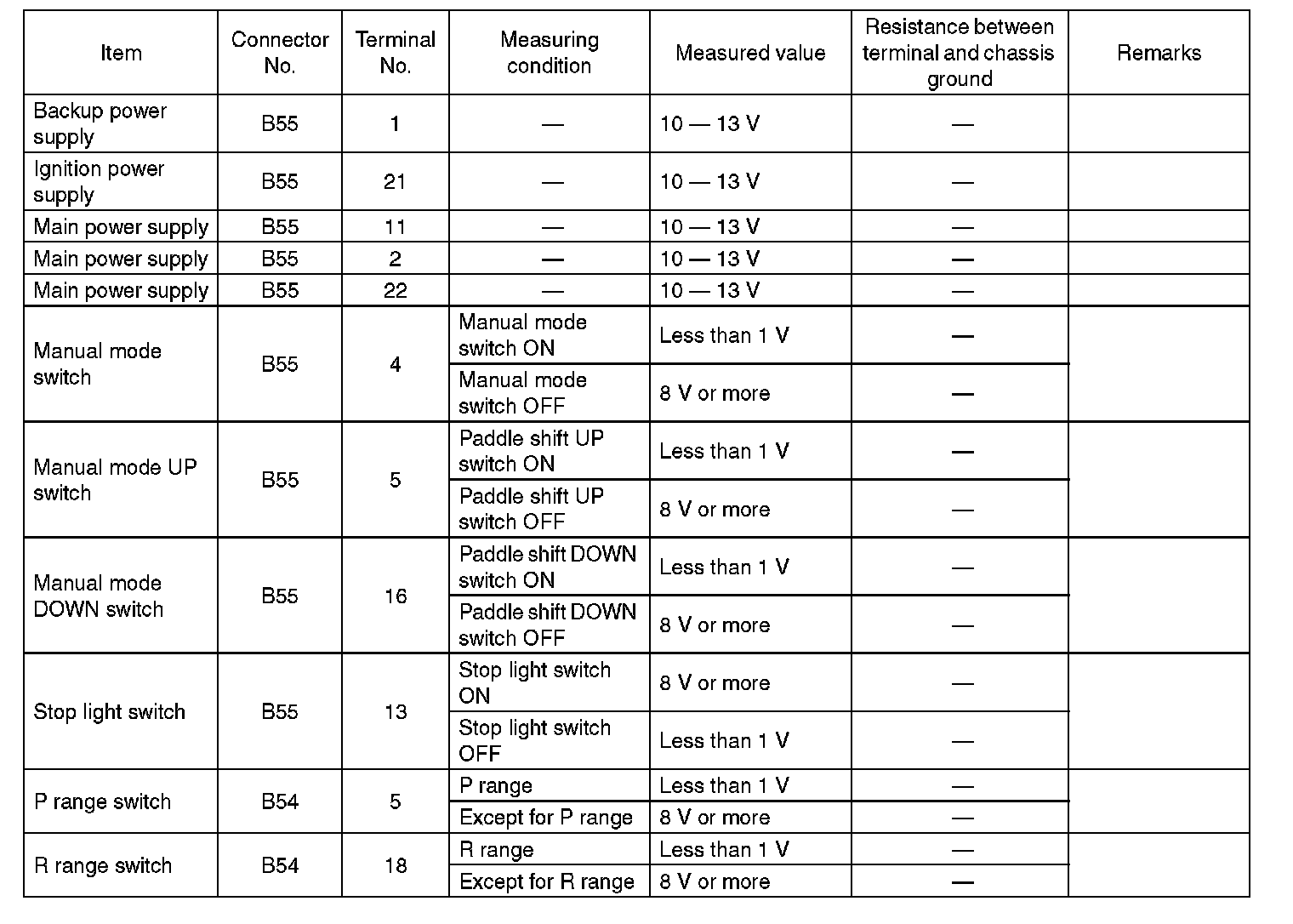

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 1):

NOTE:
Measure after warming up.

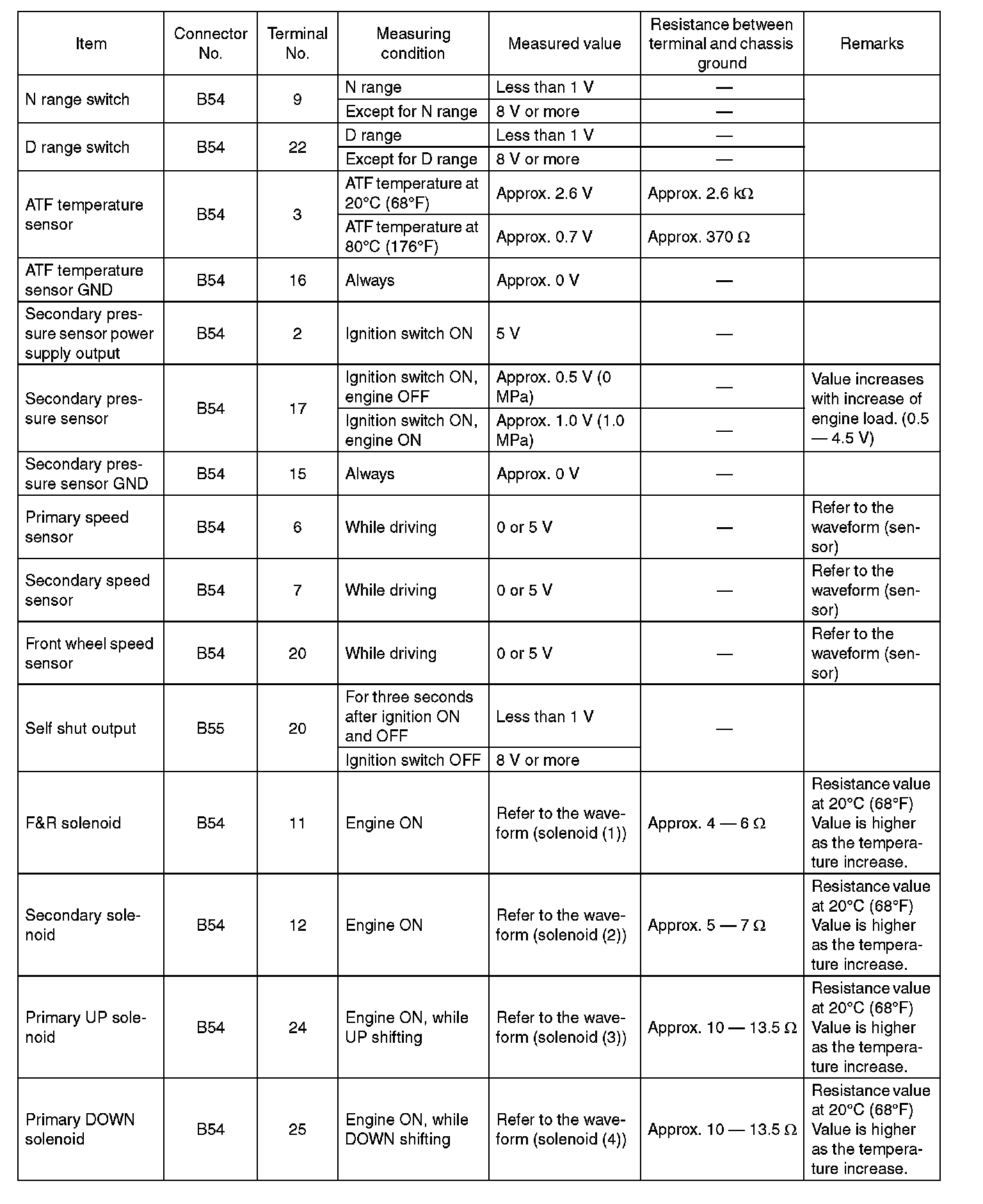

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 2):

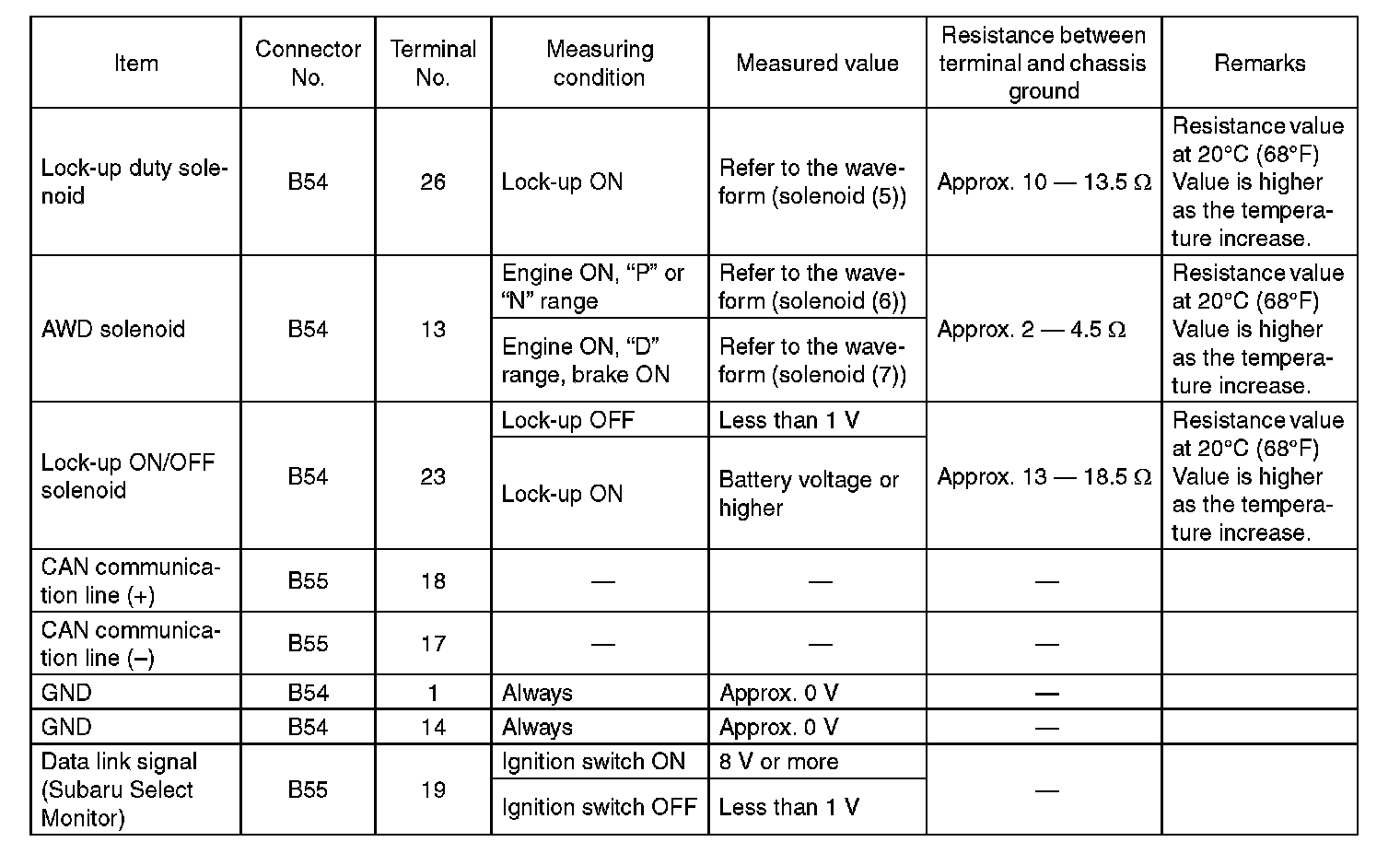

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 3):

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 4):

WAVEFORM

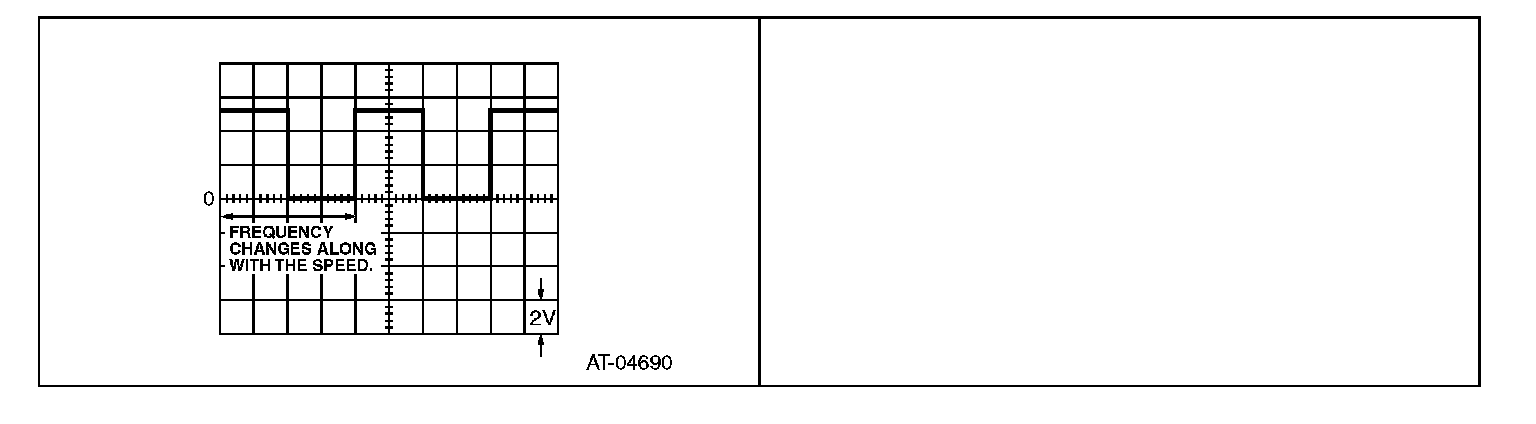

Sensor Waveform:

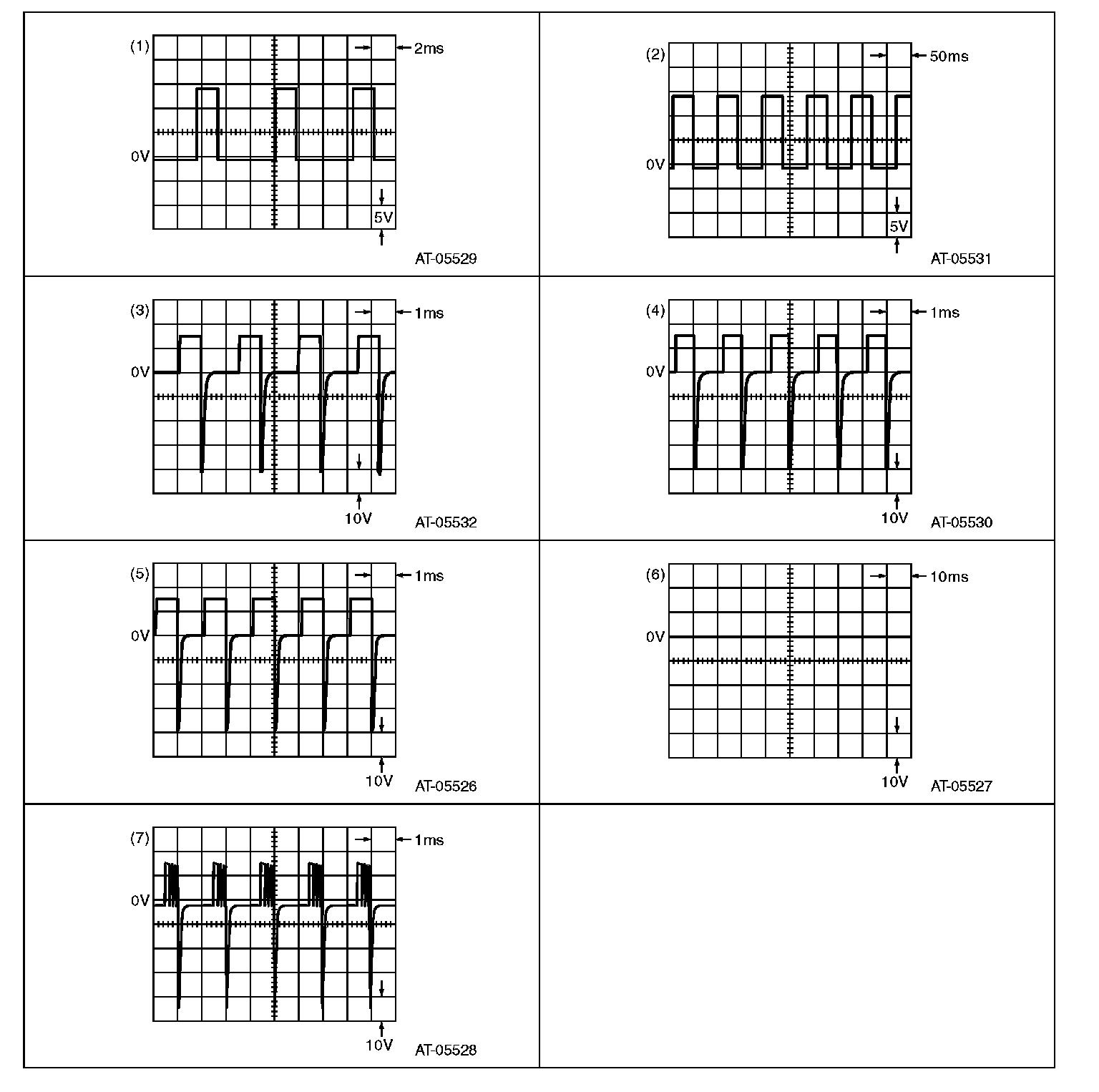

Solenoid Waveform:
