Restraints and Safety Systems: Adjustments
Roll ConnectorADJUSTMENT
CAUTION:
- Do not rotate the roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.
- When determining the end stop, rotate the connector slowly without applying excessive force. Applying excessive force at the end stop may break the internal wire.
1. Check that front wheels are positioned in straight ahead direction.
2. Rotate the roll connector counterclockwise until it stops.

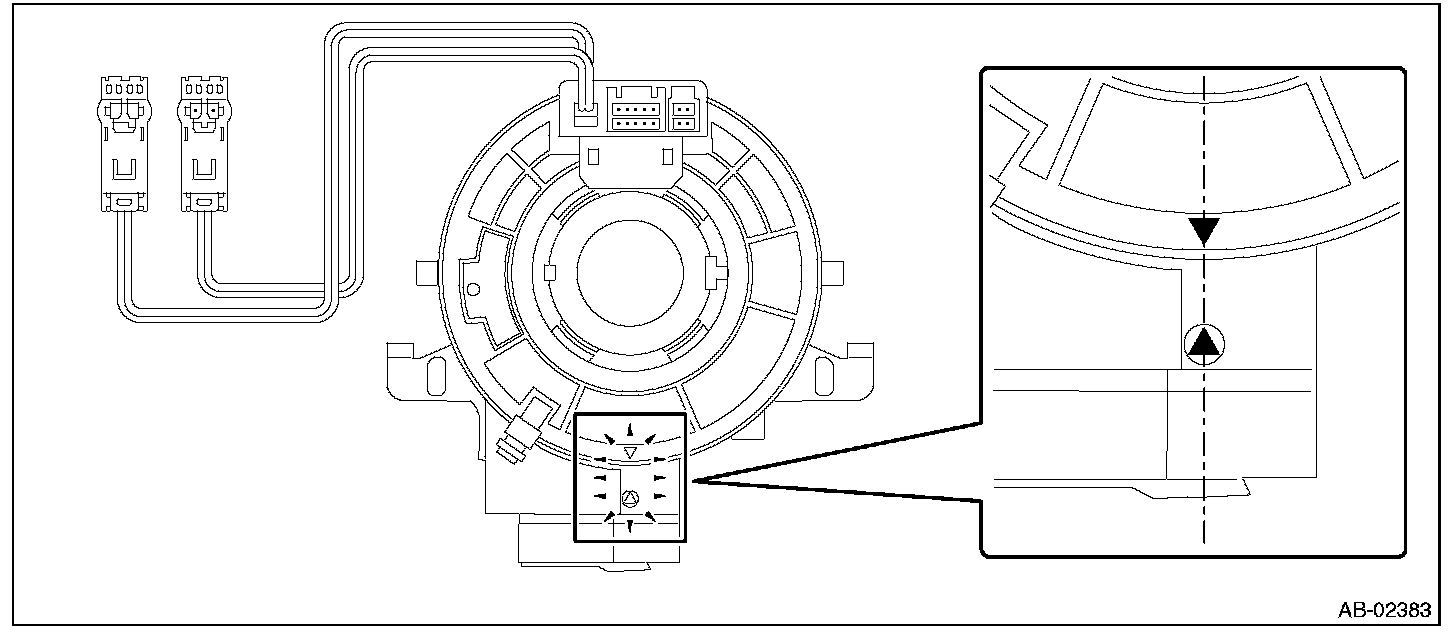

3. Rotate the roll connector clockwise approx. 3 turns until ""/_\" marks are aligned.
