Combination Meter System
Combination Meter System
ELECTRICAL SPECIFICATION

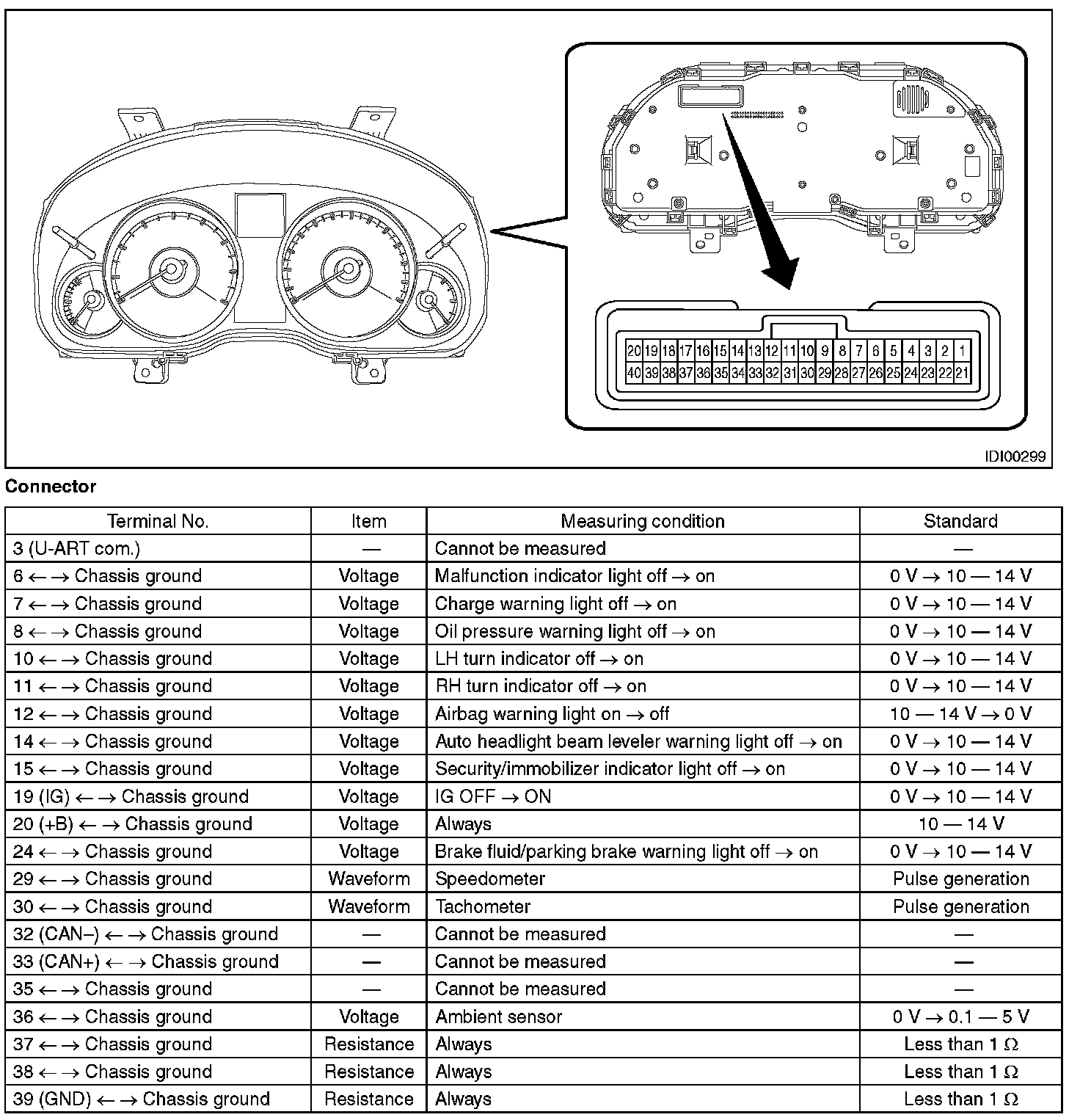

COMBINATION METER TERMINAL ARRANGEMENT
Combination Meter Terminal Arrangement:
