Removal and Replacement

Generator

REMOVAL

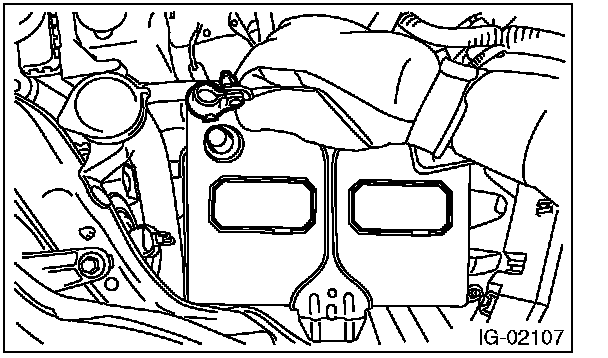

1. Disconnect the ground cable from battery.

2. Remove the V-belts.

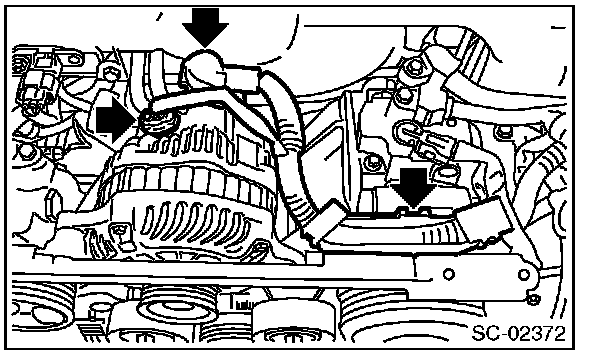

3. Disconnect the connector and terminal from generator.

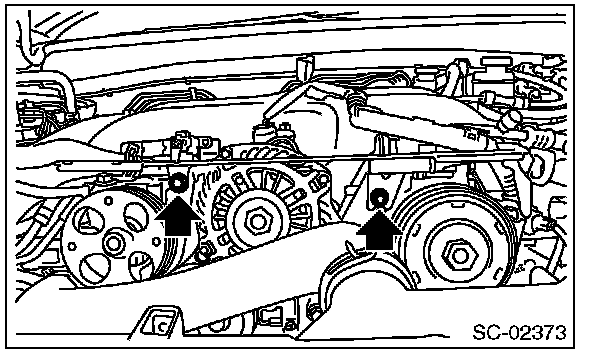

4. Remove the collector cover bracket or v-belt cover bracket.

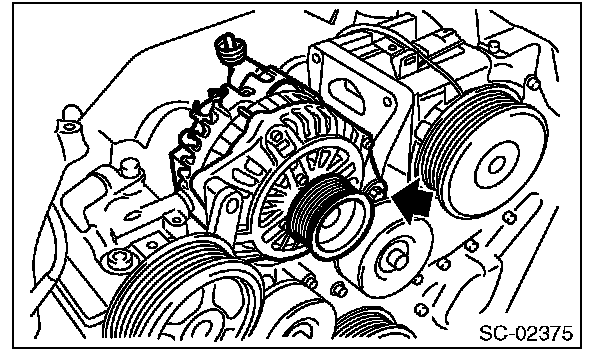

5. Remove the generator from the bracket.

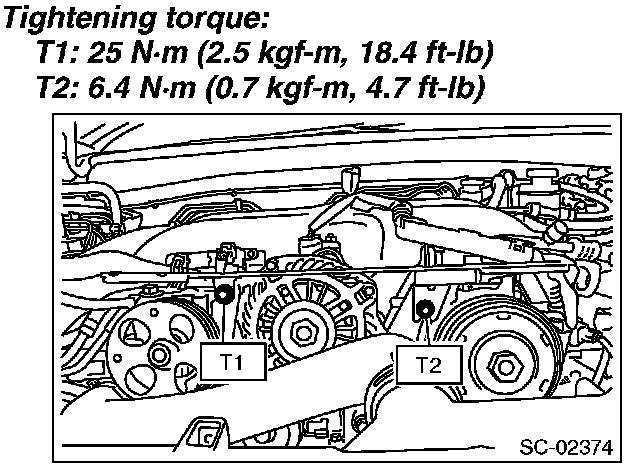

INSTALLATION

Install in the reverse order of removal.
