A/T Controls - Low Power In Reverse On An Incline

NUMBER: 16-77-09
DATE: 08/03/09

APPLICABILITY:
2010 MY Legacy and Outback equipped with Lineartronic(TM) CVT (Continuously Variable Transmission)

SUBJECT:
TCM Reprogramming Files

INTRODUCTION

This is to announce that TCM reprogramming files are now available to rectify a lack of power in reverse when on a steep incline.

Note:
TCM reprogramming files were sent to all SDS users in the July, 2009 SSMIII Update version 1.19.37.7

COUNTERMEASURE IN PRODUCTION

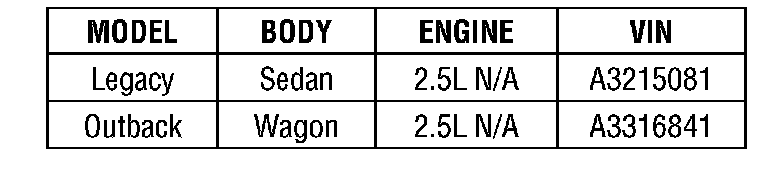

The new TCM logic has been used in production from July 24, 2009, starting with the VINs shown.

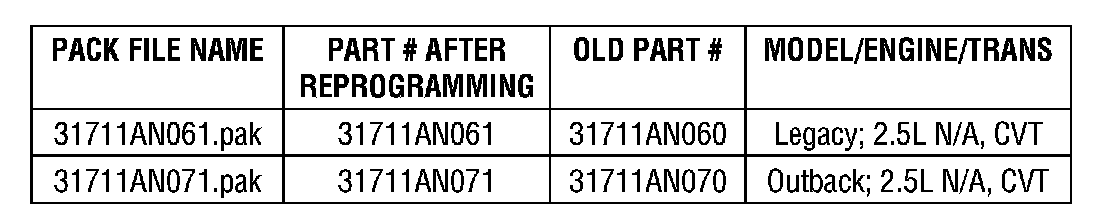

PACK FILE APPLICABILITY

Note:
After reprogramming, the Transmission Learning Control does not need to be performed.

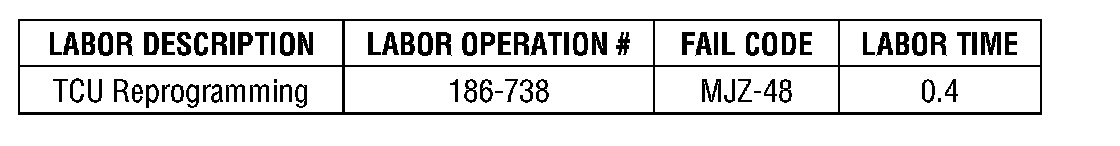

WARRANTY/CLAIM INFORMATION
