Valve Body: Testing and Inspection

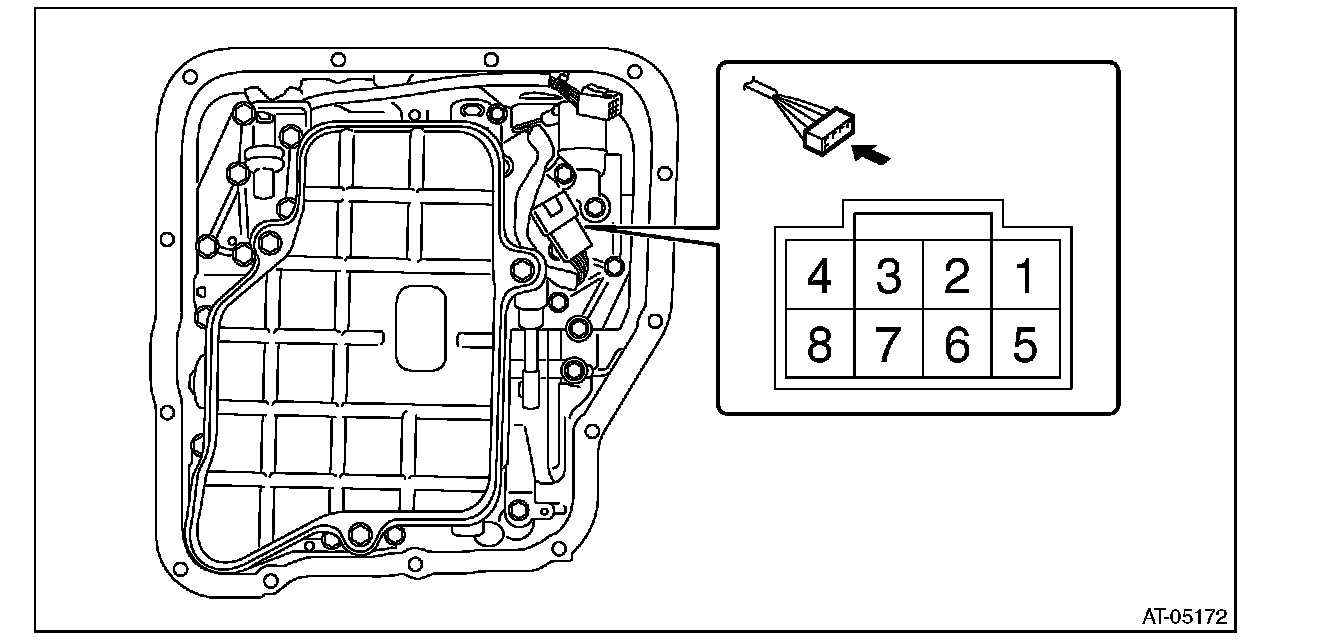

Control Valve BodyINSPECTION ^
Check each part for damage or dust.
^

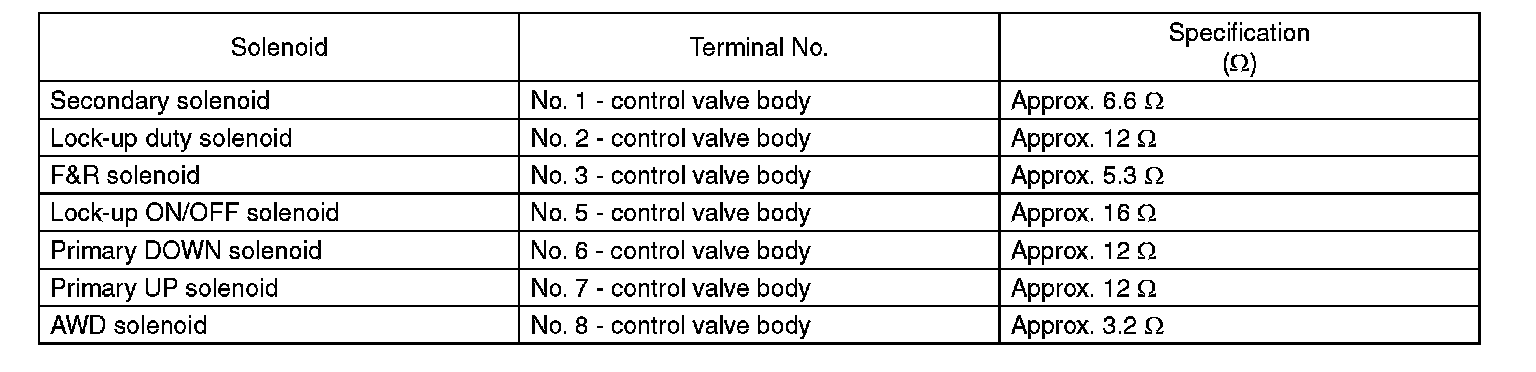

Check oil strainer for clogging. Measure the resistance of each solenoid.
NOTE: Measurement should be performed at a temperature of 20 degrees C (68 degrees F).
