Heated Glass Element: Service and Repair

REAR WINDOW DEFOGGER SYSTEM

REPAIR

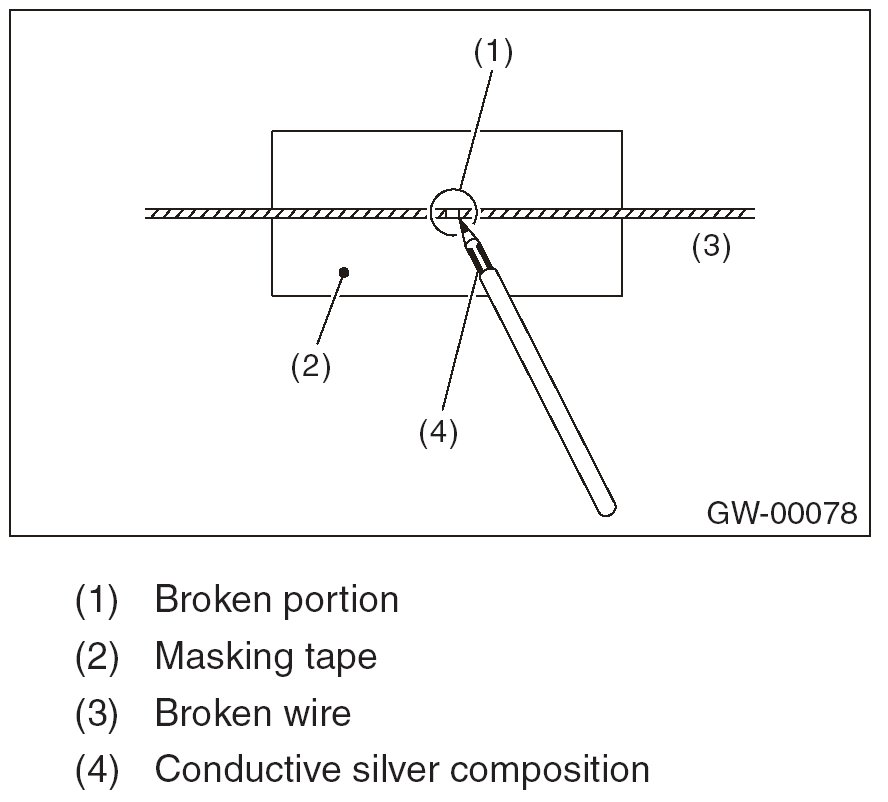

1. Clean the broken portion with alcohol or white gasoline.
2. Mask both side of wire with masking tape.
3. Apply conductive silver composition to the damaged point.

Conductive silver composition:
Permatex
QUICK GRID

4. After applying conductive silver composition, dry it using a drier.
5. After repair, check the wire.
