Windows and Glass: Testing and Inspection

INSPECTION

1. CHECK FUSE.
1. Remove the fuse and check visually.
2. If the fuse is blown out, replace the fuse.

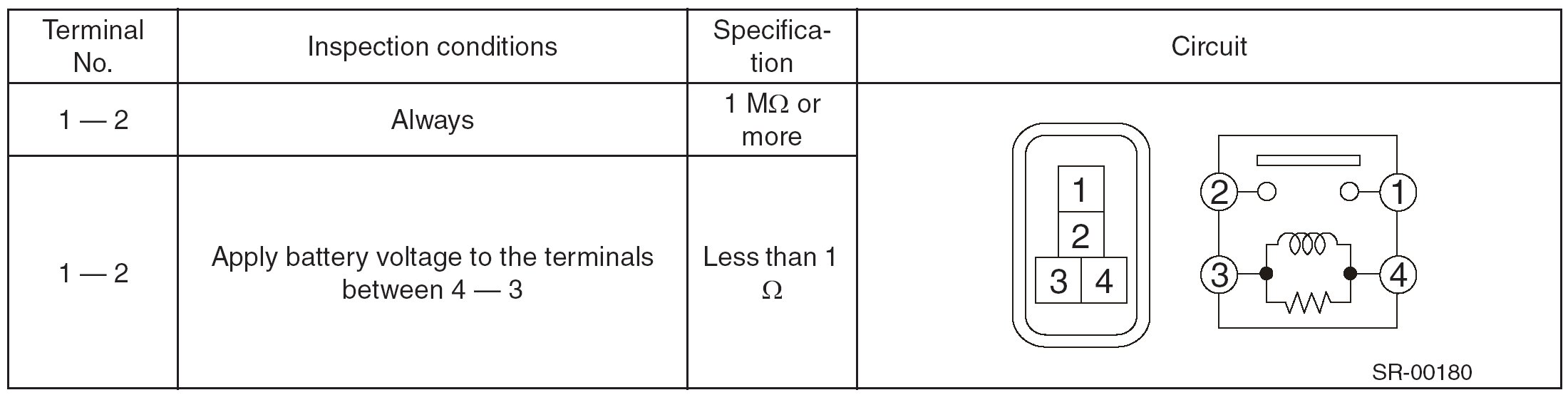

2. CHECK RELAY
1. Check the resistance between relay terminals.

2. Replace the relay if it is found defective.

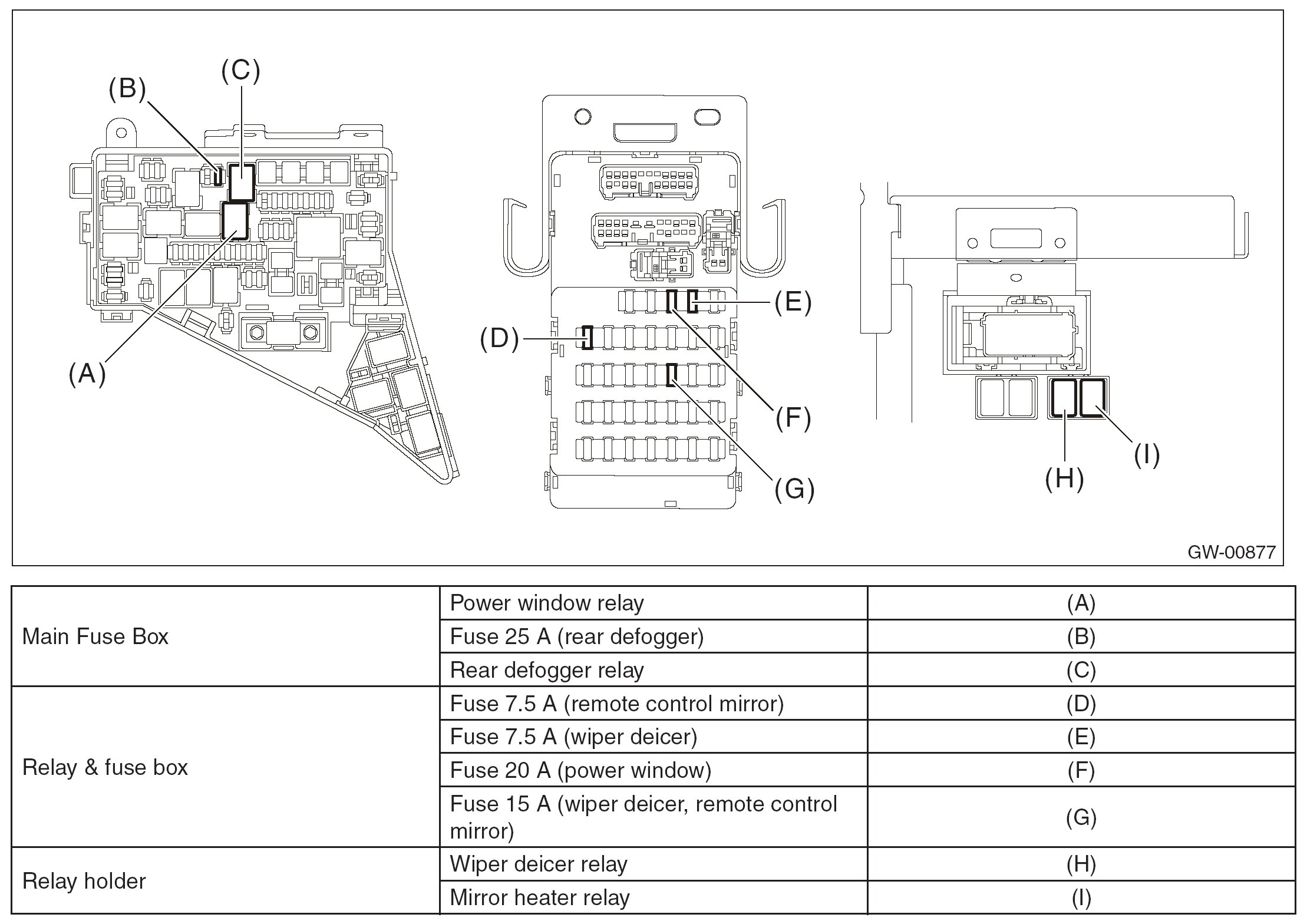

RELAY AND FUSE

LOCATION
