Power Window Motor: Testing and Inspection

FRONT REGULATOR AND MOTOR ASSEMBLY

INSPECTION

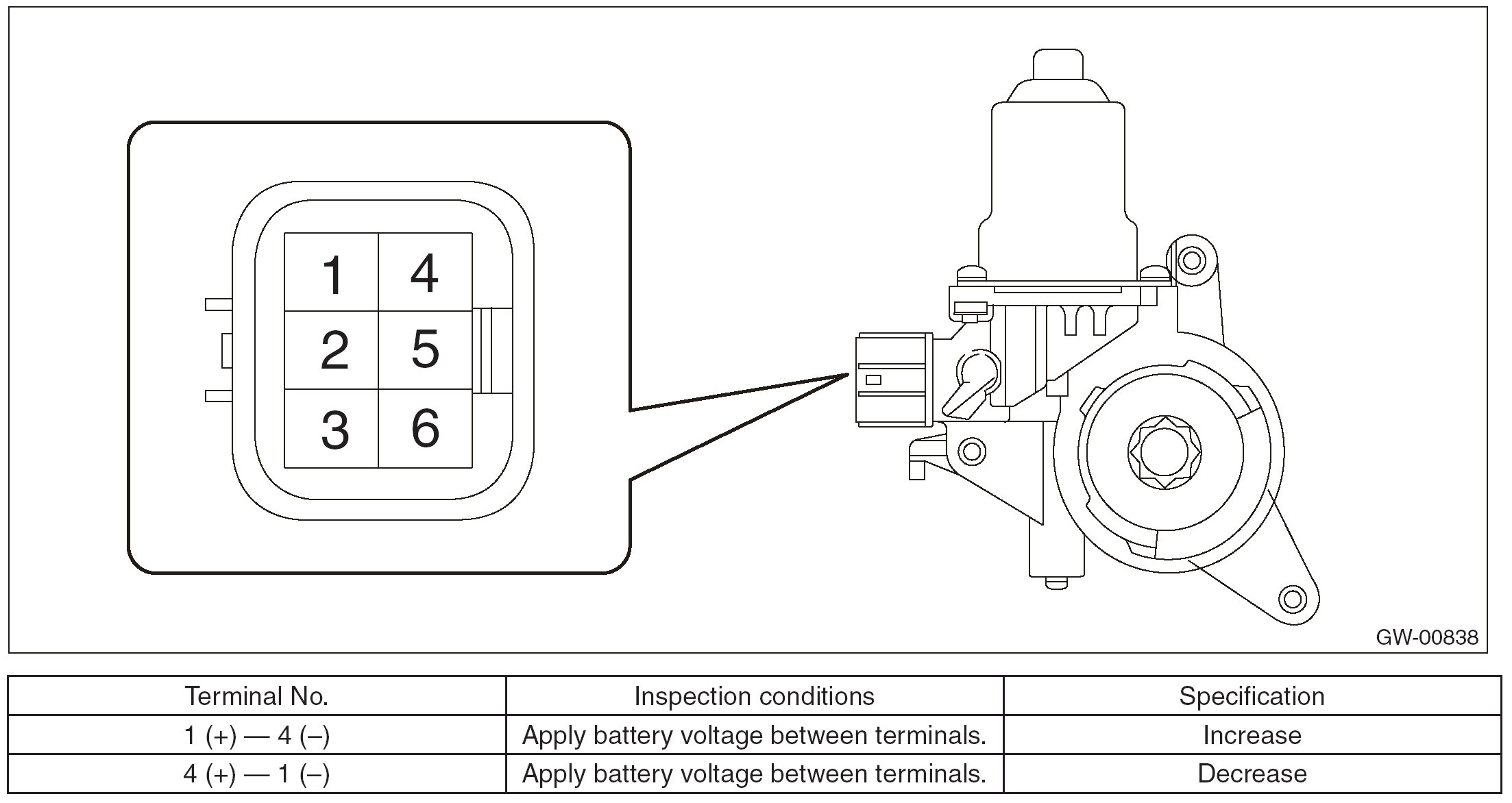

1. Disconnect the motor connector.
2. Apply battery voltage between the motor connector terminals and check the motor operation.

3. If the inspection results in improper operation, replace the front regulator and motor assembly.
