Front Door Window Regulator: Service and Repair

FRONT REGULATOR AND MOTOR ASSEMBLY

REMOVAL

1. Remove the front door glass.

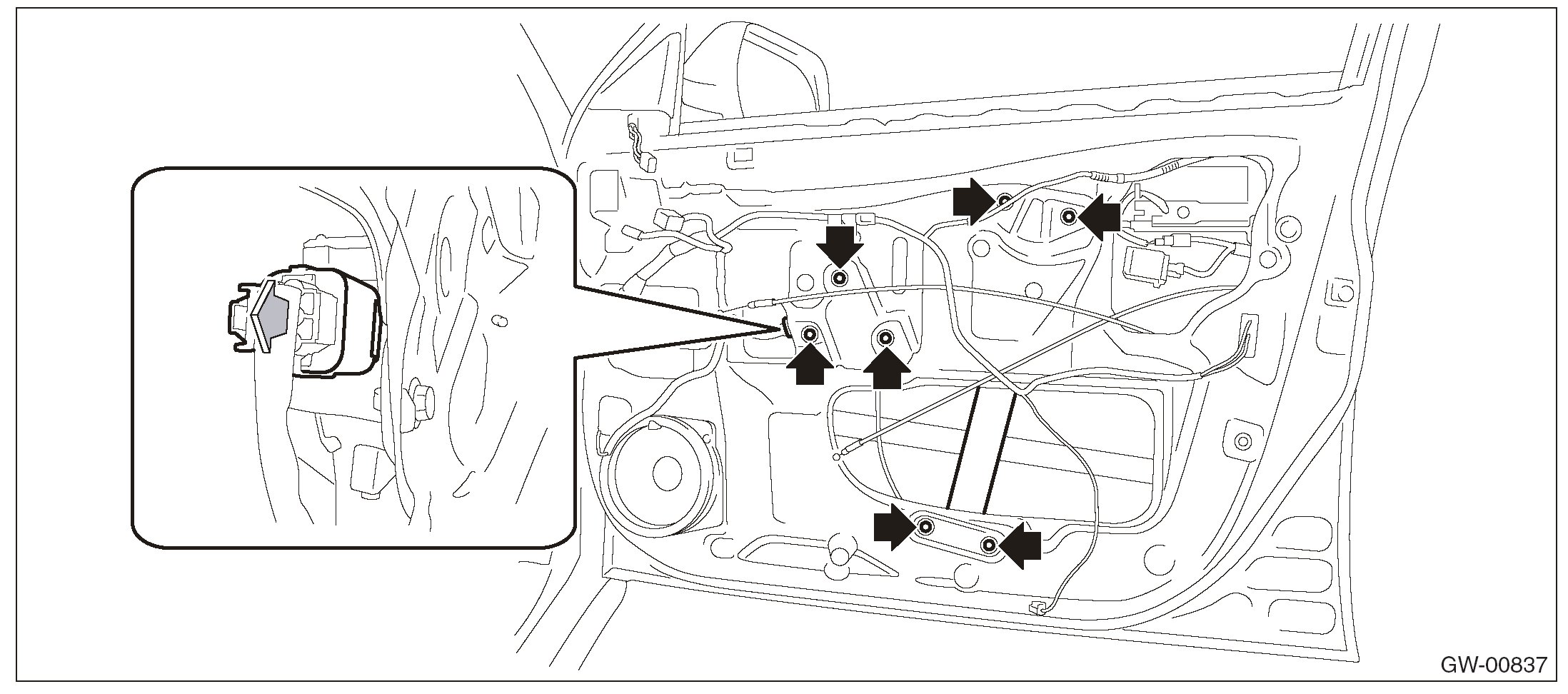

2. Remove the front regulator and motor assembly.
1. Disconnect the connector.
2. Remove the bolts, and then remove the front regulator and motor assembly.

INSTALLATION

Install each part in the reverse order of removal.

Tightening torque: Refer to "COMPONENT" of "General Description". [Ref. to FRONT DOOR GLASS, COMPONENT, General Description.]
