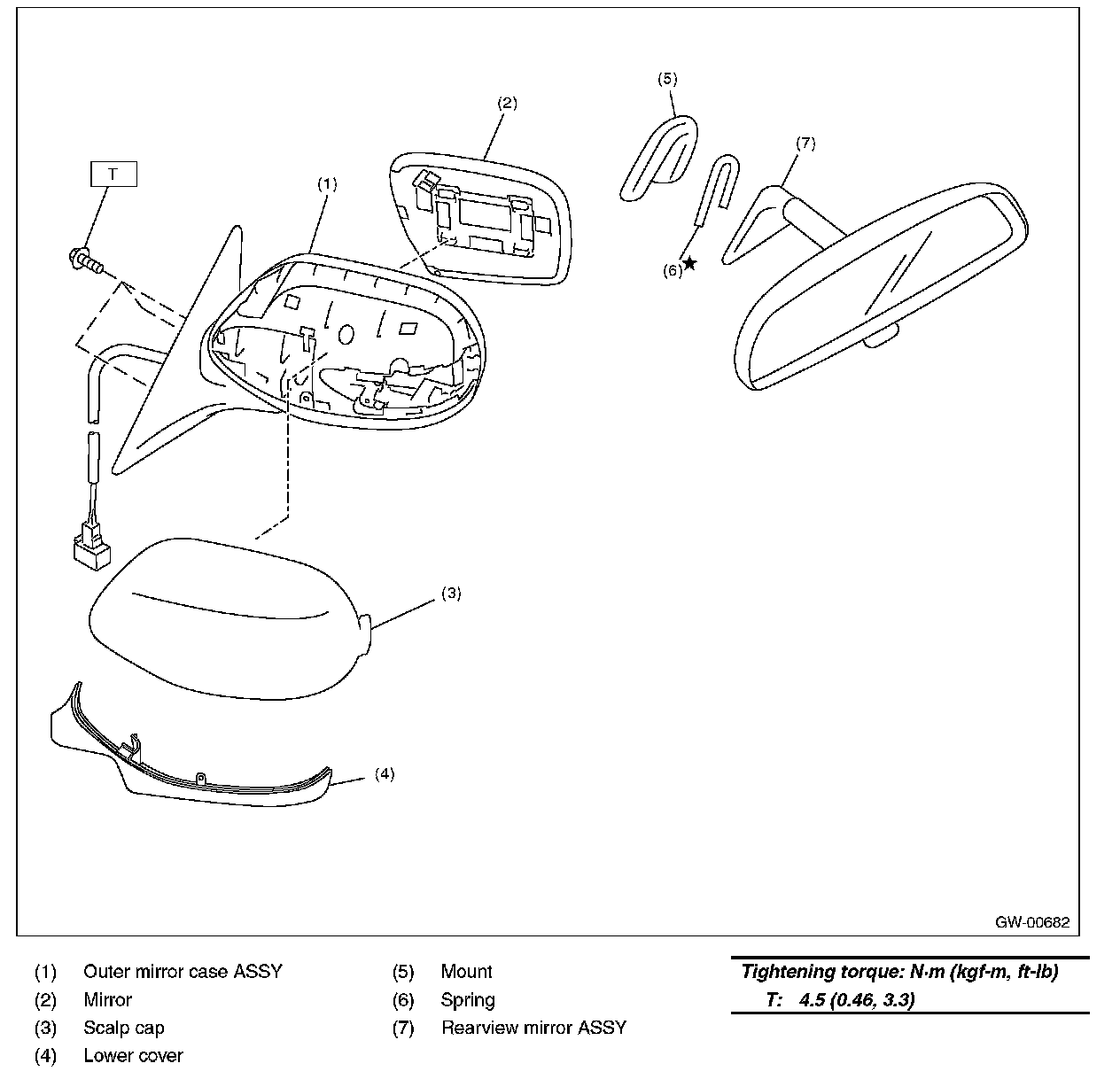

Outer Mirror Assembly
OUTER MIRROR ASSEMBLYMirror:
REMOVAL 1.
Remove the front door trim.
2.
Disconnect the outer mirror connector.
3.

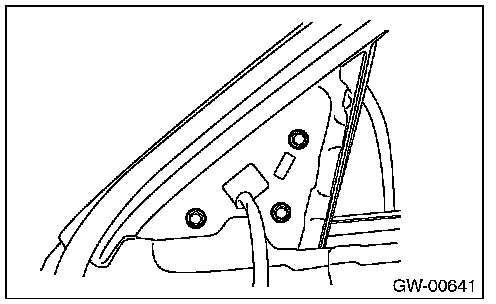

Remove the bolts to remove outer mirror assembly.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 4.5 N.m (0.46 kgf-m, 3.3 ft-lb)
