In-Vehicle Sensor (Auto A/C Model)
In-vehicle Sensor (Auto A/C Model)REMOVALCAUTION: Be careful not to damage the sensors and interior trims when removing. 1.
Disconnect the ground cable from battery.
2.
Remove the instrument panel lower cover.
3.

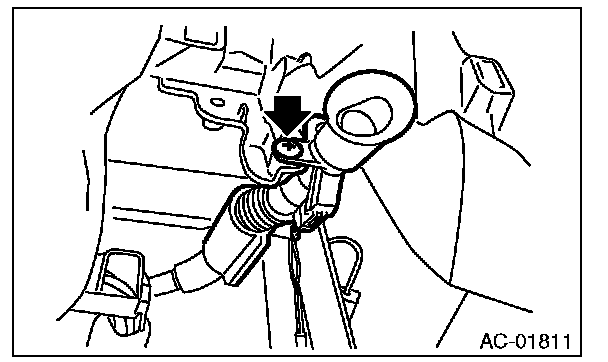

Disconnect the connector and aspirator hose, remove the screw and remove the in-vehicle sensor from the instrument panel.
INSTALLATIONInstall in the reverse order of removal.
