Blower Motor Unit Assembly
Blower Motor Unit AssemblyREMOVAL
1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower.

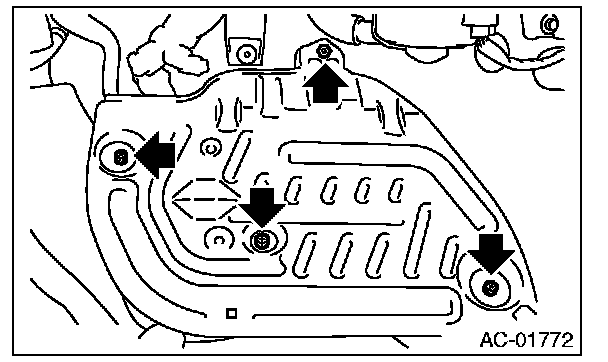

3. Remove the engine ECM protect cover.
4. Disconnect the intake door actuator and blower motor harness connectors.
5. Remove the relay holder.

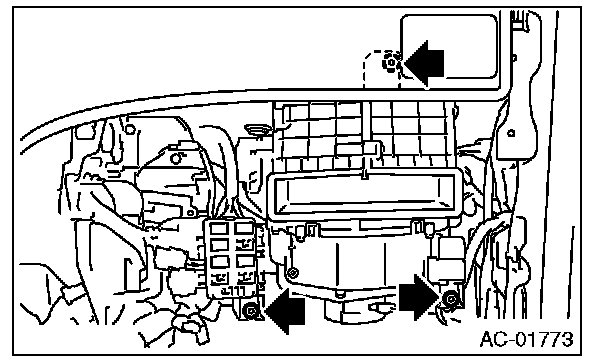

6. Remove the bolts and nuts to remove blower motor unit assembly.
INSTALLATION
Install in the reverse order of removal.
HEATER COOLING UNIT
Tightening torque: N.m (kgf.m, ft.lb)
T1: 5.0 (0.5, 3.7)
T2: 6.68 (0.7, 4.9)
T3: 7.5 (0.76, 5.5)
BLOWER MOTOR UNIT
Tightening torque: N.m (kgf.m, ft.lb)
T: 7.5 (0.76, 5.5)
