Fog/Driving Lamp: Service and Repair
Front Fog Light AssemblyREMOVAL 1.
Disconnect the ground cable from battery.
2.

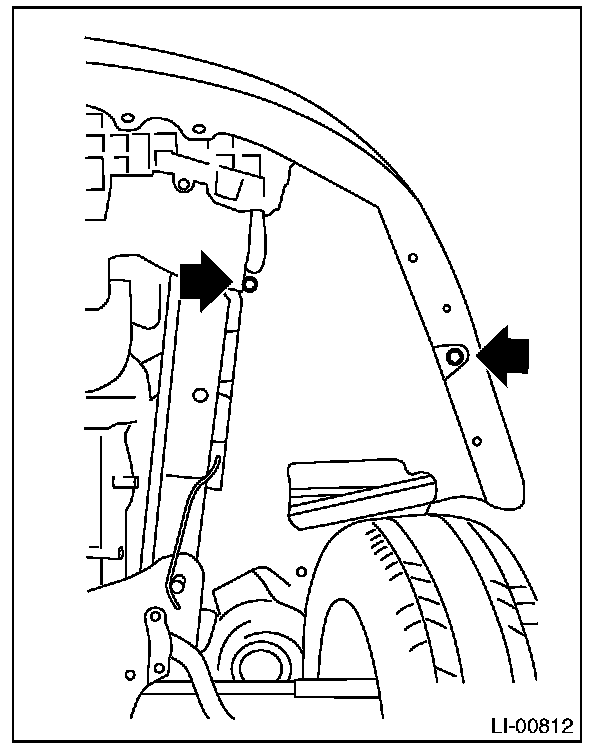

Disengage the two clips, and then turn over the mud guard.
3.
Disconnect the harness connector.
4.

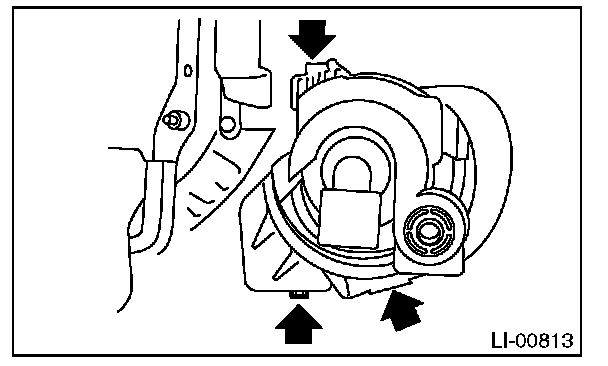

Remove the upper clip and the lower bolt and clip, and then remove the fog light assembly.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
