Map Light: Testing and Inspection
Spot Map LightINSPECTION 1.
SPOT MAP LIGHT BULB 1.
Visually check the bulb for blow out.
2.
Check the bulb specification.
3.
If NG, replace the bulb with a new part.
2.

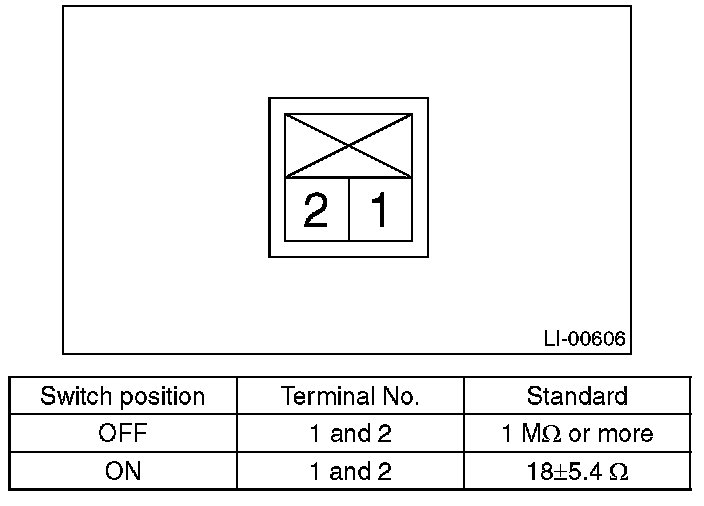

SPOT MAP LIGHT SWITCH Measure the spot map light resistance.
Replace the spot
map light if faulty.
