Combination Switch (Light)
Combination Switch (Light)INSPECTIONMeasure the resistance between
combination switch terminals.
1.

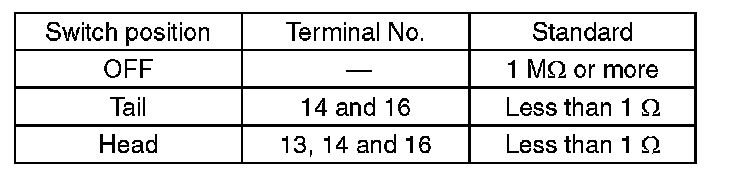

LIGHTING SWITCH Replace the
combination switch (light) if faulty.
2.

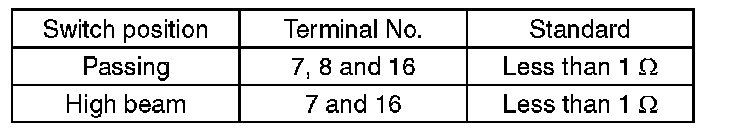

DIMMER & PASSING SWITCH Replace the
combination switch (light) if faulty.
3.
TURN SIGNAL SWITCH Replace the
combination switch (light) if faulty.
4.

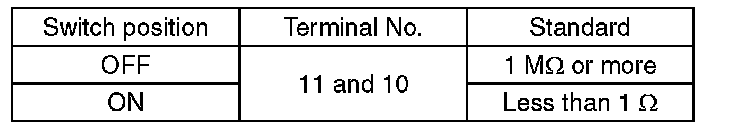

FRONT FOG LIGHT SWITCH Replace the
combination switch (light) if faulty.
