Front Oxygen (A/F) Sensor
Front Oxygen (A/F) SensorREMOVAL
1. Set the vehicle on a lift.

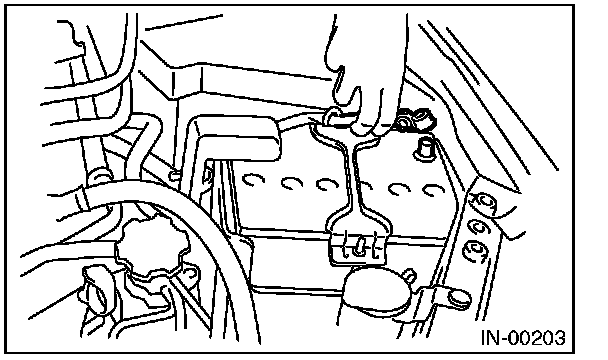

2. Disconnect the ground cable from battery.
3. Remove the air intake duct.

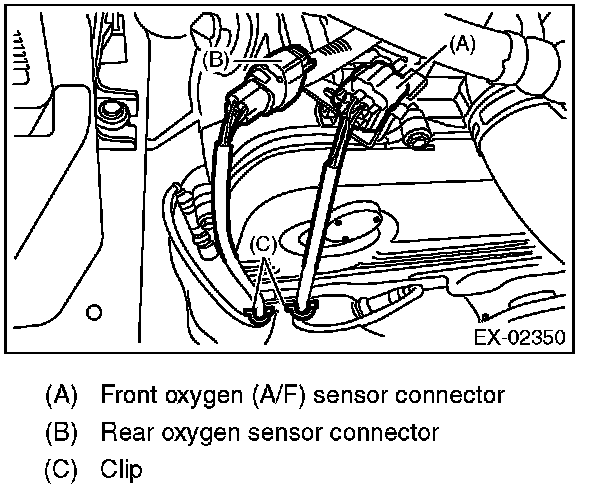

4. Remove the clip fastening the harness and disconnect the front oxygen (A/F) sensor connector.
5. Lift up the vehicle.
6. Remove the under cover.
7. Apply spray-type lubricant to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.

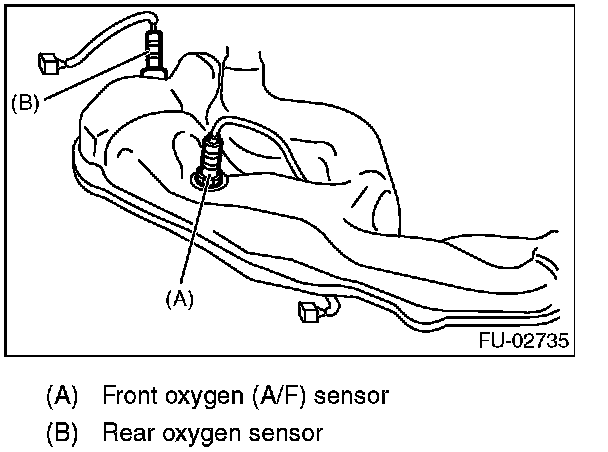

8. Remove the front oxygen (A/F) sensor.
CAUTION: When removing the front oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
INSTALLATION
CAUTION: If lubricant is spilt onto the exhaust pipe, wipe it off completely with cloth to avoid emission of smoke or causing a fire.
1. Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of front oxygen (A/F) sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to the protector of front oxygen (A/F) sensor.
Anti-seize compound: NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent

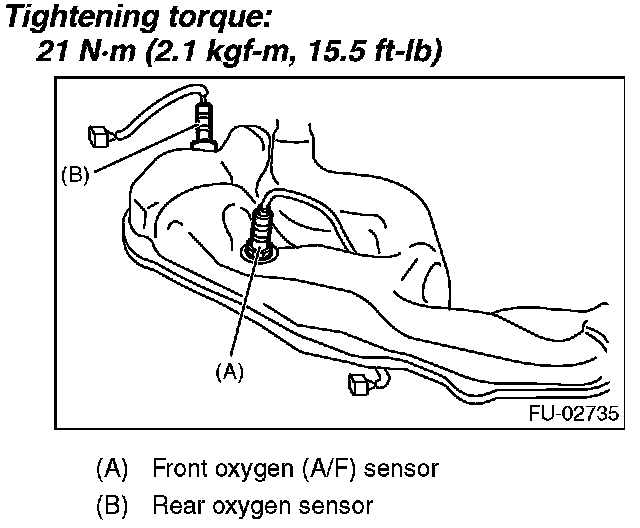

2. Install the front oxygen (A/F) sensor.
3. Install the under cover.
4. Lower the vehicle.

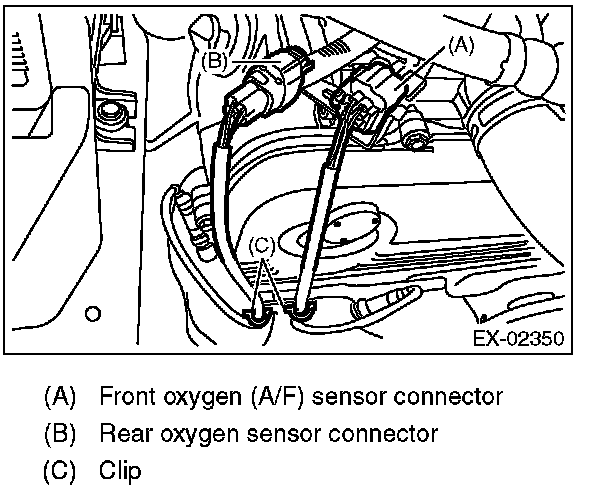

5. Connect the connector of front oxygen (A/F) sensor connector and fasten the harness with clips.

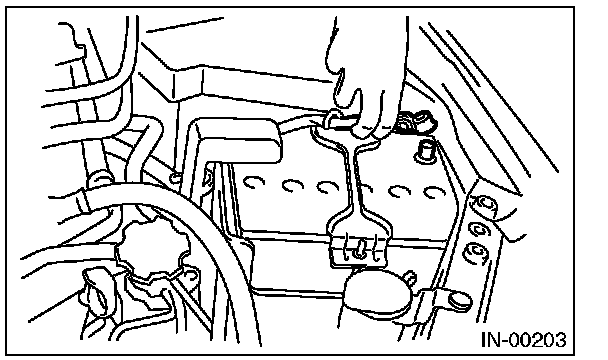

6. Connect the ground cable to battery.
