EGR Valve: Service and Repair
EGR ValveREMOVAL 1.

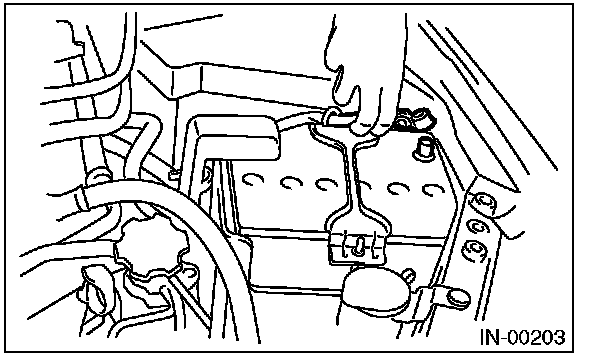

Disconnect the ground cable from battery.
2.
Disconnect the connector from
EGR valve.
3.

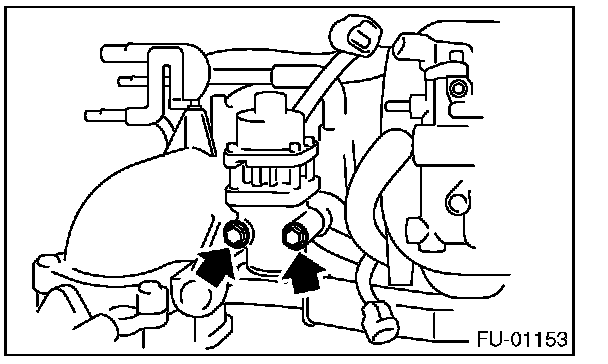

Remove the
EGR valve from intake manifold.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Use a new gasket.
Tightening torque: 19 N.m (1.9 kgf.m, 14.0 ft.lb)
