Check Sport Shift Indicator
CHECK SPORT SHIFT INDICATOR DIAGNOSIS: Output signal circuit of SPORT shift indicator is open or shorted.
TROUBLE SYMPTOM: ^
SPORT shift indicator does not display or remains displayed.
^
SPORT shift indicator display does not change.

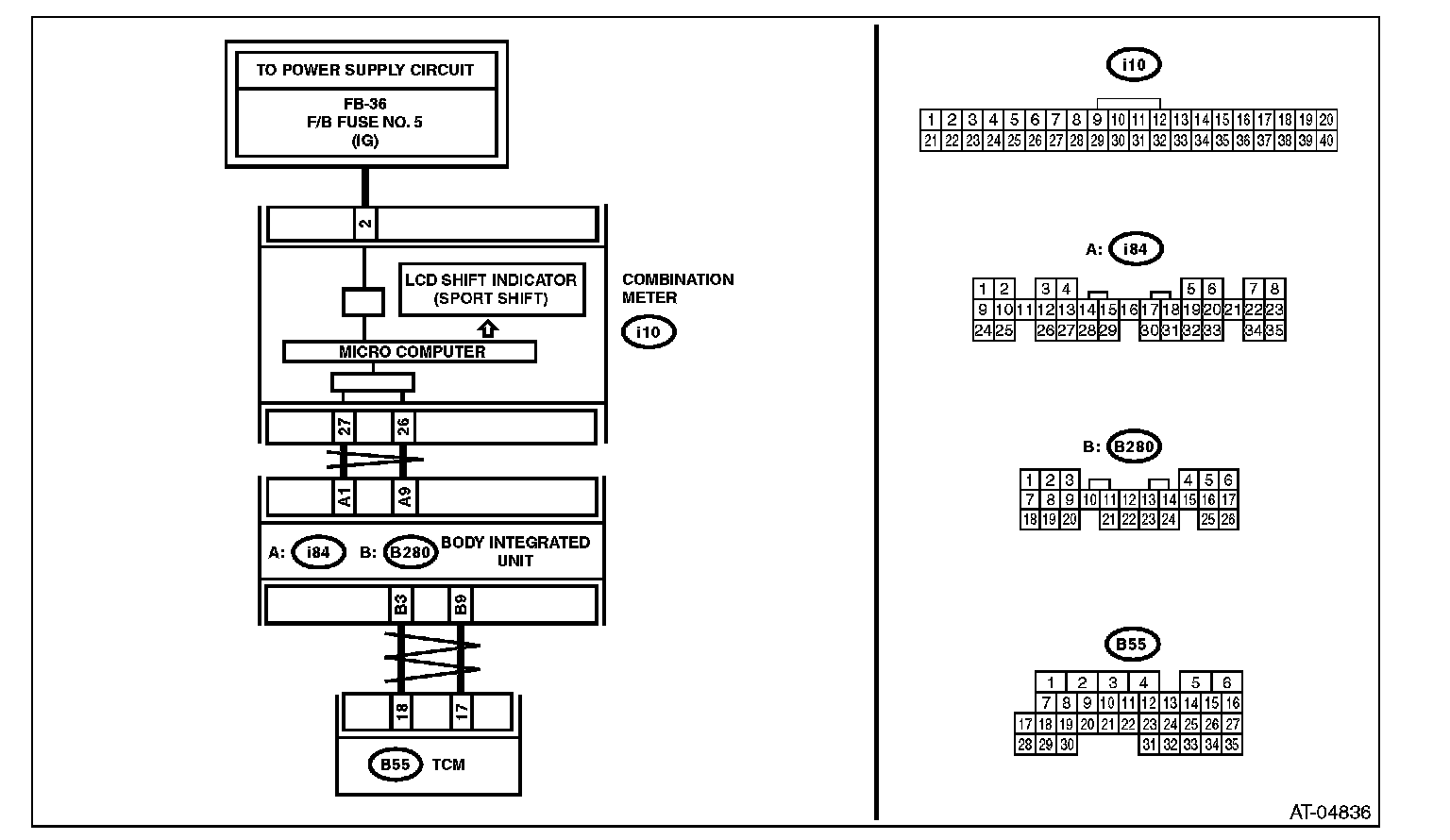

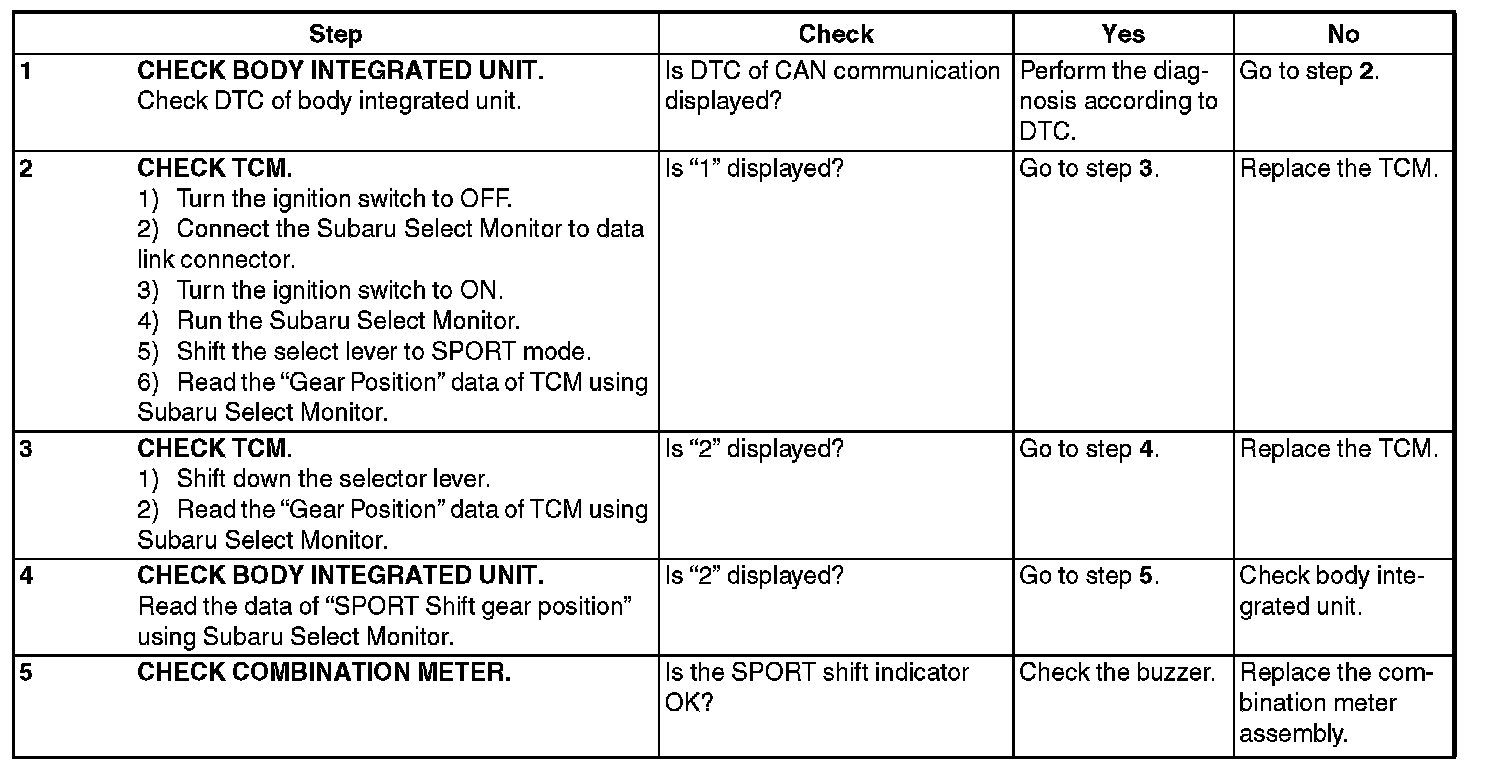

WIRING DIAGRAM:Step 1-Step 5:
