Check Sport Shift Switch

CHECK SPORT SHIFT SWITCH

DIAGNOSIS:
Input signal circuit of SPORT shift switch is open or shorted.

TROUBLE SYMPTOM:
Does not shift on manual mode.

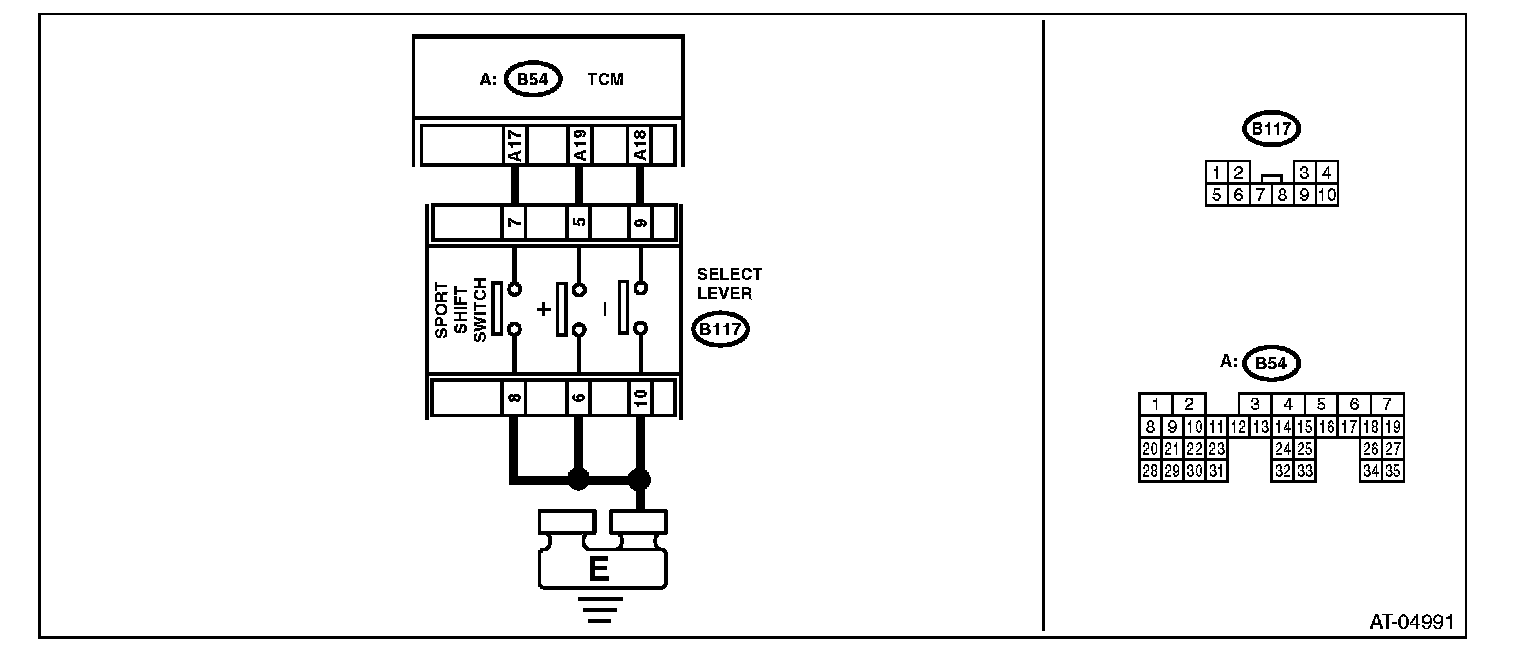

WIRING DIAGRAM:

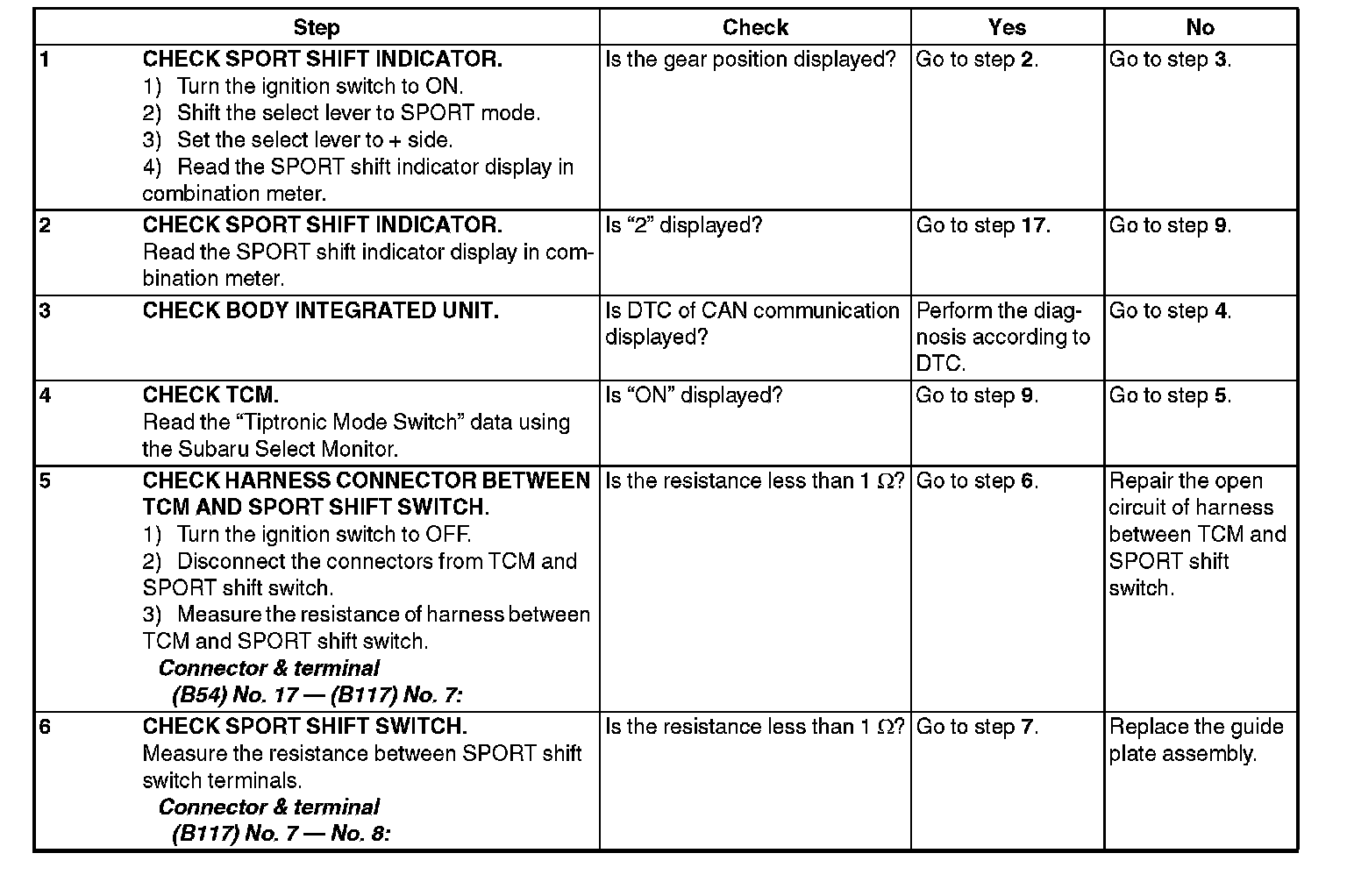

Step 1-Step 6:

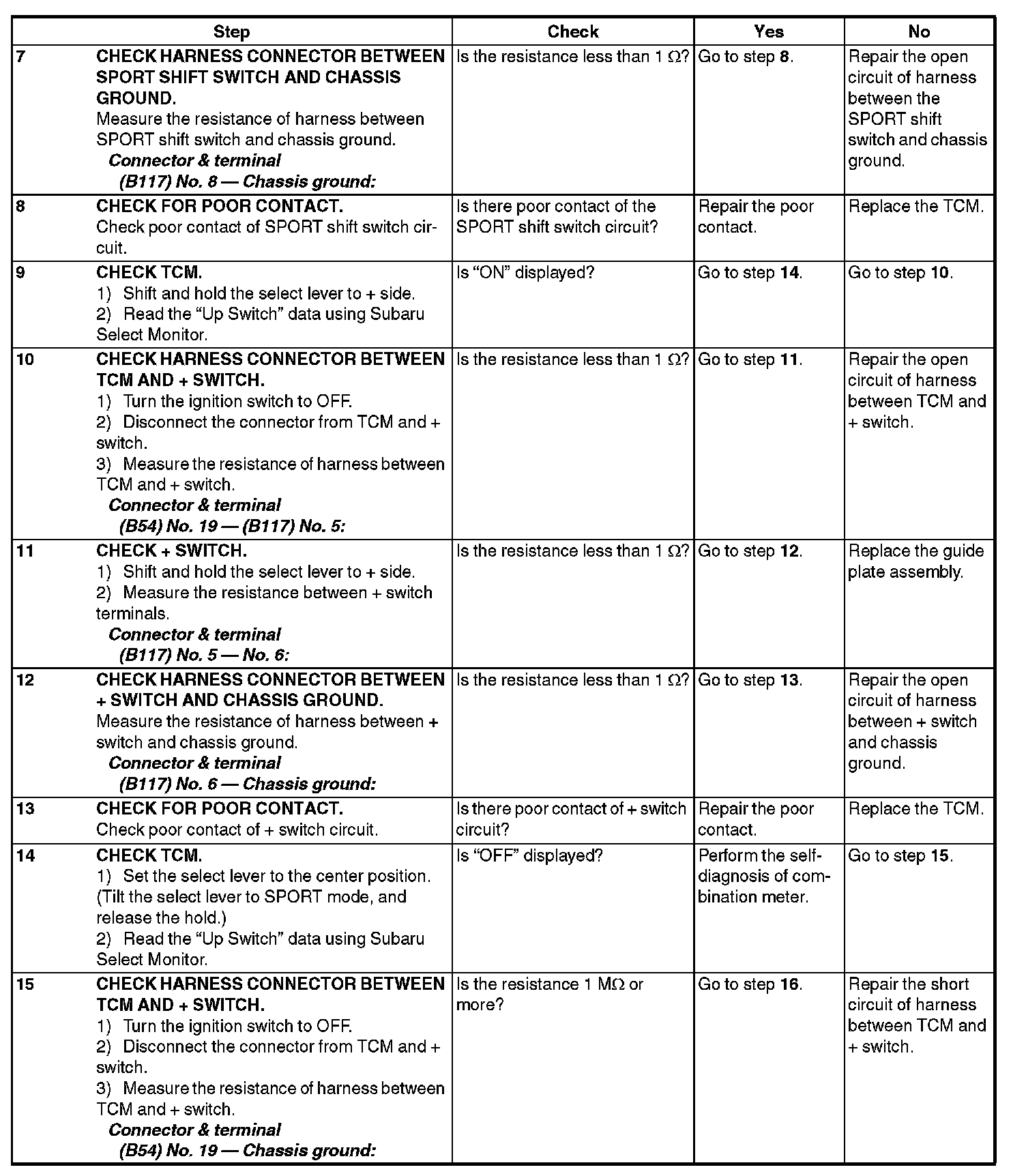

Step 7-Step 15:

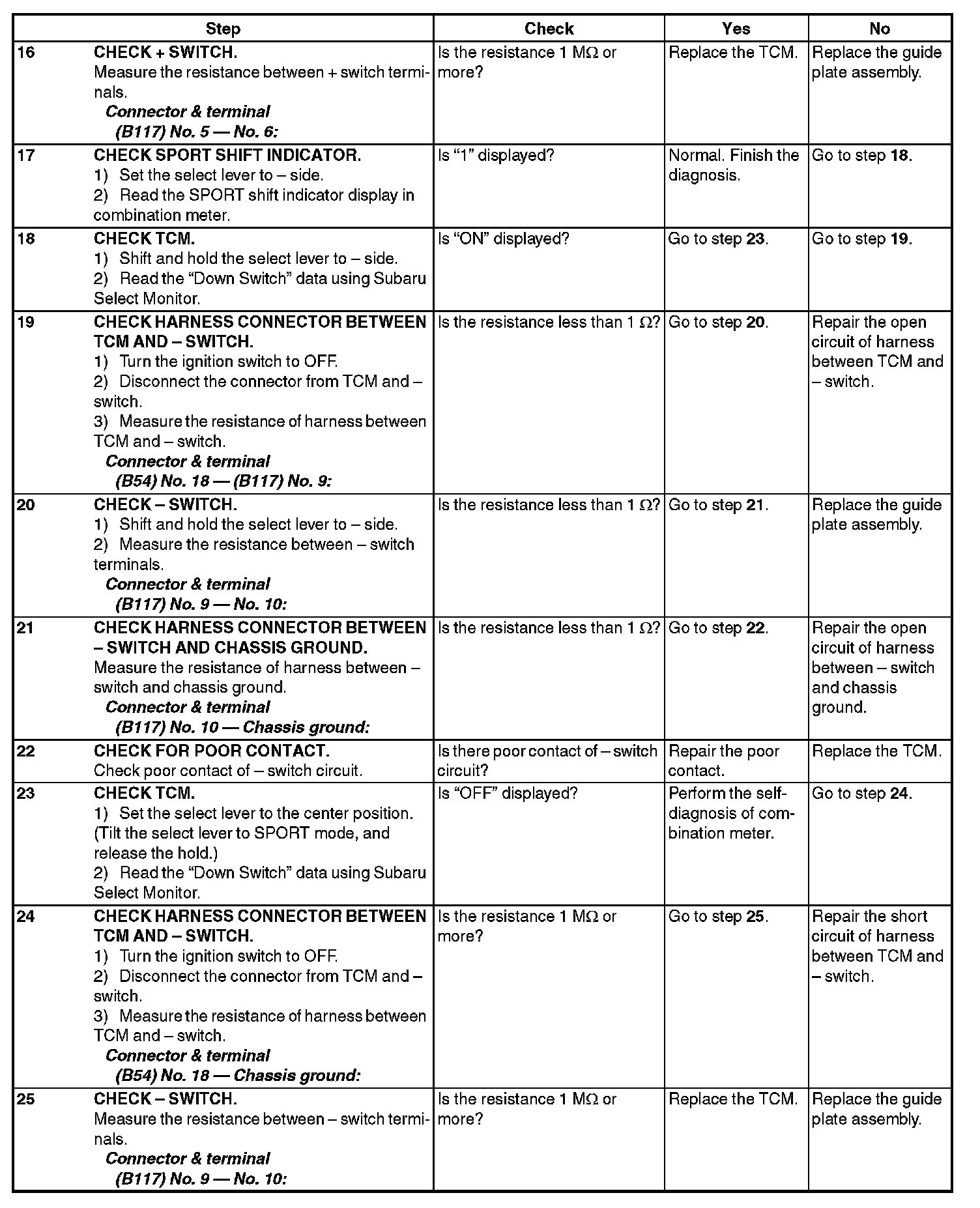

Step 16-Step 25:
