Transfer Clutch Pressure Test
Transfer Clutch Pressure TestINSPECTION

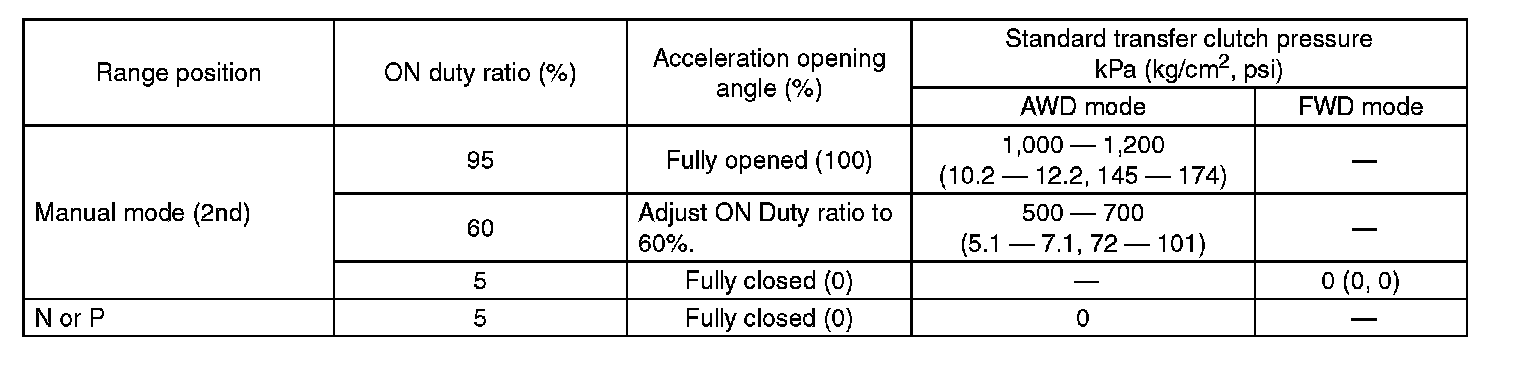

Check the transfer clutch pressure in accordance with the following chart in the same manner as line pressure.
ST 498897700 OIL PRESSURE ADAPTER SET
ST 498575400 OIL PRESSURE GAUGE ASSY
NOTE:
^ Before setting to FWD mode, install the spare fuse on the FWD mode switch.
^ If no oil pressure is produced or if it does not change in AWD mode, there may be a problem in the transfer duty solenoid or control valve body.
^ If oil pressure is produced in FWD mode, there is the same problem as the AWD mode.
