Wiper Switch: Service and Repair
Combination Switch (Wiper)REMOVAL 1.
Disconnect the ground cable from battery.
2.

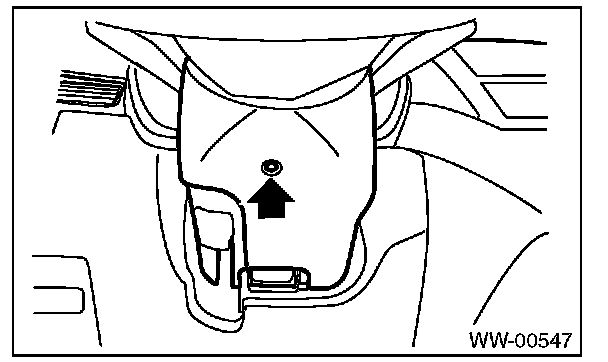

Remove the screws and remove the steering column cover lower.
3.

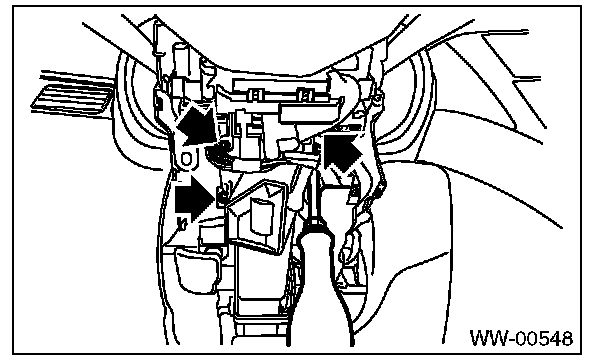

Remove the three mounting screws of steering column cover upper.
4.
Disconnect the connector from
wiper switch.
5.

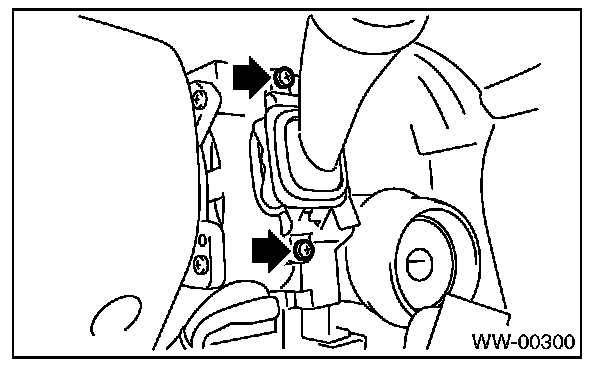

Remove the screws and then remove the
wiper switch.
INSTALLATIONInstall in the reverse order of removal.
