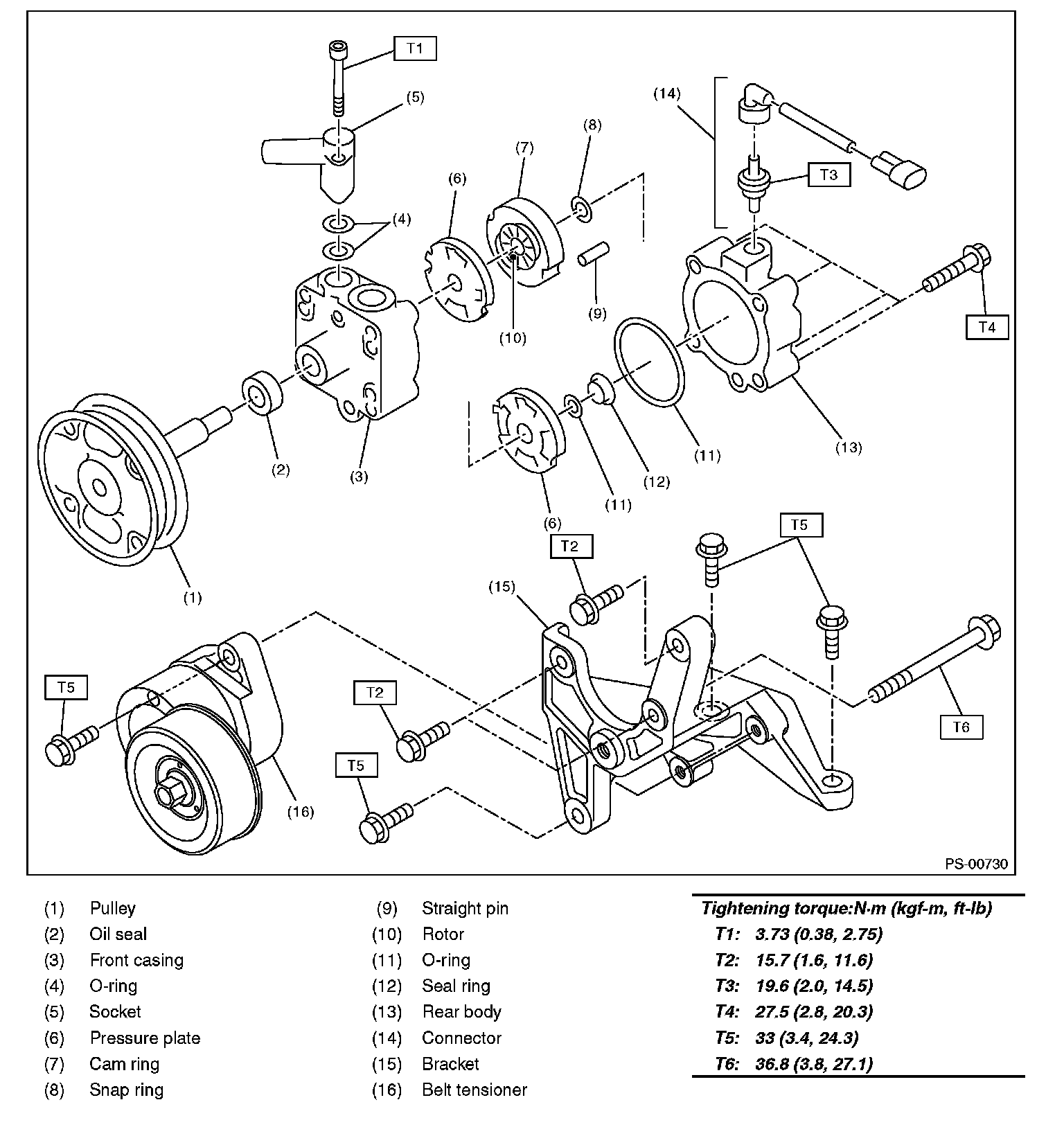

Power Steering Pump
Power Steering Pump
General Description
POWER ASSISTED SYSTEM (
POWER STEERING
)
OIL PUMP
